Same brandJohn Deere 6110R
The John Deere 6110R is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine with two turbochargers, giving it plenty of power. The engine is big for its class, with a very high displacement of 276 ci. This tractor is also quite heavy, weighing in at 12,390 lb, which is much more than most similar tractors. The 6110R comes with a PowerQuad Plus transmission that has 24 forward and 24 reverse gears. This gives the driver lots of options for different tasks. It has four-wheel drive and power steering, making it easy to handle in various conditions. The tractor has a closed center hydraulic system and can lift up to 7,755 lbs with its Category 3N hitch. It also has a good fuel efficiency of 0.449 lb/hp.hr, which means it won't use too much fuel while working.
Key specifications
- Category
- Utility
- Operating weight
- 12,390 lb
- Transmission
- PowerQuad Plus
Overview
About the John Deere 6110R
The John Deere 6110R is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine with two turbochargers, giving it plenty of power. The engine is big for its class, with a very high displacement of 276 ci. This tractor is also quite heavy, weighing in at 12,390 lb, which is much more than most similar tractors. The 6110R comes with a PowerQuad Plus transmission that has 24 forward and 24 reverse gears. This gives the driver lots of options for different tasks. It has four-wheel drive and power steering, making it easy to handle in various conditions. The tractor has a closed center hydraulic system and can lift up to 7,755 lbs with its Category 3N hitch. It also has a good fuel efficiency of 0.449 lb/hp.hr, which means it won't use too much fuel while working.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 6110R |
| Category | Utility tractor |
| Type | Front wheel assist (FWA) |
| Operating weight | 12,390lb(5,620 kg) |
Engine
| Make | John Deere |
|---|---|
| Cylinders | 4 |
| Displacement | 276ci(4.52 L) |
| Bore | 4.19in(106.4 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | PowerQuad Plus |
|---|---|
| Forward gears | 24 |
| Reverse gears | 24 |
Chassis & drive
| Chassis | Front wheel assist (FWA) |
|---|---|
| Drive | 4WD |
| Steering | Power |
Hydraulics
| Type | Closed Center |
|---|
Dimensions
| Operating weight | 12,390lb(5,620 kg) |
|---|
Category medians
6110R vs. Utility median
John Deere 6110R compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 276 ci | 183 ci | +51% | 81st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 12,390 lb | 5,303 lb | +134% | 91st |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,941–5,720 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

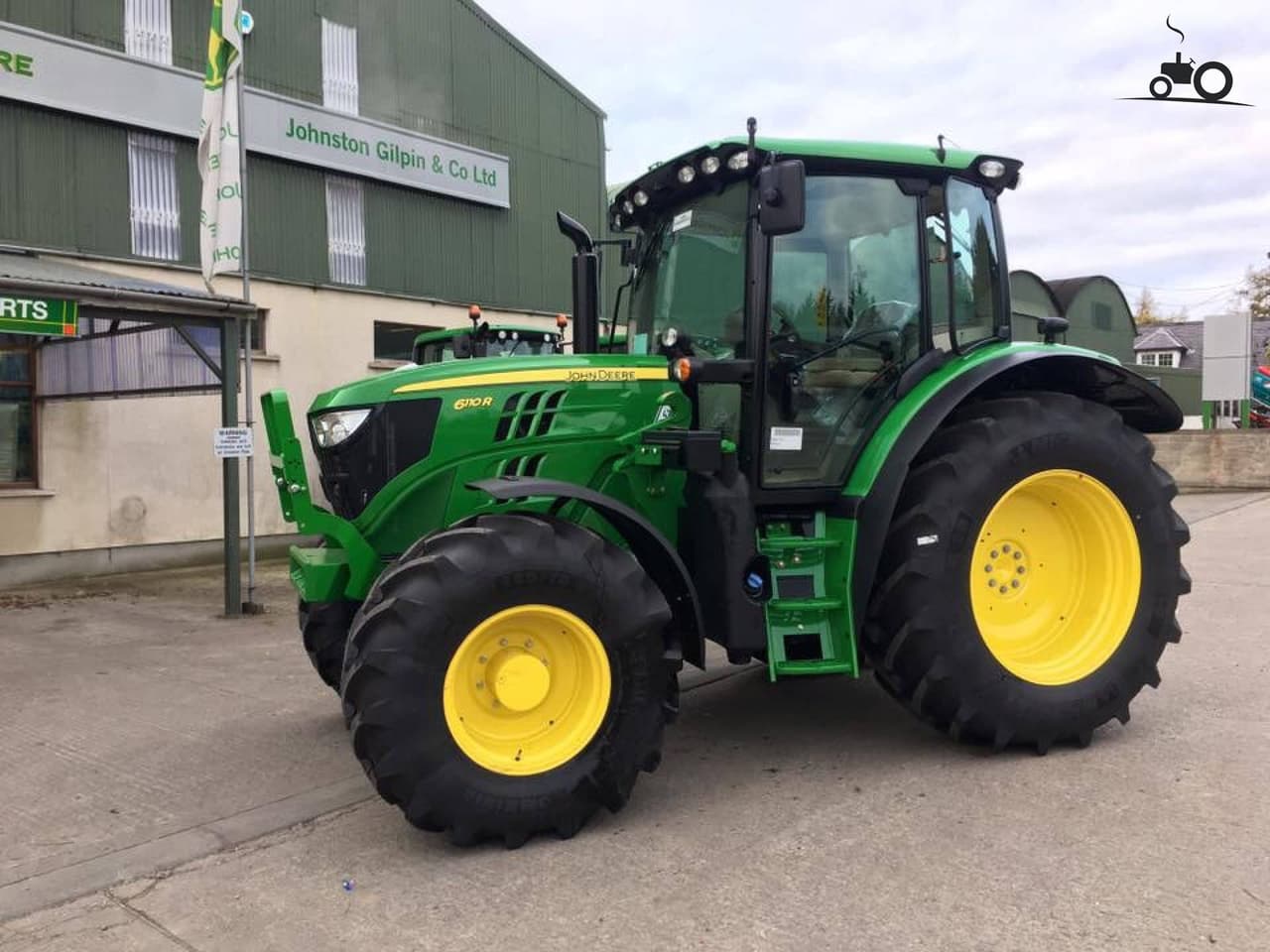

John Deere 6110R photos
FAQ
Frequently asked questions
What engine configuration does the John Deere 6110R use?
The John Deere 6110R is equipped with a 4-cylinder engine displacing 276 ci.
Which transmission does the John Deere 6110R use?
The John Deere 6110R is equipped with a PowerQuad Plus transmission with 24 forward gears.
What hydraulics does the John Deere 6110R have?
The John Deere 6110R uses a Closed Center hydraulic system.
What is the operating weight of the John Deere 6110R?
The John Deere 6110R has an operating weight of about 12,390 lb.
How do I maintain a John Deere 6110R?
Routine service for the John Deere 6110R covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
