John Deere 6715

John Deere 6715

Complete specifications and technical data for the John Deere 6715. Compare with similar tractors from John Deere and other manufacturers.

Quick Specs

Category

Row Crop

Operating Weight

11,045 lb

The John Deere 6715 is a powerful row crop tractor built from 2003 to 2007. It has a strong 6-cylinder diesel engine made by John Deere. The engine is turbocharged and liquid-cooled, with an above-ave...

Photo Gallery

Image Gallery

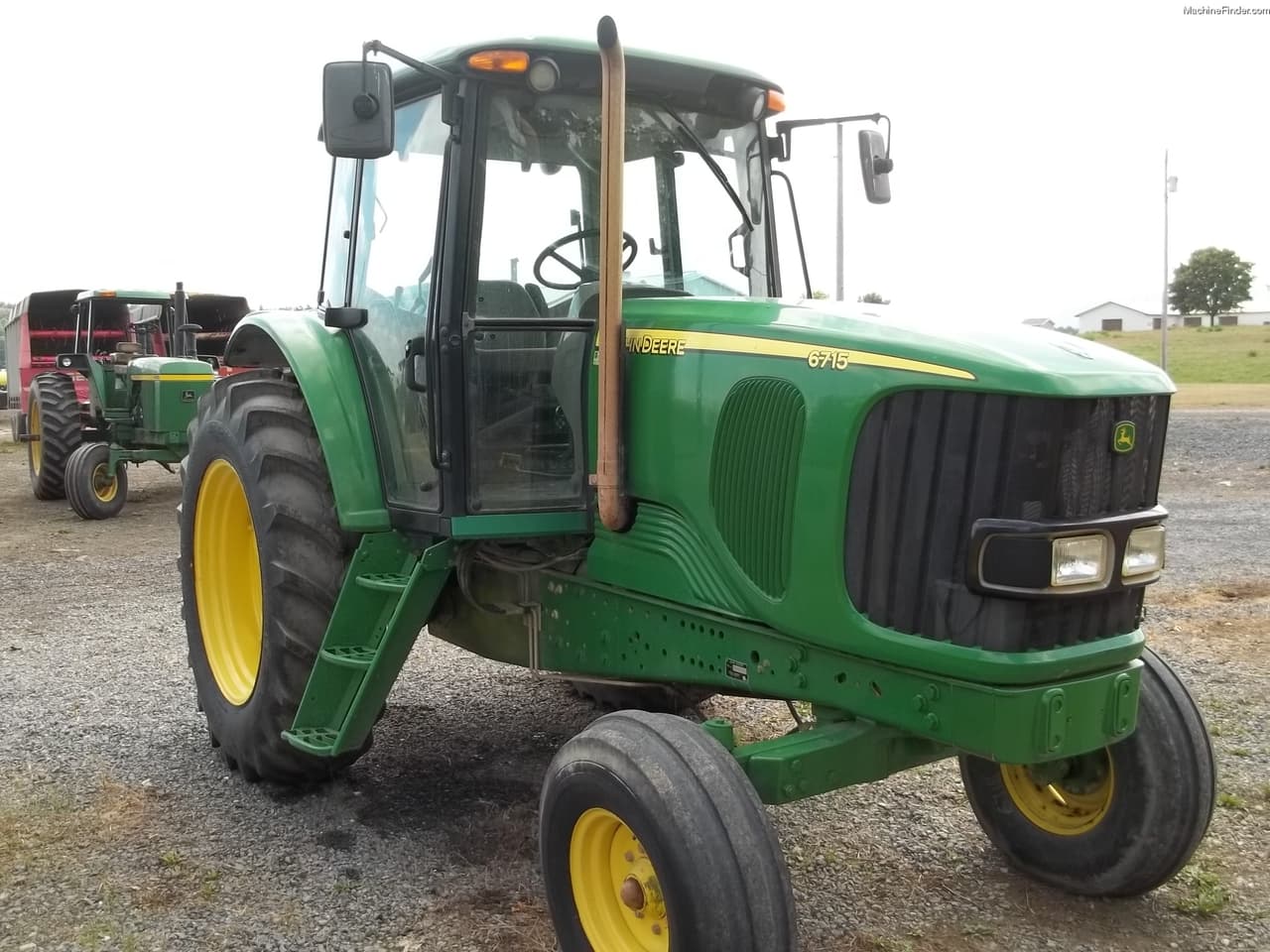

John Deere 6715 Tractor
John Deere 6715 Tractor
John Deere 6715 Tractor
John Deere 6715 Tractor
John Deere 6715 Tractor

Specifications

Manufacturer
John Deere
Model
6715
Category
Row Crop
Manufacturing Years
2003 - 2007
Manufacturer
John Deere
Model
6068
Rated RPM
2,300RPM
Cylinders
6
Displacement
414ci
Bore
4.19in
Stroke
5in

Engine Power Output Comparison of John Deere 6715 vs. Other Row Crop Tractors

Loading Chart...

Length
177.2in
Height
107.5in
Wheelbase
104.3in
Operating Weight
11,045lb

Operating Weight Comparison of John Deere 6715 vs. Other Row Crop Tractors

Loading Chart...

System Type
Constant-flow load-sensing
Pump Flow Capacity
16.5gpm
Pressure
2,320psi
Hydraulic System Pressure
2,320psi
Steering Type
Hydrostatic power
Type
Independent with electro-hydraulic wet disc clutch
Speed 1
540rpm
PTO Speed (2nd)
1,000rpm
Speed 2
1,000rpm
Rear
38
Front Tread Width
59.7in
Rear Tread
59.7in
Front Tread Adjustment
59.7-79.4 in
Rear Tread Adjustment
59.7-75.4 in
Adjustable Tread
No
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity
5,430lb
Coolant
19qts
Type
Two-post foldable ROPS or Cab (ComfortVantage Cab optional with air-conditioning)

Compare to Other Tractors

Frequently Asked Questions

What years was the John Deere 6715 manufactured?

The John Deere 6715 was manufactured from 2003 - 2007.

How many cylinders does the John Deere 6715 have?

The John Deere 6715 is equipped with a 6-cylinder engine.

What is the operating weight of the John Deere 6715?

The operating weight of the John Deere 6715 is approximately 11,045 lb.

What type of hydraulic system does the John Deere 6715 use?

The John Deere 6715 uses a Constant-flow load-sensing hydraulic system.

What size tires does the John Deere 6715 use?

The John Deere 6715 comes with standard front tires and 38 rear tires.

What hitch category is the John Deere 6715?

The John Deere 6715 is a Category II hitch.

What maintenance does the John Deere 6715 require?

Regular maintenance for the John Deere 6715 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
