John Deere 730
The John Deere 730 is a row crop tractor made from 1958 to 1961 in Waterloo, Iowa. It's part of John Deere's Two-Cylinder 30 series. This tractor has a 2WD drive type and manual steering. It uses a basic gear transmission with 6 forward gears and 1 reverse gear. The 730 has a gasoline engine made by John Deere. It's a 2-cylinder engine that's liquid-cooled and naturally aspirated. The engine size is below average compared to other tractors. This tractor is quite light, weighing 6,790 lb. It has a Category II hitch and an independent rear PTO that spins at 540 rpm. The 730 has an open operator station and uses electric starting. It can be fitted with a John Deere 45 loader if needed.
Key specifications
- Category
- Row Crop
- Operating weight
- 6,790 lb
- Transmission
- Unsynchronized Gear
Overview
About the John Deere 730
The John Deere 730 is a row crop tractor made from 1958 to 1961 in Waterloo, Iowa. It's part of John Deere's Two-Cylinder 30 series. This tractor has a 2WD drive type and manual steering. It uses a basic gear transmission with 6 forward gears and 1 reverse gear. The 730 has a gasoline engine made by John Deere. It's a 2-cylinder engine that's liquid-cooled and naturally aspirated. The engine size is below average compared to other tractors. This tractor is quite light, weighing 6,790 lb. It has a Category II hitch and an independent rear PTO that spins at 540 rpm. The 730 has an open operator station and uses electric starting. It can be fitted with a John Deere 45 loader if needed.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 730 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1958–1961 |
| Operating weight | 6,790lb(3,080 kg) |
Engine
| Make | John Deere |
|---|---|
| Model | John Deere |
| Cylinders | 2 |
| Displacement | 360.5ci(5.91 L) |
| Bore | 5.98in(151.9 mm) |
| Stroke | 6.38in(162.1 mm) |
Transmission
| Type | Unsynchronized Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Differential Mechanical Drum |
| Cab | Open |
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | Independent Rear PTO |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 135in(3,429 mm) |
|---|---|
| Width | 86.6in(2,200 mm) |
| Height | 88.2in(2,240 mm) |
| Operating weight | 6,790lb(3,080 kg) |
Capacities
| Cooling system | 7.25gal(27.44 L) |
|---|
Category medians
730 vs. Row Crop median
John Deere 730 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 361 ci | 391 ci | -8% | 43rd |
| Cylinders | 2 | 6 | -67% | 1st |
| Forward Gears | 6 | 16 | -62% | 11th |
| Operating Weight | 6,790 lb | 12,307 lb | -45% | 15th |
| Length | 135 in | 180 in | -25% | 9th |
| Width | 86.6 in | 91.2 in | -5% | 40th |
| Height | 88.2 in | 114 in | -22% | 18th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

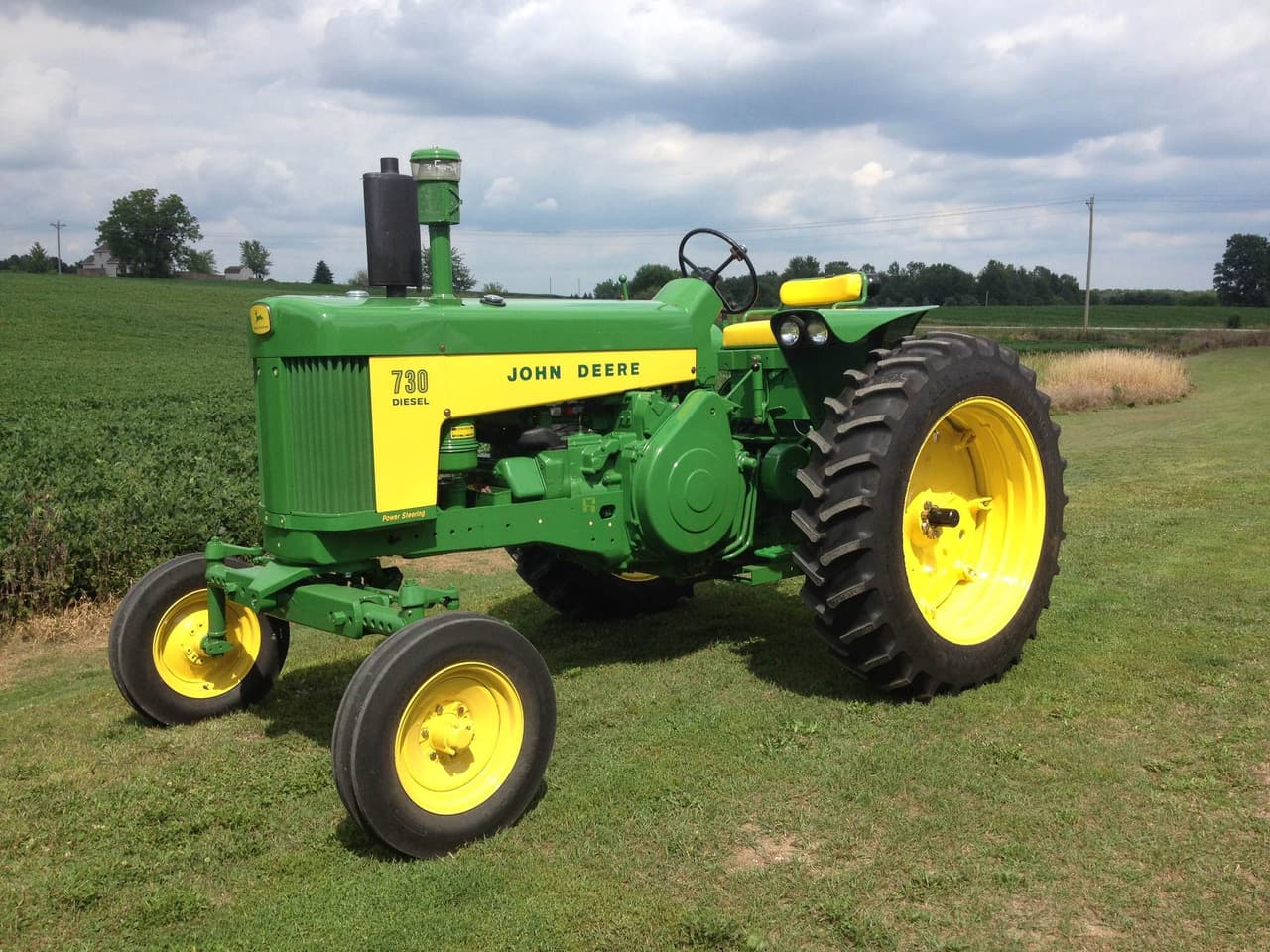

John Deere 730 photos
FAQ
Frequently asked questions
When was the John Deere 730 made?
The John Deere 730 was manufactured from 1958 to 1961.
Which transmission does the John Deere 730 use?
The John Deere 730 is equipped with an Unsynchronized Gear transmission with 6 forward gears.
What hydraulics does the John Deere 730 have?
The John Deere 730 uses an Open Center hydraulic system.
What three-point hitch category does the John Deere 730 use?
The John Deere 730 has a Category II three-point hitch.
What engine configuration does the John Deere 730 use?
The John Deere 730 is equipped with a 2-cylinder engine displacing 360.5 ci.
What is the operating weight of the John Deere 730?
The John Deere 730 has an operating weight of about 6,790 lb.
How do I maintain a John Deere 730?
Routine service for the John Deere 730 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
