AgriculturalPerformance profile
John Deere 8330
The John Deere 8330 is a powerful tractor built for serious farm work. It has a strong engine made by John Deere that can produce 275 horsepower. This engine has 6 cylinders and uses turbocharging to boost its power. The tractor can hold a lot of fuel, with a big 180-gallon tank that lets you work for a long time without stopping. This tractor is designed to handle heavy loads. It has a strong hitch that can lift up to 14,189 pounds, which is great for big implements. The 8330 also has a useful Power Take-Off (PTO) that can provide 226.6 horsepower to run other farm equipment. It has a Powershift transmission with 16 forward gears and 4 reverse gears, giving you lots of options for different tasks. The hydraulic system is strong too, with a pump that can move 44 gallons of fluid per minute at high pressure, making it great for operating hydraulic tools.
ManufacturerJohn DeerePower275 hpEngine6-cylTransPowershift
Quick specs
- Category
- Agricultural
- Engine Power Output
- 275hp
- PTO HP
- 226.6
- Transmission
- Powershift
At a glance
How the 8330 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
275 hp · 91st
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 8330 ranks at the 91st percentile for engine power among recorded agricultural tractors.
Overview
About the John Deere 8330
The John Deere 8330 is a powerful tractor built for serious farm work. It has a strong engine made by John Deere that can produce 275 horsepower. This engine has 6 cylinders and uses turbocharging to boost its power. The tractor can hold a lot of fuel, with a big 180-gallon tank that lets you work for a long time without stopping. This tractor is designed to handle heavy loads. It has a strong hitch that can lift up to 14,189 pounds, which is great for big implements. The 8330 also has a useful Power Take-Off (PTO) that can provide 226.6 horsepower to run other farm equipment. It has a Powershift transmission with 16 forward gears and 4 reverse gears, giving you lots of options for different tasks. The hydraulic system is strong too, with a pump that can move 44 gallons of fluid per minute at high pressure, making it great for operating hydraulic tools.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 8330 |
| Category | Agricultural tractor |
Engine
| Make | John Deere |
|---|---|
| Model | 2240 |
| Power | 275hp |
| Cylinders | 6 |
| Displacement | 549.3ci |
Transmission
| Type | Powershift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 4 |
Hydraulics
| Pump flow | 44gpm |
|---|---|
| Pressure | 2,990psi |
Power take-off
| PTO power | 226.6hp |
|---|
Dimensions
| Wheelbase | 121.2in |
|---|
Tires
| Front | 420/90R30 |
|---|---|
| Rear | 480/80R46 |
Capacities
| Fuel tank | 180gal |
|---|
Head to head
8330 vs. Agricultural median
How the John Deere 8330 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 275 hp | 110 hp | +150% | 91st |
| Engine Displacement | 549 ci | 336 ci | +64% | 90th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 16 | 16 | at median | 50th |
| 3-Point Hitch Capacity | 14,189 lb | 12,126 lb | +17% | 56th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 93–1,130 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere WA-17 | 280 hp | 28,280 lb | — | Compare → |
| John Deere 8320RT | 261.34 hp | 35,465 lb | — | Compare → |
| John Deere 8520T | 255.96 hp | 27,280 lb | — | Compare → |
| John Deere 6R 250 | 246.8 hp | 21,270 lb | — | Compare → |
| John Deere 8430 250 PTO hp - PST | 305 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 9150 | 280 hp | 23,000 lb | — | Compare → |
| AGCO DT225B | 266.3 hp | 25,795 lb | 2009–2010 | Compare → |
| CaseIH 4694 | 261 hp | 22,310 lb | — | Compare → |
| AGCO DT220A | 260 hp | 19,951 lb | 2005–2008 | Compare → |
| AGCO DT240A | 290 hp | 19,951 lb | 2005–2008 | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

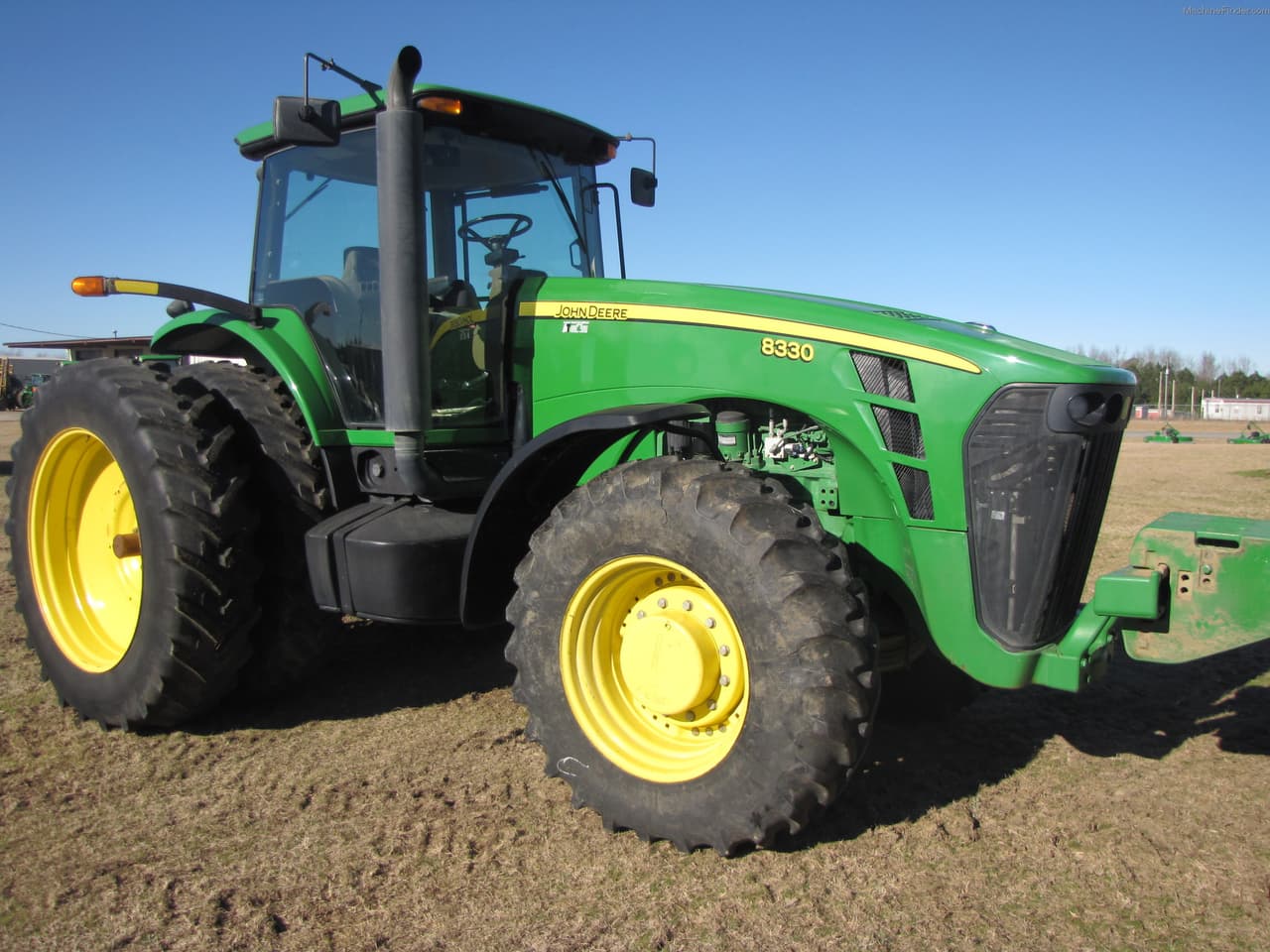

John Deere 8330 photos
FAQ
Common questions
What is the engine power output of the John Deere 8330?
Rated engine output for the John Deere 8330 is 275 hp, delivered by a 6-cylinder engine. The engine displaces 549.3 ci.
What is the power take-off (PTO) output of the John Deere 8330?
The John Deere 8330 has a PTO power rating of 226.6 hp.
How much fuel does the John Deere 8330 hold?
The John Deere 8330 has a fuel capacity of 180 gal.
Which transmission does the John Deere 8330 use?
The John Deere 8330 is equipped with a Powershift transmission with 16 forward gears.
What are the factory tire sizes for the John Deere 8330?
The John Deere 8330 comes with 420/90R30 front tires and 480/80R46 rear tires.
How do I maintain a John Deere 8330?
Routine service for the John Deere 8330 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
