Same brandJohn Deere 8530
The John Deere 8530 is a powerful row crop tractor built from 2006 to 2009. It has a 4WD drive system and a strong 6-cylinder diesel engine made by John Deere. This engine is very big for tractors, with 549 cubic inches of space inside. It can make 360 horsepower, which is a lot of power for farm work. The tractor has an infinitely variable transmission, which means it can change speeds smoothly without set gears. This tractor is big and heavy, weighing 26,800 pounds. It has a CommandView cab for the driver to sit in comfortably. The 8530 can lift very heavy things with its rear hitch, up to 18,325 pounds. It also has a PTO that can spin at 1000 rpm for running farm tools. The fuel tank is large, holding 179.9 US gallons of diesel. The hydraulic system can pump 31.7 gallons of fluid per minute, which is good for running big farm equipment. Overall, the John Deere 8530 is a very capable tractor for serious farming work.

Key specifications
- Category
- Row Crop
- Engine power
- 360hp
- Operating weight
- 26,800 lb
- Transmission
- Infinitely Variable Transmission (IVT)
Category comparison
8530 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
This model
The 8530 ranks at the 97th percentile for engine power among recorded row crop tractors.
Overview
About the John Deere 8530
The John Deere 8530 is a powerful row crop tractor built from 2006 to 2009. It has a 4WD drive system and a strong 6-cylinder diesel engine made by John Deere. This engine is very big for tractors, with 549 cubic inches of space inside. It can make 360 horsepower, which is a lot of power for farm work. The tractor has an infinitely variable transmission, which means it can change speeds smoothly without set gears. This tractor is big and heavy, weighing 26,800 pounds. It has a CommandView cab for the driver to sit in comfortably. The 8530 can lift very heavy things with its rear hitch, up to 18,325 pounds. It also has a PTO that can spin at 1000 rpm for running farm tools. The fuel tank is large, holding 179.9 US gallons of diesel. The hydraulic system can pump 31.7 gallons of fluid per minute, which is good for running big farm equipment. Overall, the John Deere 8530 is a very capable tractor for serious farming work.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 8530 |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2006–2009 |
| Operating weight | 26,800lb(12,160 kg) |
Engine
| Make | John Deere |
|---|---|
| Model | 6090HF485 |
| Power | 360hp(268.5 kW) |
| Cylinders | 6 |
| Displacement | 549ci(9 L) |
| Bore | 4.66in(118.4 mm) |
| Stroke | 5.35in(135.9 mm) |
Transmission
| Type | Infinitely Variable Transmission (IVT) |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Brakes | Hydraulic wet disc |
| Cab | CommandView cab |
Hydraulics
| Type | Closed center pressure-flow compensating PFC |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 1,000rpm |
Dimensions
| Length | 219.1in(5,565 mm) |
|---|---|
| Height | 122.9in(3,122 mm) |
| Operating weight | 26,800lb(12,160 kg) |
Capacities
| Cooling system | 10.58gal(40.05 L) |
|---|
Closest alternatives
8530 compared with the nearest models by horsepower
The closest row crop models to the John Deere 8530 by rated horsepower are the Versatile 360 and the John Deere 8360R. The Versatile 360 matches it on rated power and weighs 2,860 lb less, carrying 67 lb per horsepower against 74 lb. The John Deere 8360R makes 4.6 hp less and weighs 1,420 lb more. It entered production in 2011, 5 years after the 8530.
| Spec | John Deere 8530 | Versatile 360 | John Deere 8360R |
|---|---|---|---|
| Engine power | 360 hp268.5 kW | 360 hp268.5 kW | 355.4 hp265 kW |
| Operating weight | 26,800 lb12,156 kg | 23,945 lb10,861 kg | 28,220 lb12,800 kg |
| Weight per hp | 74 lb/hp45 kg/kW | 67 lb/hp40 kg/kW | 79 lb/hp48 kg/kW |
| Displacement | 549 ci9 L | 543 ci8.9 L | 548 ci8.98 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Infinitely Variable Transmission (IVT) | Full power shift | Infinitely variable transmission (IVT) with four mechanical ranges and automatic shifting between ranges |
| Drive | 4WD | 4WD | 4WD |
| Years built | 2006-2009 | - | 2011-2013 |
Calculators
Calculators for the 8530
PTO power
About 299 to 324 PTO hp
Estimated from the 360 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 360 hp tractor can run
Maximum size is about a 43 ft rotary cutter or a 36.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
87 lb per PTO hp as listed
Heavy draft work calls for 110 to 125 lb/hp. The calculator gives the ballast to add.
Units
360 hp is 268.5 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the John Deere 8530
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the John Deere 6090HF485Amazon
Fits the John Deere 6090HF485 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the John Deere 6090HF485Amazon
Fits the John Deere 6090HF485 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the John Deere 6090HF485Amazon
Fits the John Deere 6090HF485 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the John Deere 6090HF485Amazon
Fits the John Deere 6090HF485 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- John Deere 8530 service and repair manualseManualOnline
Digital manuals. Built 2006 to 2009. Check the serial number range on the listing.
- John Deere 8530 operator's manualAmazon
Printed and reprint manuals. Built 2006 to 2009. Check the serial number range on the listing.
- John Deere 8530 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
8530 vs. Row Crop median
John Deere 8530 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 360 hp | 138 hp | +161% | 97th |
| Engine Displacement | 549 ci | 391 ci | +40% | 98th |
| Cylinders | 6 | 6 | at median | 50th |
| Operating Weight | 26,800 lb | 12,307 lb | +118% | 96th |
| Length | 219 in | 180 in | +22% | 90th |
| Height | 123 in | 114 in | +8% | 80th |
| 3-Point Hitch Capacity | 18,325 lb | 11,023 lb | +66% | 82nd |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 279–1,417 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

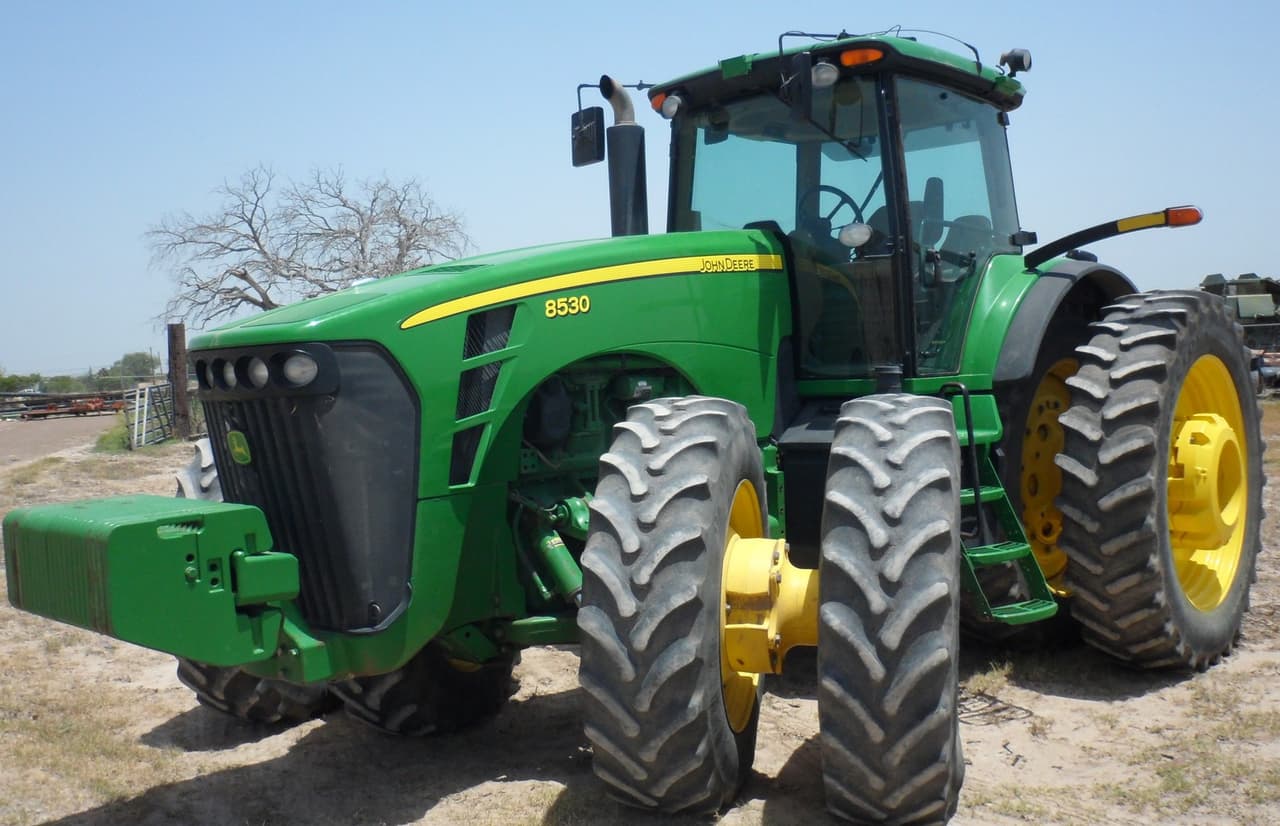

John Deere 8530 photos



FAQ
Frequently asked questions
What years was the John Deere 8530 manufactured?
Production of the John Deere 8530 ran from 2006 through 2009.
What three-point hitch category does the John Deere 8530 use?
The John Deere 8530 has a Category Category 3 three-point hitch rated to lift 18,325 lb.
How powerful is the John Deere 8530?
The John Deere 8530 has an engine power output of 360 hp. It is powered by a 6-cylinder engine displacing 549 ci.
What is the working weight of the John Deere 8530?
The operating weight of the John Deere 8530 is approximately 26,800 lb.
What type of transmission does the John Deere 8530 have?
The John Deere 8530 uses an Infinitely Variable Transmission (IVT) transmission.
What hydraulics does the John Deere 8530 have?
The John Deere 8530 uses a Closed center pressure-flow compensating PFC hydraulic system.
What routine service does the John Deere 8530 need?
Regular maintenance for the John Deere 8530 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
