UtilityPerformance profile
Kioti CS2520
The Kioti CS2520 is a compact utility tractor built for small farms and big yards. It has a 4-wheel drive system and power steering, making it easy to handle in tight spaces. The tractor uses a hydrostatic transmission, which means you can change speeds smoothly without shifting gears. Under the hood, the CS2520 has a Daedong diesel engine with three cylinders. It's liquid-cooled and naturally aspirated, producing 24.5 horsepower at 3200 rpm. The engine is small compared to many other tractors, but it runs at a very high speed. This tractor is lightweight at 1554 pounds, which is below average for its class. It measures 99.3 inches long, 45.9 inches wide, and 88 inches tall with the roll-over protection system. The CS2520 comes with a Category I hitch at the back for attaching various tools and implements.
ManufacturerKiotiPower24.5 hpEngine3-cylTransHydrostatic
Quick specs
- Category
- Utility
- Engine Power Output
- 25hp
- Operating Weight
- 1,554 lb
- Transmission
- Hydrostatic
At a glance
How the CS2520 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
24.5 hp · 15th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The CS2520 ranks at the 15th percentile for engine power among recorded utility tractors.
Overview
About the Kioti CS2520
The Kioti CS2520 is a compact utility tractor built for small farms and big yards. It has a 4-wheel drive system and power steering, making it easy to handle in tight spaces. The tractor uses a hydrostatic transmission, which means you can change speeds smoothly without shifting gears. Under the hood, the CS2520 has a Daedong diesel engine with three cylinders. It's liquid-cooled and naturally aspirated, producing 24.5 horsepower at 3200 rpm. The engine is small compared to many other tractors, but it runs at a very high speed. This tractor is lightweight at 1554 pounds, which is below average for its class. It measures 99.3 inches long, 45.9 inches wide, and 88 inches tall with the roll-over protection system. The CS2520 comes with a Category I hitch at the back for attaching various tools and implements.
Full specifications
Every recorded spec
General
| Manufacturer | Kioti |
|---|---|
| Model | CS2520 |
| Category | Utility tractor |
| Type | 4WD |
| Operating weight | 1,554lb |
Engine
| Make | Daedong |
|---|---|
| Model | 3C100LFH |
| Power | 24.5hp |
| Cylinders | 3 |
| Displacement | 61.5ci |
| Bore | 2.95in |
| Stroke | 2.99in |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Drive | 4WD |
|---|---|
| Steering | Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 99.3in |
|---|---|
| Width | 45.9in |
| Height | 88in |
| Operating weight | 1,554lb |
Head to head
CS2520 vs. Utility median
How the Kioti CS2520 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 24.5 hp | 55 hp | -55% | 15th |
| Engine Displacement | 61.5 ci | 183 ci | -66% | 7th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Operating Weight | 1,554 lb | 5,303 lb | -71% | 7th |
| Length | 99.3 in | 137 in | -27% | 8th |
| Width | 45.9 in | 66 in | -30% | 11th |
| Height | 88 in | 94.1 in | -6% | 37th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Kioti tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kioti CK2510 | 24.5 hp | 2,260 lb | 2014–2018 | Compare → |
| Kioti CK2610 | 24.5 hp | 2,646 lb | 2016+ | Compare → |
| Kioti CK2620SE | 24.5 hp | 3,397 lb | — | Compare → |
| Kioti CS2410 | 24.5 hp | 1,485 lb | — | Compare → |
| Kioti CS2510 | 24.5 hp | 1,485 lb | 2016+ | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bobcat CT1025 | 24.5 hp | 1,488 lb | — | Compare → |
| AGCO ST25 | 24.3 hp | 1,588 lb | — | Compare → |
| Ag King AK2840 | 24 hp | 2,900 lb | — | Compare → |
| Allis Chalmers 5020 | 25 hp | 2,060 lb | 1977–1985 | Compare → |
| Allis Chalmers FD3 | 25 hp | 3,150 lb | — | Compare → |
Explore
Kioti siblings
Explore
Similar-spec models
Gallery

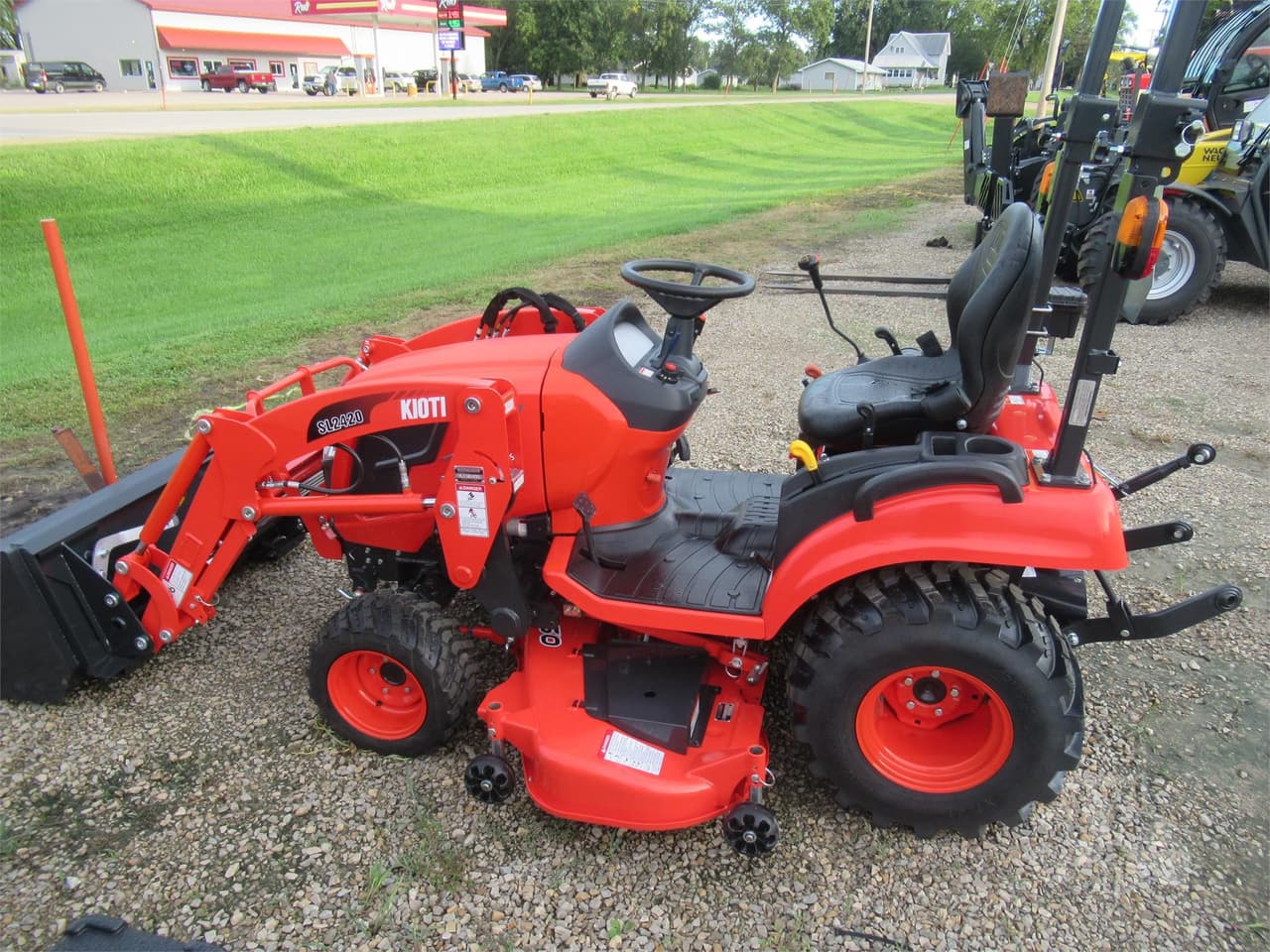

Kioti CS2520 photos
FAQ
Common questions
How powerful is the Kioti CS2520?
The Kioti CS2520 has an engine power output of 24.5 hp. It is powered by a 3-cylinder engine displacing 61.5 ci.
What hydraulics does the Kioti CS2520 have?
The Kioti CS2520 uses an Open Center hydraulic system.
What is the working weight of the Kioti CS2520?
The operating weight of the Kioti CS2520 is approximately 1,554 lb.
What type of transmission does the Kioti CS2520 have?
The Kioti CS2520 uses a Hydrostatic transmission.
What routine service does the Kioti CS2520 need?
Regular maintenance for the Kioti CS2520 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
