Kubota B5100

Kubota B5100

Complete specifications and technical data for the Kubota B5100. Compare with similar tractors from Kubota and other manufacturers.

Jump to Full Specifications List

Quick Specs

Category

Utility

Engine Power Output

12hp

Operating Weight

805 lb

Transmission

Unsynchronized gear

The Kubota B5100 is a small utility tractor made from 1978 to 1984. It's a 2WD model with a compact size, measuring 71.6 inches long, 36.2 inches wide, and 44.1 inches tall. This tractor is very light...

Photo Gallery

Image Gallery

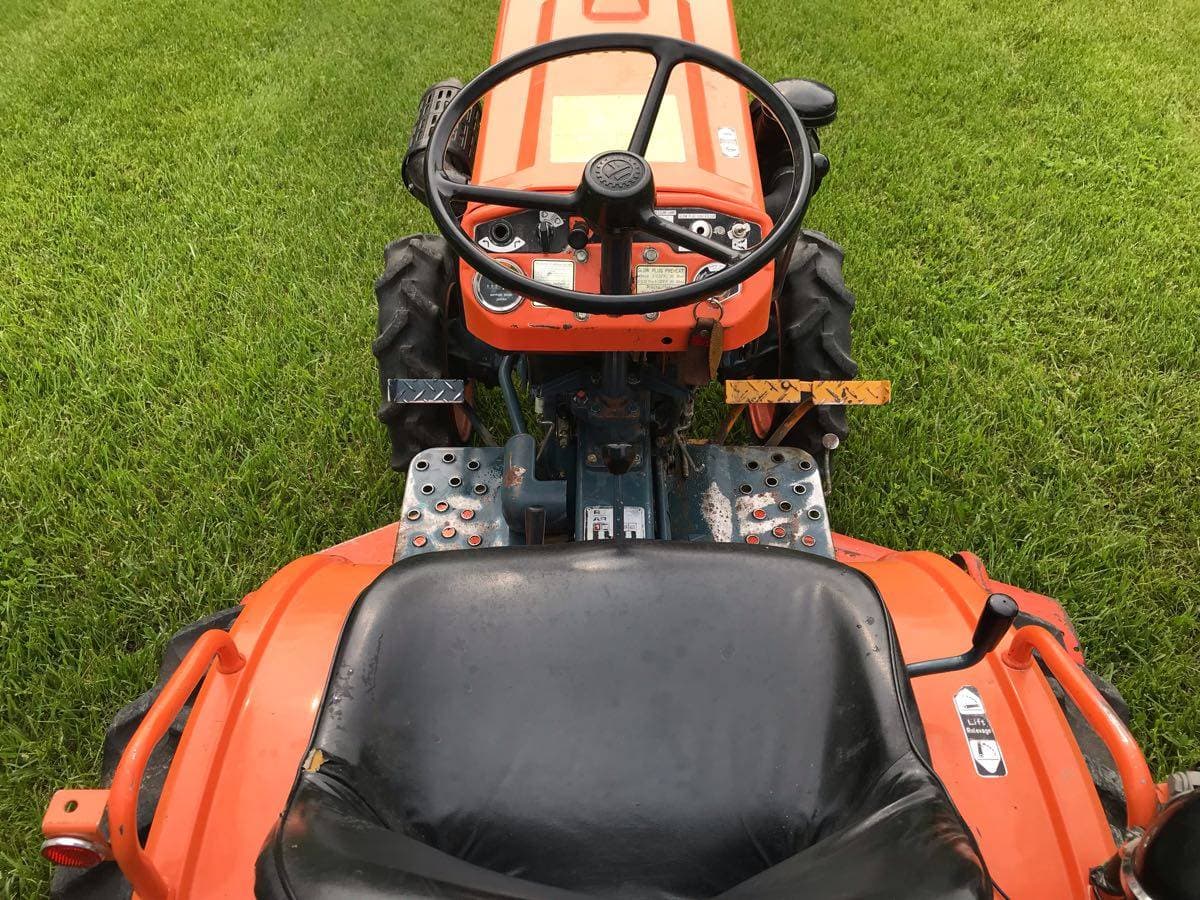

Kubota B5100 Tractor
Kubota B5100 Tractor
Kubota B5100 Tractor
Kubota B5100 Tractor

Specifications

Manufacturer
Kubota
Model
B5100
Category
Utility, Sub-Compact
Manufacturing Years
1978 - 1984
Manufacturer
Kubota
Model
Z500-A1
Power Output
12hp
Rated RPM
3,000RPM
Cylinders
2
Displacement
31ci
Bore
2.68in
Stroke
2.76in

Engine Power Output Comparison of Kubota B5100 vs. Other Utility Tractors

Loading Chart...

Engine Power Output Comparison of Kubota B5100 vs. Other Sub-Compact Tractors

Loading Chart...

Type
Unsynchronized gear
Length
71.6in
Width
36.2in
Height
44.1in
Operating Weight
805lb

Operating Weight Comparison of Kubota B5100 vs. Other Utility Tractors

Loading Chart...

Operating Weight Comparison of Kubota B5100 vs. Other Sub-Compact Tractors

Loading Chart...

System Type
Open center
Steering Type
Manual, Ball screw type
Type
Transmission
Speed 1
540rpm
PTO Speed (2nd)
1,000rpm
Speed 2
1,000rpm
Front Tire Size
4.00-9
Rear
7.00-16
Hitch Type
Three-point hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity
310lb
Chassis Type
4x2 2WD
Drive Type
2WD
Steering Type
Manual, Ball screw type
Brake Type
Internal-expanding type, right and left independent with interlock device
Coolant
3.2qts
Type
Open operator station with two-post ROPS

Compare to Other Tractors

Frequently Asked Questions

What years was the Kubota B5100 manufactured?

The Kubota B5100 was manufactured from 1978 - 1984.

What is the engine power output of the Kubota B5100?

The Kubota B5100 has an engine power output of 12 hp.

How many cylinders does the Kubota B5100 have?

The Kubota B5100 is equipped with a 2-cylinder engine.

What is the operating weight of the Kubota B5100?

The operating weight of the Kubota B5100 is approximately 805 lb.

What type of transmission does the Kubota B5100 have?

The Kubota B5100 is equipped with a Unsynchronized gear transmission.

What type of hydraulic system does the Kubota B5100 use?

The Kubota B5100 uses a Open center hydraulic system.

What size tires does the Kubota B5100 use?

The Kubota B5100 comes with 4.00-9 front tires and 7.00-16 rear tires.

What hitch category is the Kubota B5100?

The Kubota B5100 is a Category I hitch.

What maintenance does the Kubota B5100 require?

Regular maintenance for the Kubota B5100 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
