Utility tractorsSpec sheet

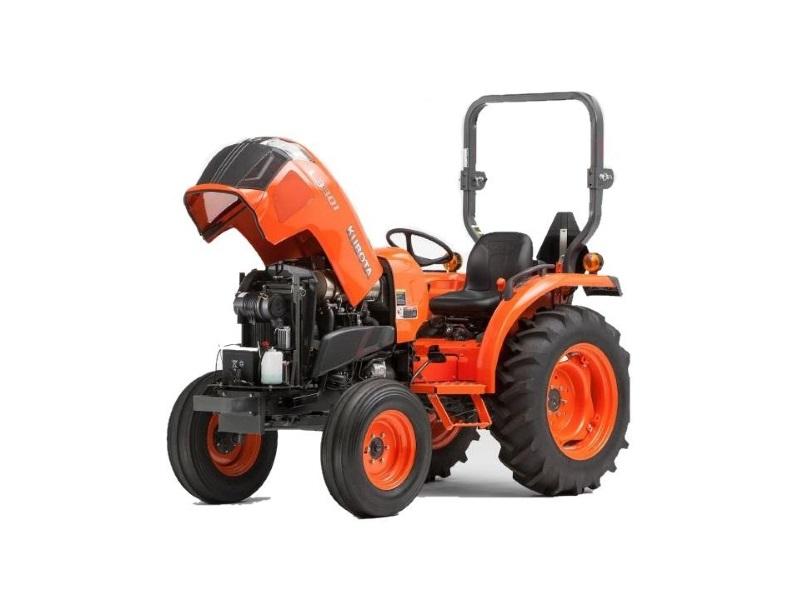

Kubota L3301-4WD
The Kubota L3301-4WD is a utility tractor built for versatility and performance. It features a powerful 4-wheel drive system and a manual transmission with 8 forward and 8 reverse gears, giving farmers excellent control in various conditions. The tractor is equipped with a Kubota D1803-CR-E4 engine, a 3-cylinder diesel powerplant that delivers 33 hp at 2700 rpm. This engine has a displacement of 111.4 ci, which is below average for its class, but it makes up for it with a very high rated rpm. At 107.9 inches long, 55.2 inches wide, and 92.4 inches tall, the L3301-4WD is compact enough to maneuver in tight spaces. It weighs 2733.8 lb, which is on the lighter side for utility tractors. The tractor comes with a Category 1 three-point hitch at the rear, capable of lifting up to 1433.1 lb, which is about average for its size. Other notable features include power steering, mechanical wet disc brakes, and a fuel capacity of 11.1 gallons. With a top speed of 13.2 mph and a turning radius of 8.3 ft, this Kubota tractor offers a good balance of power and agility for various farm tasks.
Key specifications
- Category
- Utility
- Engine power
- 33hp
- Operating weight
- 2,733.8 lb
- Transmission
- Manual
Category comparison
L3301-4WD compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
33 hp · 25th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L3301-4WD ranks at the 25th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L3301-4WD
The Kubota L3301-4WD is a utility tractor built for versatility and performance. It features a powerful 4-wheel drive system and a manual transmission with 8 forward and 8 reverse gears, giving farmers excellent control in various conditions. The tractor is equipped with a Kubota D1803-CR-E4 engine, a 3-cylinder diesel powerplant that delivers 33 hp at 2700 rpm. This engine has a displacement of 111.4 ci, which is below average for its class, but it makes up for it with a very high rated rpm. At 107.9 inches long, 55.2 inches wide, and 92.4 inches tall, the L3301-4WD is compact enough to maneuver in tight spaces. It weighs 2733.8 lb, which is on the lighter side for utility tractors. The tractor comes with a Category 1 three-point hitch at the rear, capable of lifting up to 1433.1 lb, which is about average for its size. Other notable features include power steering, mechanical wet disc brakes, and a fuel capacity of 11.1 gallons. With a top speed of 13.2 mph and a turning radius of 8.3 ft, this Kubota tractor offers a good balance of power and agility for various farm tasks.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | L3301-4WD |
| Category | Utility tractor |
| Type | 4WD |
| Operating weight | 2,733.8lb(1,240 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | D1803-CR-E4 |
| Power | 33hp(24.61 kW) |
| Cylinders | 3 |
| Displacement | 111.4ci(1.83 L) |
| Bore | 3.5in(88.9 mm) |
| Stroke | 4.1in(104.1 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Brakes | Mechanical Wet Disc |
Dimensions
| Length | 107.9in(2,741 mm) |
|---|---|
| Width | 55.2in(1,402 mm) |
| Height | 92.4in(2,347 mm) |
| Operating weight | 2,733.8lb(1,240 kg) |
Capacities
| Cooling system | 1.6gal(6.06 L) |
|---|
Closest alternatives
L3301-4WD compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the L3301-4WD are the Kubota L3301 and the Kubota B3350. The Kubota L3301 matches it on rated power and weighs 180 lb less. The Kubota B3350 matches it on rated power and weighs 840 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the L3301-4WD has the highest weight per horsepower at 83 lb per hp.
| Spec | Kubota L3301-4WD | Kubota L3301 | Kubota B3350 |
|---|---|---|---|
| Engine power | 33 hp24.6 kW | 33 hp24.6 kW | 33 hp24.6 kW |
| Operating weight | 2,734 lb1,240 kg | 2,557 lb1,160 kg | 1,896 lb860 kg |
| Weight per hp | 83 lb/hp50 kg/kW | 77 lb/hp47 kg/kW | 57 lb/hp35 kg/kW |
| Displacement | 111.4 ci1.83 L | 111.4 ci1.83 L | 91.5 ci1.5 L |
| Cylinders | 3 | 3 | 4 |
| Transmission | Manual | Gear shift with dry type dual stage clutch | Hydrostatic |
| Drive | 4WD | 4WD | MFWD |
| Years built | - | 2014+ | 2013+ |
Calculators
Calculators for the L3301-4WD
PTO power
About 27 to 30 PTO hp
Estimated from the 33 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 33 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
96 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
33 hp is 24.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
L3301-4WD vs. Utility median
Kubota L3301-4WD compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 33 hp | 55 hp | -40% | 25th |
| Engine Displacement | 111 ci | 183 ci | -39% | 26th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 2,734 lb | 5,303 lb | -48% | 19th |
| Length | 108 in | 137 in | -21% | 14th |
| Width | 55.2 in | 66 in | -16% | 28th |
| Height | 92.4 in | 94.1 in | -2% | 46th |
| 3-Point Hitch Capacity | 1,433 lb | 3,197 lb | -55% | 14th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery
Kubota L3301-4WD photos
FAQ
Frequently asked questions
How powerful is the Kubota L3301-4WD?
The Kubota L3301-4WD has an engine power output of 33 hp. It is powered by a 3-cylinder engine displacing 111.4 ci.
What three-point hitch category does the Kubota L3301-4WD use?
The Kubota L3301-4WD has a Category Category 1 three-point hitch rated to lift 1,433.1 lb.
What is the working weight of the Kubota L3301-4WD?
The operating weight of the Kubota L3301-4WD is approximately 2,733.8 lb.
What type of transmission does the Kubota L3301-4WD have?
The Kubota L3301-4WD uses a Manual transmission offering 8 forward gears.
What routine service does the Kubota L3301-4WD need?
Regular maintenance for the Kubota L3301-4WD includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
