Kubota L3350
The Kubota L3350 is a utility tractor made from 1985 to 1990. It has a 4-wheel drive system and power steering, making it easy to handle. The tractor uses a Kubota V1902-DA-A engine with 4 cylinders and 34.21 horsepower. This diesel engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. The L3350 has a partially synchronized mechanical shuttle transmission with 8 forward and 8 reverse gears. It comes with a three-point hitch at the back, which can lift up to 3,420 pounds. This lifting capacity is above average compared to other tractors. The tractor has two PTO speeds: 540 rpm and 750 rpm. Its hydraulic system can pump 6.56 gallons per minute at 2,600 psi pressure. The L3350 weighs 3,770 pounds and measures 137 inches long, 61.8 inches wide, and 59.4 inches tall. It has an open operator station with a two-post rollover protection system for safety.
ManufacturerKubotaPower34.21 hp(25.5 kW)Class25–40 HP tractors →Engine4-cylinderTransmissionPartially synchronized mechanical shuttle
Key specifications
- Category
- Utility
- Engine power
- 34hp
- Operating weight
- 3,770 lb
- Transmission
- Partially synchronized mechanical shuttle
Category comparison
L3350 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
34.21 hp · 27th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L3350 ranks at the 27th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L3350
The Kubota L3350 is a utility tractor made from 1985 to 1990. It has a 4-wheel drive system and power steering, making it easy to handle. The tractor uses a Kubota V1902-DA-A engine with 4 cylinders and 34.21 horsepower. This diesel engine is liquid-cooled and naturally aspirated, which means it doesn't use a turbocharger. The L3350 has a partially synchronized mechanical shuttle transmission with 8 forward and 8 reverse gears. It comes with a three-point hitch at the back, which can lift up to 3,420 pounds. This lifting capacity is above average compared to other tractors. The tractor has two PTO speeds: 540 rpm and 750 rpm. Its hydraulic system can pump 6.56 gallons per minute at 2,600 psi pressure. The L3350 weighs 3,770 pounds and measures 137 inches long, 61.8 inches wide, and 59.4 inches tall. It has an open operator station with a two-post rollover protection system for safety.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | L3350 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 1985–1990 |
| Operating weight | 3,770lb(1,710 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | V1902-DA-A |
| Power | 34.21hp(25.51 kW) |
| Cylinders | 4 |
| Displacement | 113.6ci(1.86 L) |
| Bore | 3.31in(84.07 mm) |
| Stroke | 3.19in(81.03 mm) |
Transmission
| Type | Partially synchronized mechanical shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Brakes | Wet disc type |
| Cab | Open operator station with two-post ROPS |
Hydraulics
| Type | Open center |
|---|---|
| Pump flow | 6.56gpm(24.83 L/min) |
| Pressure | 2,600psi(17,930 kPa) |
Power take-off
| Rear PTO | Live |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 137in(3,480 mm) |
|---|---|
| Width | 61.8in(1,570 mm) |
| Height | 59.4in(1,509 mm) |
| Operating weight | 3,770lb(1,710 kg) |
Capacities
| Cooling system | 1.85gal(7 L) |
|---|
Closest alternatives
L3350 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the L3350 are the Yanmar YT235 and the Cabelas LM36. The Yanmar YT235 matches it on rated power. It entered production in 2016, 31 years after the L3350. The Cabelas LM36 matches it on rated power.
| Spec | Kubota L3350 | Yanmar YT235 | Cabelas LM36 |
|---|---|---|---|
| Engine power | 34.2 hp25.5 kW | 34.2 hp25.5 kW | 34.2 hp25.5 kW |
| Displacement | 113.6 ci1.86 L | 100.1 ci1.64 L | 100.2 ci1.64 L |
| Cylinders | 4 | 3 | 3 |
| Transmission | Partially synchronized mechanical shuttle | Hydrostatic | Shuttle / Hydrostatic |
| Drive | 4WD | 4WD | 4WD |
| Years built | 1985-1990 | 2016+ | - |
Calculators
Calculators for the L3350
PTO power
About 28 to 31 PTO hp
Estimated from the 34.21 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 34.21 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
128 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
34.21 hp is 25.5 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
L3350 vs. Utility median
Kubota L3350 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 34.2 hp | 55 hp | -38% | 27th |
| Engine Displacement | 114 ci | 183 ci | -38% | 27th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 3,770 lb | 5,303 lb | -29% | 33rd |
| Length | 137 in | 137 in | 0% | 50th |
| Width | 61.8 in | 66 in | -6% | 40th |
| Height | 59.4 in | 94.1 in | -37% | 9th |
| 3-Point Hitch Capacity | 3,420 lb | 3,197 lb | +7% | 57th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery

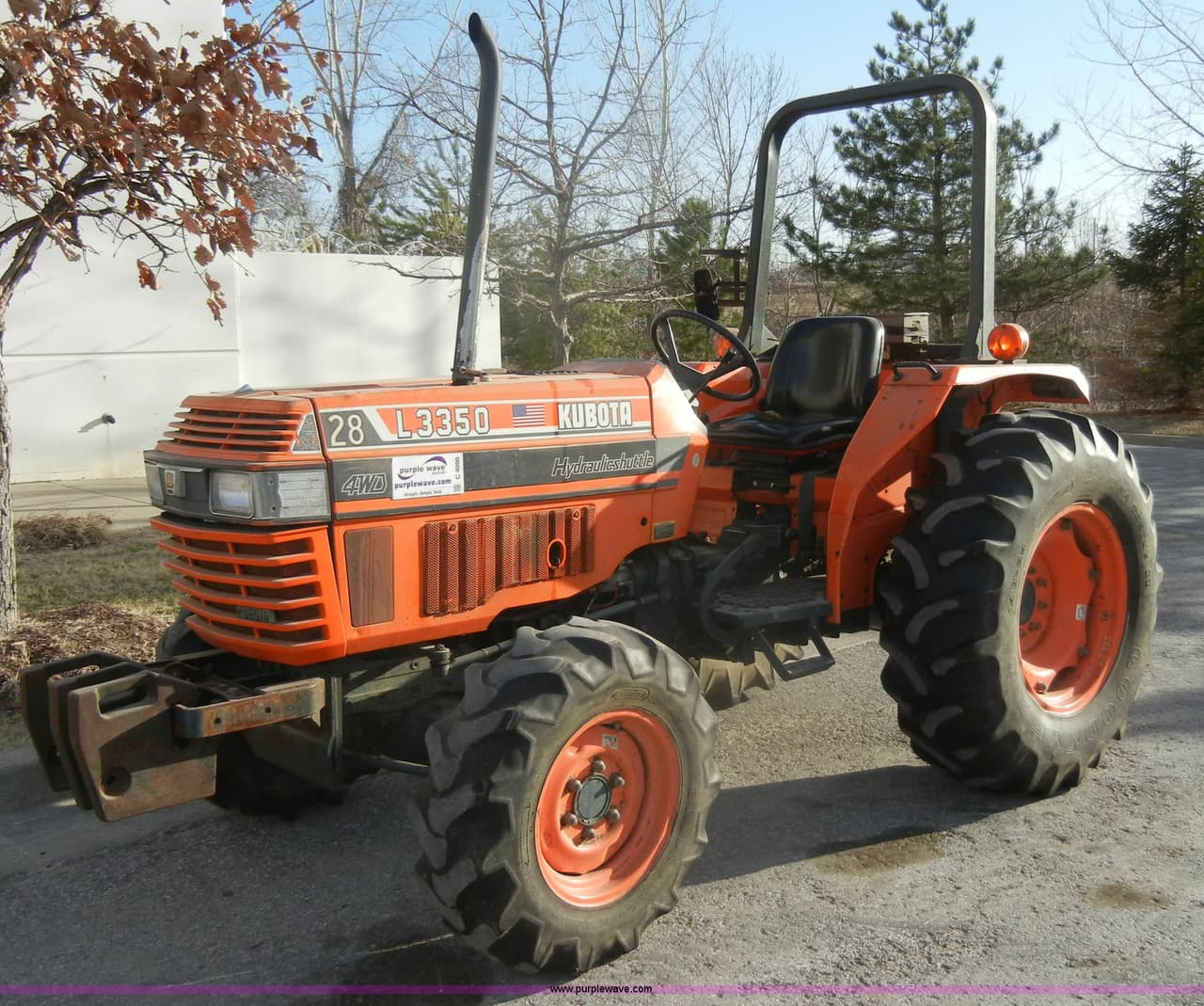

Kubota L3350 photos
FAQ
Frequently asked questions
When was the Kubota L3350 in production?
Kubota L3350 production started in 1985 and ended in 1990.
How much does the Kubota L3350 weigh?
The Kubota L3350 weighs about 3,770 lb in operating condition.
What transmission is in the Kubota L3350?
Transmission on the Kubota L3350 is Partially synchronized mechanical shuttle, with 8 forward speeds.
What hydraulics does the Kubota L3350 have?
The Kubota L3350 uses an Open center hydraulic system with a pump flow of 6.56 gpm.
What three-point hitch category does the Kubota L3350 use?
The Kubota L3350 has a Category I three-point hitch rated to lift 3,420 lb.
How much horsepower does the Kubota L3350 have?
The Kubota L3350 produces 34.21 hp from its 4-cylinder engine. Engine displacement is 113.6 ci.
What maintenance does the Kubota L3350 require?
The Kubota L3350 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
