UtilityPerformance profile
Kubota L3400 Gear
The Kubota L3400 Gear is a utility tractor built for various farm tasks. It has a diesel engine made by Kubota with three cylinders and 34.7 horsepower. The engine runs at a very high 2700 rpm, which means it can work hard for long periods. The tractor's power is below average compared to other tractors, but it's still good for many jobs around the farm. This tractor has a sliding gear transmission with 8 forward gears and 4 reverse gears. This gives the driver good control over speed and power. The L3400 Gear has a three-point hitch at the back, which can lift up to 1435.3 pounds. This is about average for hitches, making it useful for attaching different tools. The tractor is 111.6 inches long, 51.6 inches wide, and 85.2 inches tall. It weighs 2579.5 pounds, which is lighter than many other tractors. This makes it easy to move around the farm without damaging the ground too much.
ManufacturerKubotaPower34.7 hpEngine3-cylTransSliding Gear Constant Mesh
Quick specs
- Category
- Utility
- Engine Power Output
- 35hp
- Operating Weight
- 2,579.5 lb
- Transmission
- Sliding Gear Constant Mesh
At a glance
How the L3400 Gear compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
34.7 hp · 27th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L3400 Gear ranks at the 27th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L3400 Gear
The Kubota L3400 Gear is a utility tractor built for various farm tasks. It has a diesel engine made by Kubota with three cylinders and 34.7 horsepower. The engine runs at a very high 2700 rpm, which means it can work hard for long periods. The tractor's power is below average compared to other tractors, but it's still good for many jobs around the farm. This tractor has a sliding gear transmission with 8 forward gears and 4 reverse gears. This gives the driver good control over speed and power. The L3400 Gear has a three-point hitch at the back, which can lift up to 1435.3 pounds. This is about average for hitches, making it useful for attaching different tools. The tractor is 111.6 inches long, 51.6 inches wide, and 85.2 inches tall. It weighs 2579.5 pounds, which is lighter than many other tractors. This makes it easy to move around the farm without damaging the ground too much.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | L3400 Gear |
| Category | Utility tractor |
| Operating weight | 2,579.5lb |
Engine
| Make | Kubota |
|---|---|
| Model | L3400 Gear |
| Power | 34.7hp |
| Cylinders | 3 |
| Displacement | 100.5ci |
Transmission
| Type | Sliding Gear Constant Mesh |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Cab | ROPS/FOPS |
|---|
Dimensions
| Length | 111.6in |
|---|---|
| Width | 51.6in |
| Height | 85.2in |
| Operating weight | 2,579.5lb |
Tires
| Rear | 11.2-24 |
|---|
Head to head
L3400 Gear vs. Utility median
How the Kubota L3400 Gear compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 34.7 hp | 55 hp | -37% | 27th |
| Engine Displacement | 101 ci | 183 ci | -45% | 23rd |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 2,580 lb | 5,303 lb | -51% | 18th |
| Length | 112 in | 137 in | -18% | 17th |
| Width | 51.6 in | 66 in | -22% | 20th |
| Height | 85.2 in | 94.1 in | -9% | 33rd |
| 3-Point Hitch Capacity | 1,435 lb | 3,197 lb | -55% | 15th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota L3400 | 34.7 hp | — | 2004–2010 | Compare → |
| Kubota L3400HST | 34.7 hp | 2,601.5 lb | — | Compare → |
| Kubota L3408 | 34.7 hp | — | — | Compare → |
| Kubota STV40 | 34.7 hp | — | 2006–2014 | Compare → |
| Kubota GL-35 | 35 hp | — | 1991–1995 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers WD | 34.63 hp | — | 1948–1953 | Compare → |
| Ag King AK3540 | 35 hp | 3,895 lb | — | Compare → |
| Apollo 354 | 35 hp | — | — | Compare → |
| Barreiros R-335 S | 35 hp | — | — | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

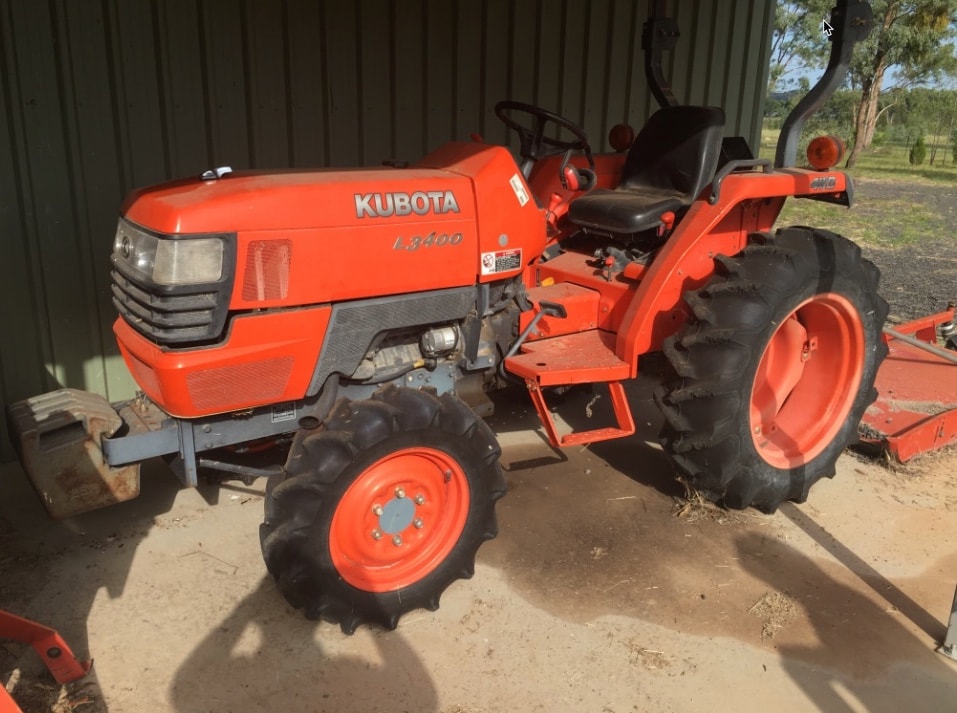

Kubota L3400 Gear photos
FAQ
Common questions
How powerful is the Kubota L3400 Gear?
The Kubota L3400 Gear has an engine power output of 34.7 hp. It is powered by a 3-cylinder engine displacing 100.5 ci.
What is the working weight of the Kubota L3400 Gear?
The operating weight of the Kubota L3400 Gear is approximately 2,579.5 lb.
What type of transmission does the Kubota L3400 Gear have?
The Kubota L3400 Gear uses a Sliding Gear Constant Mesh transmission offering 8 forward gears.
What are the factory tire sizes for the Kubota L3400 Gear?
The Kubota L3400 Gear comes with 11.2-24 rear tires.
What three-point hitch category does the Kubota L3400 Gear use?
The Kubota L3400 Gear has a Category I three-point hitch rated to lift 1,435.3 lb.
What routine service does the Kubota L3400 Gear need?
Regular maintenance for the Kubota L3400 Gear includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
