UtilityPerformance profile
Kubota L3430DT
The Kubota L3430DT is a versatile utility tractor built for farmers who need a reliable machine. This 4-wheel drive tractor has a compact size, measuring 115.2 inches long, 60 inches wide, and 85.2 inches tall. It's powered by a Kubota diesel engine with three cylinders and 33.6 horsepower, which is average for its class. The engine runs at a very high 2700 RPM, making it responsive and efficient. This tractor features a FST transmission with 8 forward and 8 reverse gears, giving operators plenty of options for different tasks. It has a rear hitch with a lifting capacity of 2645.6 pounds, which is above average and good for handling various implements. The L3430DT weighs 3218.8 pounds and has extra features like a 10.6-gallon fuel tank and a top speed of 16.6 mph. Its pump flow capacity of 13.3 gallons per minute helps with hydraulic tasks, while the tight turning radius of 8.9 feet makes it easy to maneuver in tight spaces.
ManufacturerKubotaPower33.6 hpEngine3-cylTransFST
Quick specs
- Category
- Utility
- Engine Power Output
- 34hp
- Operating Weight
- 3,218.8 lb
- Transmission
- FST
At a glance
How the L3430DT compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
33.6 hp · 26th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L3430DT ranks at the 26th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L3430DT
The Kubota L3430DT is a versatile utility tractor built for farmers who need a reliable machine. This 4-wheel drive tractor has a compact size, measuring 115.2 inches long, 60 inches wide, and 85.2 inches tall. It's powered by a Kubota diesel engine with three cylinders and 33.6 horsepower, which is average for its class. The engine runs at a very high 2700 RPM, making it responsive and efficient. This tractor features a FST transmission with 8 forward and 8 reverse gears, giving operators plenty of options for different tasks. It has a rear hitch with a lifting capacity of 2645.6 pounds, which is above average and good for handling various implements. The L3430DT weighs 3218.8 pounds and has extra features like a 10.6-gallon fuel tank and a top speed of 16.6 mph. Its pump flow capacity of 13.3 gallons per minute helps with hydraulic tasks, while the tight turning radius of 8.9 feet makes it easy to maneuver in tight spaces.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | L3430DT |
| Category | Utility tractor |
| Type | 4WD |
| Operating weight | 3,218.8lb |
Engine
| Make | Kubota |
|---|---|
| Model | L3430 DT |
| Power | 33.6hp |
| Cylinders | 3 |
| Displacement | 100.5ci |
Transmission
| Type | FST |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 115.2in |
|---|---|
| Width | 60in |
| Height | 85.2in |
| Operating weight | 3,218.8lb |
Head to head
L3430DT vs. Utility median
How the Kubota L3430DT compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 33.6 hp | 55 hp | -39% | 26th |
| Engine Displacement | 101 ci | 183 ci | -45% | 23rd |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 3,219 lb | 5,303 lb | -39% | 26th |
| Length | 115 in | 137 in | -16% | 21st |
| Width | 60 in | 66 in | -9% | 37th |
| Height | 85.2 in | 94.1 in | -9% | 33rd |
| 3-Point Hitch Capacity | 2,646 lb | 3,197 lb | -17% | 35th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota L3430 | 33.6 hp | 3,305 lb | 2003–2007 | Compare → |
| Kubota L3430HSTC | 33.6 hp | 3,637.7 lb | — | Compare → |
| Kubota KL34 Hi-Speed | 33.5 hp | — | — | Compare → |
| Kubota KL340 Hi-Speed | 33.5 hp | 2,998 lb | — | Compare → |
| Kubota KL3450 | 33.5 hp | 3,406 lb | 2010–2011 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 3055 | 34 hp | 4,500 lb | — | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
| AGCO ST32 | 33 hp | 2,642 lb | — | Compare → |
| AGCO ST33A | 33 hp | 2,400 lb | — | Compare → |
| AGCO ST34A | 33 hp | 3,000 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

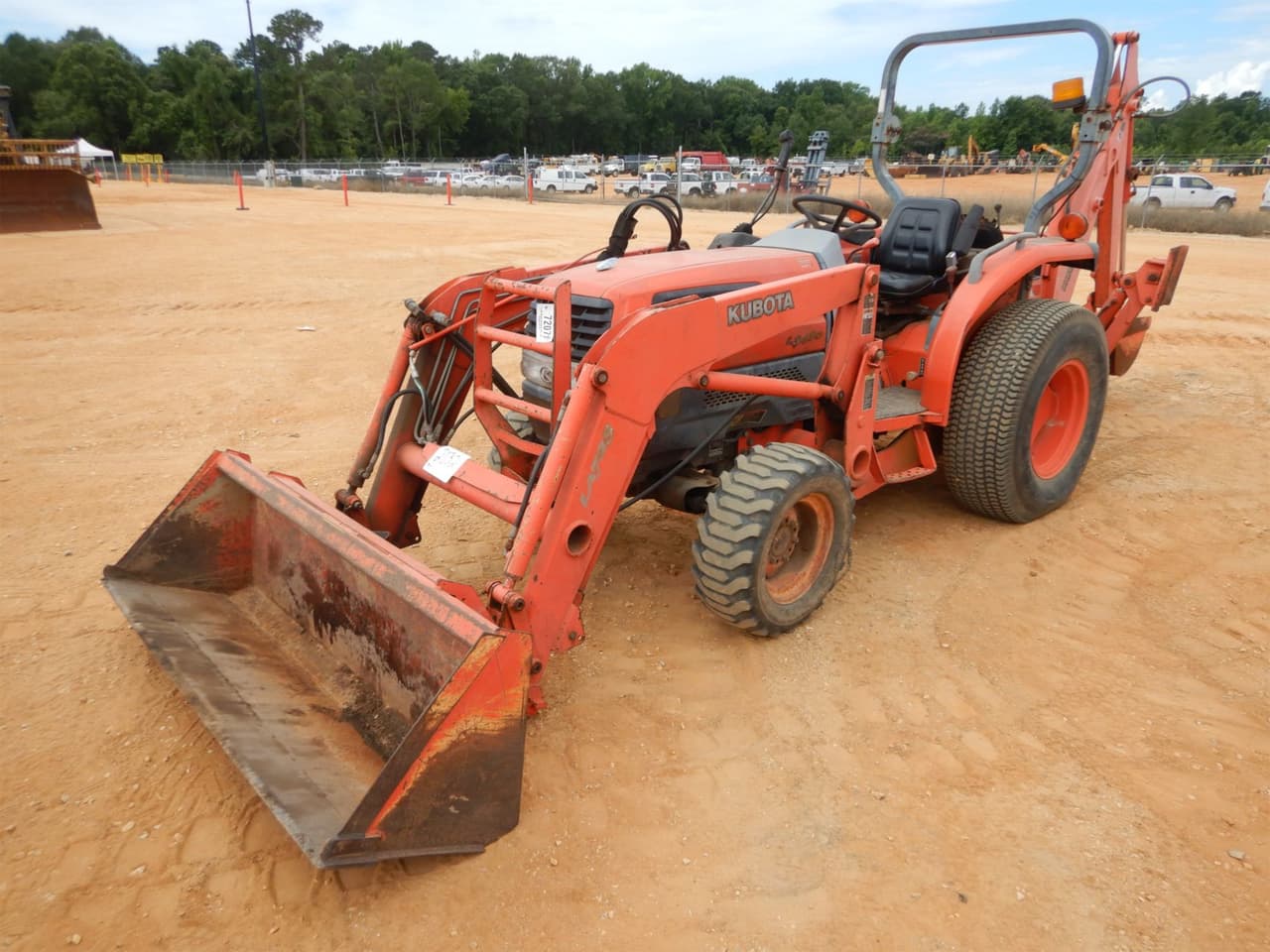

Kubota L3430DT photos
FAQ
Common questions
What is the engine power output of the Kubota L3430DT?
Rated engine output for the Kubota L3430DT is 33.6 hp, delivered by a 3-cylinder engine. The engine displaces 100.5 ci.
Which transmission does the Kubota L3430DT use?
The Kubota L3430DT is equipped with a FST transmission with 8 forward gears.
What hitch category is the Kubota L3430DT?
The Kubota L3430DT uses a Category Category 3 hitch with a lift capacity of 2,645.6 lb.
What is the operating weight of the Kubota L3430DT?
In working trim, the Kubota L3430DT comes in at roughly 3,218.8 lb.
How do I maintain a Kubota L3430DT?
Routine service for the Kubota L3430DT covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
