UtilityPerformance profile
Kubota L4060DTRC
The Kubota L4060DTRC is a utility tractor that packs a punch in a compact package. It's powered by a Kubota diesel engine with 4 cylinders and 42 hp. This engine is cooled by liquid and has natural aspiration with EGR. The tractor has a 16-speed transmission with 8 forward and 8 reverse gears, giving drivers lots of options for different tasks. This Kubota model is built for comfort and ease of use. It has hydrostatic power steering and a ROPS operator station to keep drivers safe. The tractor is 121.5 inches long, 67.2 inches wide, and 98.4 inches tall. It weighs 3384.1 lb, which is lighter than many other tractors. The L4060DTRC has a three-point hitch at the back that can lift up to 2755.8 lb, which is above average for its class. It also has two PTO speeds: 540 rpm and 2000 rpm. These features make it great for a wide range of farm jobs.
ManufacturerKubotaPower42 hpEngine4-cylTransFST
Quick specs
- Category
- Utility
- Engine Power Output
- 42hp
- Operating Weight
- 3,384.1 lb
- Transmission
- FST
At a glance
How the L4060DTRC compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
42 hp · 36th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L4060DTRC ranks at the 36th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L4060DTRC
The Kubota L4060DTRC is a utility tractor that packs a punch in a compact package. It's powered by a Kubota diesel engine with 4 cylinders and 42 hp. This engine is cooled by liquid and has natural aspiration with EGR. The tractor has a 16-speed transmission with 8 forward and 8 reverse gears, giving drivers lots of options for different tasks. This Kubota model is built for comfort and ease of use. It has hydrostatic power steering and a ROPS operator station to keep drivers safe. The tractor is 121.5 inches long, 67.2 inches wide, and 98.4 inches tall. It weighs 3384.1 lb, which is lighter than many other tractors. The L4060DTRC has a three-point hitch at the back that can lift up to 2755.8 lb, which is above average for its class. It also has two PTO speeds: 540 rpm and 2000 rpm. These features make it great for a wide range of farm jobs.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | L4060DTRC |
| Category | Utility tractor |
| Operating weight | 3,384.1lb |
Engine
| Make | Kubota |
|---|---|
| Model | L4060DTRC |
| Power | 42hp |
| Cylinders | 4 |
| Displacement | 148.5ci |
| Bore | 3.5in |
| Stroke | 4.1in |
Transmission
| Type | FST |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Steering | Hydrostatic power |
|---|---|
| Brakes | Wet disc type |
| Cab | ROPS |
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 121.5in |
|---|---|
| Width | 67.2in |
| Height | 98.4in |
| Operating weight | 3,384.1lb |
Head to head
L4060DTRC vs. Utility median
How the Kubota L4060DTRC compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 42 hp | 55 hp | -24% | 36th |
| Engine Displacement | 149 ci | 183 ci | -19% | 37th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 3,384 lb | 5,303 lb | -36% | 28th |
| Length | 122 in | 137 in | -11% | 29th |
| Width | 67.2 in | 66 in | +2% | 54th |
| Height | 98.4 in | 94.1 in | +5% | 62nd |
| 3-Point Hitch Capacity | 2,756 lb | 3,197 lb | -14% | 40th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota L4060GSTRC | 42 hp | 3,428.2 lb | — | Compare → |
| Kubota L4060HSTCC | 42 hp | 4,023.5 lb | — | Compare → |
| Kubota L4240DT | 42 hp | 3,527.4 lb | — | Compare → |
| Kubota L4240HSTC | 42 hp | 4,001.4 lb | — | Compare → |
| Kubota L3750 | 41.71 hp | 3,650 lb | 1984–1990 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers ED40 | 41 hp | 3,527 lb | — | Compare → |
| AGCO ST40 | 40.1 hp | 3,323 lb | — | Compare → |
| AGCO ST41A | 40.1 hp | 3,000 lb | — | Compare → |
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models

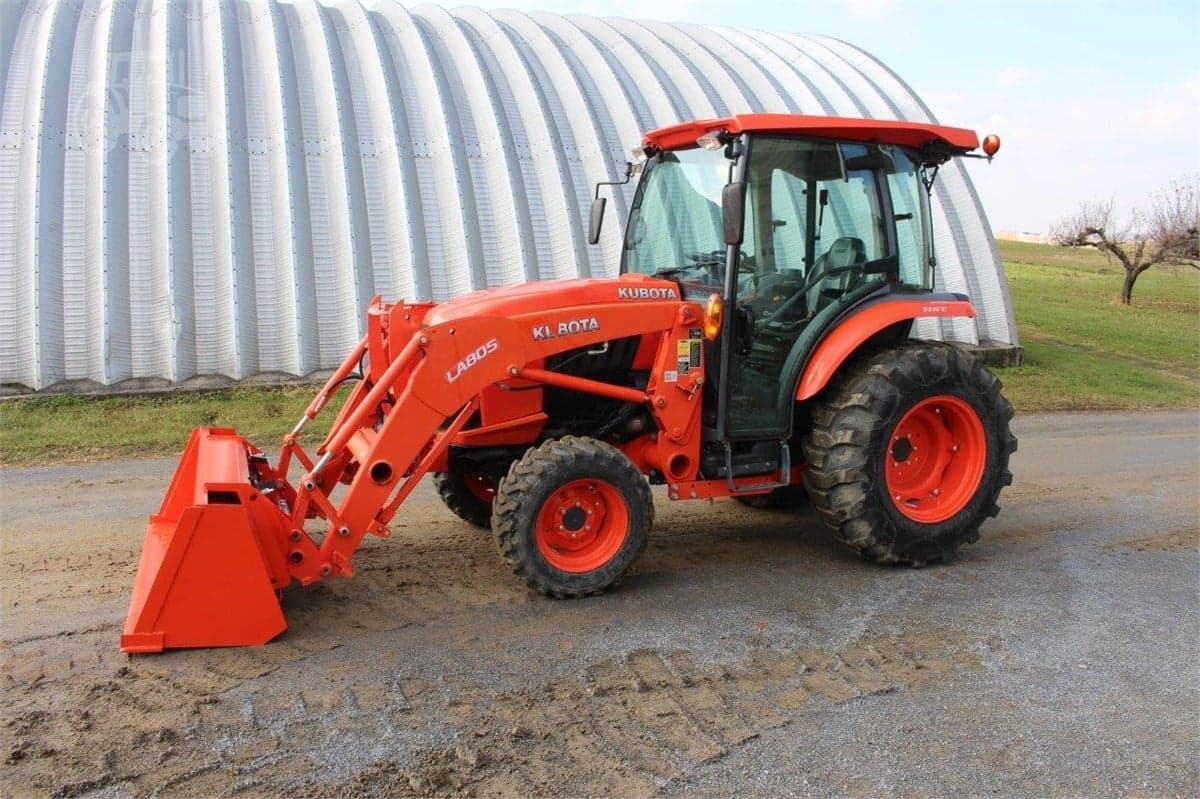

Gallery
Kubota L4060DTRC photos
FAQ
Common questions
What is the engine power output of the Kubota L4060DTRC?
Rated engine output for the Kubota L4060DTRC is 42 hp, delivered by a 4-cylinder engine. The engine displaces 148.5 ci.
Which transmission does the Kubota L4060DTRC use?
The Kubota L4060DTRC is equipped with a FST transmission with 8 forward gears.
What three-point hitch category does the Kubota L4060DTRC use?
The Kubota L4060DTRC has a Category I three-point hitch rated to lift 2,755.8 lb.
What is the operating weight of the Kubota L4060DTRC?
In working trim, the Kubota L4060DTRC comes in at roughly 3,384.1 lb.
How do I maintain a Kubota L4060DTRC?
Routine service for the Kubota L4060DTRC covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
