Utility tractorsSpec sheet
Kubota L5740
The Kubota L5740 is a versatile utility tractor built from 2007 to 2017. It's a 4-wheel drive machine with a powerful 57 hp diesel engine. This tractor has a hydrostatic transmission, which means it's easy to control and can change speeds smoothly. The engine is liquid-cooled and has four cylinders, making it reliable for long work days. This Kubota model is designed for various farm tasks. It has a strong three-point hitch at the back that can lift up to 3,859 pounds, which is very high compared to other tractors. The tractor has two PTO speeds: 540 rpm at the rear and 2000 rpm for a mid-mount PTO. This allows it to run different tools and attachments. The L5740 is about average in weight at 3,902 pounds, making it stable but not too heavy. It comes with either an open operator station with roll-over protection or a enclosed cab for comfort in all weather.
ManufacturerKubotaPower57 hp(42.5 kW)Class40–60 HP tractors →Engine4-cylinderTransmissionHydrostatic
Key specifications
- Category
- Utility
- Engine power
- 57hp
- Operating weight
- 3,902 lb
- Transmission
- Hydrostatic
Category comparison
L5740 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
57 hp · 51st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L5740 ranks at the 51st percentile for engine power among recorded utility tractors.
Overview
About the Kubota L5740
The Kubota L5740 is a versatile utility tractor built from 2007 to 2017. It's a 4-wheel drive machine with a powerful 57 hp diesel engine. This tractor has a hydrostatic transmission, which means it's easy to control and can change speeds smoothly. The engine is liquid-cooled and has four cylinders, making it reliable for long work days. This Kubota model is designed for various farm tasks. It has a strong three-point hitch at the back that can lift up to 3,859 pounds, which is very high compared to other tractors. The tractor has two PTO speeds: 540 rpm at the rear and 2000 rpm for a mid-mount PTO. This allows it to run different tools and attachments. The L5740 is about average in weight at 3,902 pounds, making it stable but not too heavy. It comes with either an open operator station with roll-over protection or a enclosed cab for comfort in all weather.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | L5740 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2007–2017 |
| Operating weight | 3,902lb(1,770 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | V2403-M-TE2-HST2 |
| Power | 57hp(42.5 kW) |
| Cylinders | 4 |
| Displacement | 148.4ci(2.43 L) |
| Bore | 3.43in(87.12 mm) |
| Stroke | 4.03in(102.4 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Brakes | Wet disc |
| Cab | Open operator station with two-post ROPS or Cab |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 128in(3,251 mm) |
|---|---|
| Width | 61.8in(1,570 mm) |
| Height | 98in(2,489 mm) |
| Operating weight | 3,902lb(1,770 kg) |
Tires
| Front | 9.5-16Convert |
|---|---|
| Rear | 13.6-28Convert |
Capacities
| Cooling system | 2.17gal(8.21 L) |
|---|
Closest alternatives
L5740 compared with the nearest models by horsepower
Among utility tractors, the Kubota L5740HSTC and the Kubota M5700 Narrow are closest to the Kubota L5740 in rated horsepower. The Kubota L5740HSTC matches it on rated power and weighs 330 lb more, so it carries more weight per horsepower, which helps traction in draft work. The Kubota M5700 Narrow matches it on rated power and weighs 110 lb less.
| Spec | Kubota L5740 | Kubota L5740HSTC | Kubota M5700 Narrow |
|---|---|---|---|
| Engine power | 57 hp42.5 kW | 57 hp42.5 kW | 57 hp42.5 kW |
| Operating weight | 3,902 lb1,770 kg | 4,233 lb1,920 kg | 3,792 lb1,720 kg |
| Weight per hp | 68 lb/hp42 kg/kW | 74 lb/hp45 kg/kW | 67 lb/hp40 kg/kW |
| Displacement | 148.4 ci2.43 L | 148.5 ci2.43 L | 167.5 ci2.74 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Hydrostatic | HST plus 3 range | Fully synchronized |
Calculators
Calculators for the L5740
PTO power
About 47 to 51 PTO hp
Estimated from the 57 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 57 hp tractor can run
Maximum size is about a 7 ft rotary cutter or a 6 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
80 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
57 hp is 42.5 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 13.6-28 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Category medians
L5740 vs. Utility median
Kubota L5740 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 57 hp | 55 hp | +4% | 51st |
| Engine Displacement | 148 ci | 183 ci | -19% | 37th |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 3,902 lb | 5,303 lb | -26% | 36th |
| Length | 128 in | 137 in | -6% | 38th |
| Width | 61.8 in | 66 in | -6% | 40th |
| Height | 98 in | 94.1 in | +4% | 61st |
| 3-Point Hitch Capacity | 3,859 lb | 3,197 lb | +21% | 63rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery

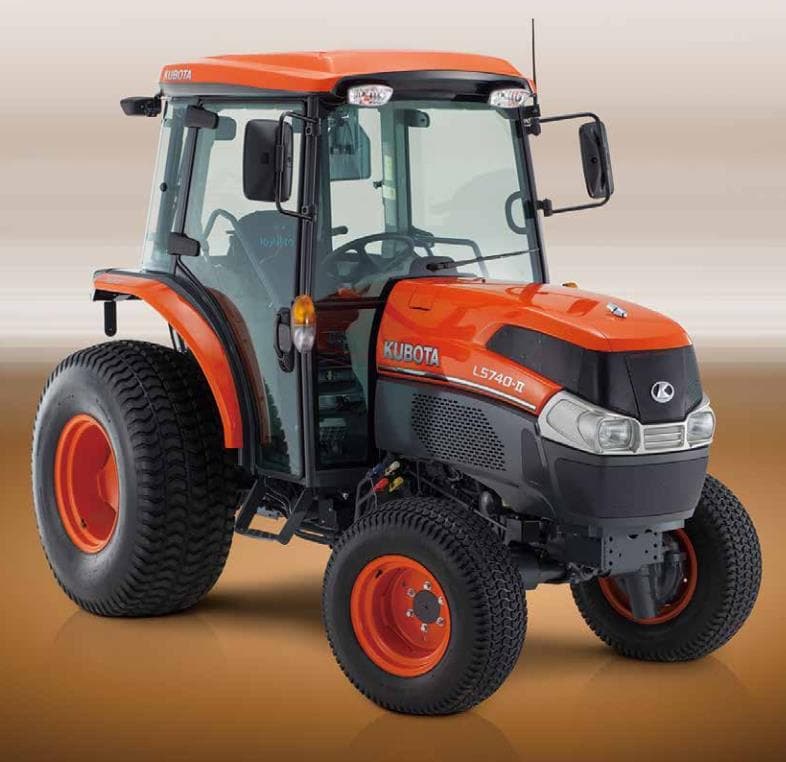

Kubota L5740 photos
FAQ
Frequently asked questions
When was the Kubota L5740 made?
The Kubota L5740 was manufactured from 2007 to 2017.
What is the operating weight of the Kubota L5740?
The Kubota L5740 has an operating weight of about 3,902 lb.
Which transmission does the Kubota L5740 use?
The Kubota L5740 is equipped with a Hydrostatic transmission.
What type of hydraulic system does the Kubota L5740 use?
Hydraulics on the Kubota L5740 are Open center.
What size tires does the Kubota L5740 use?
The Kubota L5740 is fitted with 9.5-16 front tires and 13.6-28 rear tires from the factory.
What hitch category is the Kubota L5740?
The Kubota L5740 uses a Category II/I hitch with a lift capacity of 3,859 lb.
What is the engine power output of the Kubota L5740?
Rated engine output for the Kubota L5740 is 57 hp, delivered by a 4-cylinder engine. The engine displaces 148.4 ci.
How do I maintain a Kubota L5740?
Routine service for the Kubota L5740 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
