UtilityPerformance profile
Kubota M1-100
The Kubota M1-100 is a powerful utility tractor built from 1988 to 1998. It's a 4-wheel drive machine with a strong 100 hp diesel engine. This tractor has a very high engine displacement and power output compared to other tractors. It also has an above-average operating weight of 8,796 lb, making it sturdy and stable for tough jobs. The M1-100 is big, measuring 165.8 inches long, 80.7 inches wide, and 105.9 inches tall. It has a creeper transmission with 36 forward and 36 reverse gears, giving farmers lots of speed options. The tractor uses standard agricultural tires and has a rear hitch for attaching tools. With its liquid-cooled, 5-cylinder engine and electric starter, this Kubota is ready for hard work on the farm.
ManufacturerKubotaPower100 hpEngine5-cylTransCreeper
Quick specs
- Category
- Utility
- Engine Power Output
- 100hp
- Operating Weight
- 8,796 lb
- Transmission
- Creeper
At a glance
How the M1-100 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
100 hp · 84th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The M1-100 ranks at the 84th percentile for engine power among recorded utility tractors.
Overview
About the Kubota M1-100
The Kubota M1-100 is a powerful utility tractor built from 1988 to 1998. It's a 4-wheel drive machine with a strong 100 hp diesel engine. This tractor has a very high engine displacement and power output compared to other tractors. It also has an above-average operating weight of 8,796 lb, making it sturdy and stable for tough jobs. The M1-100 is big, measuring 165.8 inches long, 80.7 inches wide, and 105.9 inches tall. It has a creeper transmission with 36 forward and 36 reverse gears, giving farmers lots of speed options. The tractor uses standard agricultural tires and has a rear hitch for attaching tools. With its liquid-cooled, 5-cylinder engine and electric starter, this Kubota is ready for hard work on the farm.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | M1-100 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 1988–1998 |
| Operating weight | 8,796lb |
Engine
| Make | Kubota |
|---|---|
| Model | F5402 |
| Power | 100hp |
| Cylinders | 5 |
| Displacement | 330.2ci |
| Bore | 4.13in |
| Stroke | 4.92in |
Transmission
| Type | Creeper |
|---|---|
| Forward gears | 36 |
| Reverse gears | 36 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 165.8in |
|---|---|
| Width | 80.7in |
| Height | 105.9in |
| Operating weight | 8,796lb |
Head to head
M1-100 vs. Utility median
How the Kubota M1-100 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 100 hp | 55 hp | +82% | 84th |
| Engine Displacement | 330 ci | 183 ci | +80% | 85th |
| Cylinders | 5 | 4 | +25% | 88th |
| Forward Gears | 36 | 12 | +200% | 99th |
| Operating Weight | 8,796 lb | 5,303 lb | +66% | 81st |
| Length | 166 in | 137 in | +21% | 84th |
| Width | 80.7 in | 66 in | +22% | 83rd |
| Height | 106 in | 94.1 in | +13% | 79th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota M9580 | 100 hp | 8,488 lb | 1991–1999 | Compare → |
| Kubota M100 | 98.7 hp | 8,025 lb | 2002–2004 | Compare → |
| Kubota M100G | 98.7 hp | 8,080 lb | 2014+ | Compare → |
| Kubota M100A | 98.6 hp | 7,915 lb | 2009–2013 | Compare → |
| Kubota M5-111 | 97.85 hp | 7,685 lb | 2015+ | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| Agco RT100a | 100 hp | 11,051.8 lb | — | Compare → |
| Belarus 1005 | 100 hp | 8,874 lb | — | Compare → |
| Belarus 1025 | 100 hp | 9,144 lb | — | Compare → |
| Agrinar T-100 | 97.9 hp | 3,850 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

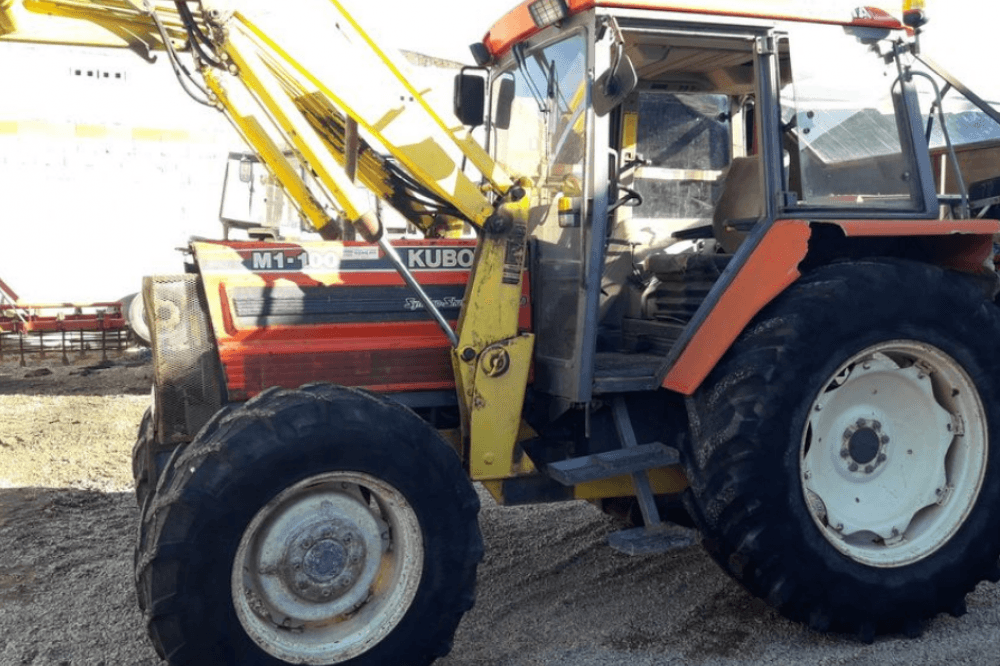

Kubota M1-100 photos
FAQ
Common questions
What years was the Kubota M1-100 manufactured?
Production of the Kubota M1-100 ran from 1988 through 1998.
What type of transmission does the Kubota M1-100 have?
The Kubota M1-100 uses a Creeper transmission offering 36 forward gears.
How powerful is the Kubota M1-100?
The Kubota M1-100 has an engine power output of 100 hp. It is powered by a 5-cylinder engine displacing 330.2 ci.
What is the working weight of the Kubota M1-100?
The operating weight of the Kubota M1-100 is approximately 8,796 lb.
What routine service does the Kubota M1-100 need?
Regular maintenance for the Kubota M1-100 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
