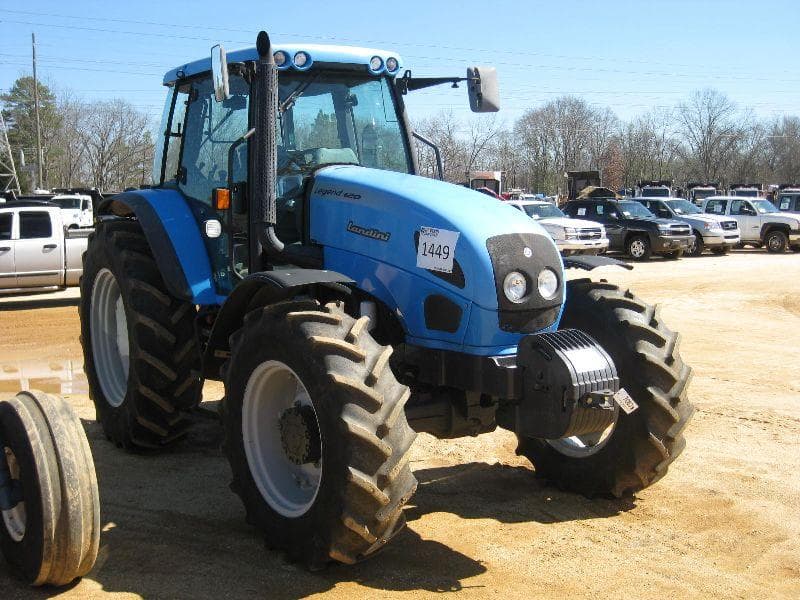

Landini Legend 120

Landini Legend 120

Complete specifications and technical data for the Landini Legend 120. Compare with similar tractors from Landini and other manufacturers.

Quick Specs

Category

Utility

Engine Power Output

117hp

Operating Weight

12,128 lb

Strength vs Median

Engine Power Output
Excellent
About 130 % more than median Utility tractor
Engine Displacement
Excellent
About 110 % more than median Utility tractor
Operating Weight
Excellent
About 150 % more than median Utility tractor
3-Pt Hitch Capacity
Excellent
Significantly more than median Utility tractor

The Landini Legend 120 is a powerful utility tractor built from 2001 to 2003. It has a strong 4-wheel drive system and a Perkins diesel engine with 6 cylinders. This engine can produce 117 horsepower,...

Photo Gallery

Image Gallery
Landini Legend 120 Tractor
Landini Legend 120 Tractor
Landini Legend 120 Tractor

Specifications

Manufacturer
Landini
Model
Legend 120
Category
Utility
Manufacturing Years
2001 - 2003
Manufacturer
Perkins
Model
1006-60T
Power Output
117hp
Rated RPM
2,200RPM
Cylinders
6
Displacement
365ci
Bore
3.94in
Stroke
5in

Engine Power Output Comparison of Landini Legend 120 vs. Other Utility Tractors

Loading Chart...

Length
201.6in
Height
109.4in
Operating Weight
12,128lb

Operating Weight Comparison of Landini Legend 120 vs. Other Utility Tractors

Loading Chart...

Hitch Type
Three-Point Hitch
Hitch Category
III
Hitch Position
Rear
Hitch Capacity
15,437lb
Chassis Type
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Brake Type
Wet disc
Type
Cabin with air conditioning

Compare to Other Tractors

How the Landini Legend 120 compares to other Utility tractors

SpecThis modelUtility medianDifferencePercentile
Engine Power117 hp50.3 hp+133%89th
Engine Displacement365 ci175 ci+109%87th
Cylinders64+50%93rd
Forward Gears10212+750%99th
Operating Weight12,128 lb4,850 lb+150%90th
Length202 in134 in+50%94th
Height109 in92.9 in+18%86th
3-Point Hitch Capacity15,437 lb3,090 lb+400%95th

Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,0324,952 models).

Commonly compared Landini tractors

TractorEngine PowerOperating WeightYearsCompare
Landini Landforce 125120 hp9,240 lbCompare →
Landini Landforce 115112 hp9,240 lbCompare →
Landini Mythos 115 TDI109 hp10,450 lbCompare →
Landini Powerfarm 110102 hp7,606 lbCompare →
Landini 4-105101 hpCompare →

Commonly compared tractors with similar horsepower from other brands

TractorEngine PowerOperating WeightYearsCompare
Allis Chalmers 7000117 hp9,550 lb1975–1979Compare →
AGCO RT110A116.9 hp12,200 lbCompare →
AGCO S.A. MT545B116.3 hp14,835 lbCompare →
Allis Chalmers 8010119 hp12,630 lb1982–1985Compare →
Agrinar T-120119.3 hp4,580 lbCompare →

Frequently Asked Questions

What years was the Landini Legend 120 manufactured?

The Landini Legend 120 was manufactured from 2001 - 2003.

What is the engine power output of the Landini Legend 120?

The Landini Legend 120 has an engine power output of 117 hp.

How many cylinders does the Landini Legend 120 have?

The Landini Legend 120 is equipped with a 6-cylinder engine.

What is the operating weight of the Landini Legend 120?

The operating weight of the Landini Legend 120 is approximately 12,128 lb.

What hitch category is the Landini Legend 120?

The Landini Legend 120 is a Category III hitch.

What maintenance does the Landini Legend 120 require?

Regular maintenance for the Landini Legend 120 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
