Utility tractorsSpec sheet
Landini Trekker 105
The Landini Trekker 105 is a powerful utility tractor built for tough jobs on the farm. It has a strong Perkins diesel engine with four cylinders and a turbocharger. This engine gives the tractor 98 horsepower, which is above average for its class. The tractor is big and heavy, weighing 10,318 pounds, making it very stable for hard work. This tractor has a mechanical shuttle transmission with 16 forward gears and 8 reverse gears. This gives the driver lots of options for different speeds and tasks. The Trekker 105 uses hydrostatic power steering, which makes it easy to turn and control. It's 138 inches long, 65.5 inches wide, and 91 inches tall. It has good ground clearance at 12.5 inches, helping it move over rough ground. The tractor has a Category II hitch in the back for attaching different tools and equipment.
ManufacturerLandiniPower98 hp(73.1 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionMechanical shuttle
Key specifications
- Category
- Utility
- Engine power
- 98hp
- Operating weight
- 10,318 lb
- Transmission
- Mechanical shuttle
Category comparison
Trekker 105 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
98 hp · 82nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Trekker 105 ranks at the 82nd percentile for engine power among recorded utility tractors.
Overview
About the Landini Trekker 105
The Landini Trekker 105 is a powerful utility tractor built for tough jobs on the farm. It has a strong Perkins diesel engine with four cylinders and a turbocharger. This engine gives the tractor 98 horsepower, which is above average for its class. The tractor is big and heavy, weighing 10,318 pounds, making it very stable for hard work. This tractor has a mechanical shuttle transmission with 16 forward gears and 8 reverse gears. This gives the driver lots of options for different speeds and tasks. The Trekker 105 uses hydrostatic power steering, which makes it easy to turn and control. It's 138 inches long, 65.5 inches wide, and 91 inches tall. It has good ground clearance at 12.5 inches, helping it move over rough ground. The tractor has a Category II hitch in the back for attaching different tools and equipment.
Full specifications
Recorded specifications
General
| Manufacturer | Landini |
|---|---|
| Model | Trekker 105 |
| Category | Utility tractor |
| Operating weight | 10,318lb(4,680 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | 1104C-44T |
| Power | 98hp(73.08 kW) |
| Cylinders | 4 |
| Displacement | 268.5ci(4.4 L) |
Transmission
| Type | Mechanical shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Chassis & drive
| Steering | Hydrostatic power |
|---|
Dimensions
| Length | 138in(3,505 mm) |
|---|---|
| Width | 65.5in(1,664 mm) |
| Height | 91in(2,311 mm) |
| Operating weight | 10,318lb(4,680 kg) |
Closest alternatives
Trekker 105 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the Trekker 105 are the New Holland T4.95 and the New Holland TL100A. The New Holland T4.95 matches it on rated power and weighs 2,870 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The New Holland TL100A matches it on rated power and weighs 1,830 lb less, carrying 87 lb per horsepower against 105 lb. Of the 3 models, the Trekker 105 has the highest weight per horsepower at 105 lb per hp.
| Spec | Landini Trekker 105 | New Holland T4.95 | New Holland TL100A |
|---|---|---|---|
| Engine power | 98 hp73.1 kW | 98 hp73.1 kW | 98 hp73.1 kW |
| Operating weight | 10,318 lb4,680 kg | 7,451 lb3,380 kg | 8,488 lb3,850 kg |
| Weight per hp | 105 lb/hp64 kg/kW | 76 lb/hp46 kg/kW | 87 lb/hp53 kg/kW |
| Displacement | 268.5 ci4.4 L | 207 ci3.39 L | 273 ci4.47 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Mechanical shuttle | Mechanical shuttle | Mechanical shuttle |
| Drive | - | 4WD | 2WD |
| Years built | - | 2013-2014 | 2004-2008 |
Calculators
Calculators for the Trekker 105
PTO power
About 81 to 88 PTO hp
Estimated from the 98 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 98 hp tractor can run
Maximum size is about a 11.5 ft rotary cutter or a 10 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
122 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
98 hp is 73.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Trekker 105 vs. Utility median
Landini Trekker 105 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 98 hp | 55 hp | +78% | 82nd |
| Engine Displacement | 269 ci | 183 ci | +47% | 77th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 10,318 lb | 5,303 lb | +95% | 86th |
| Length | 138 in | 137 in | +1% | 52nd |
| Width | 65.5 in | 66 in | -1% | 49th |
| Height | 91 in | 94.1 in | -3% | 42nd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Landini models
Other manufacturers
Models with similar horsepower
Gallery

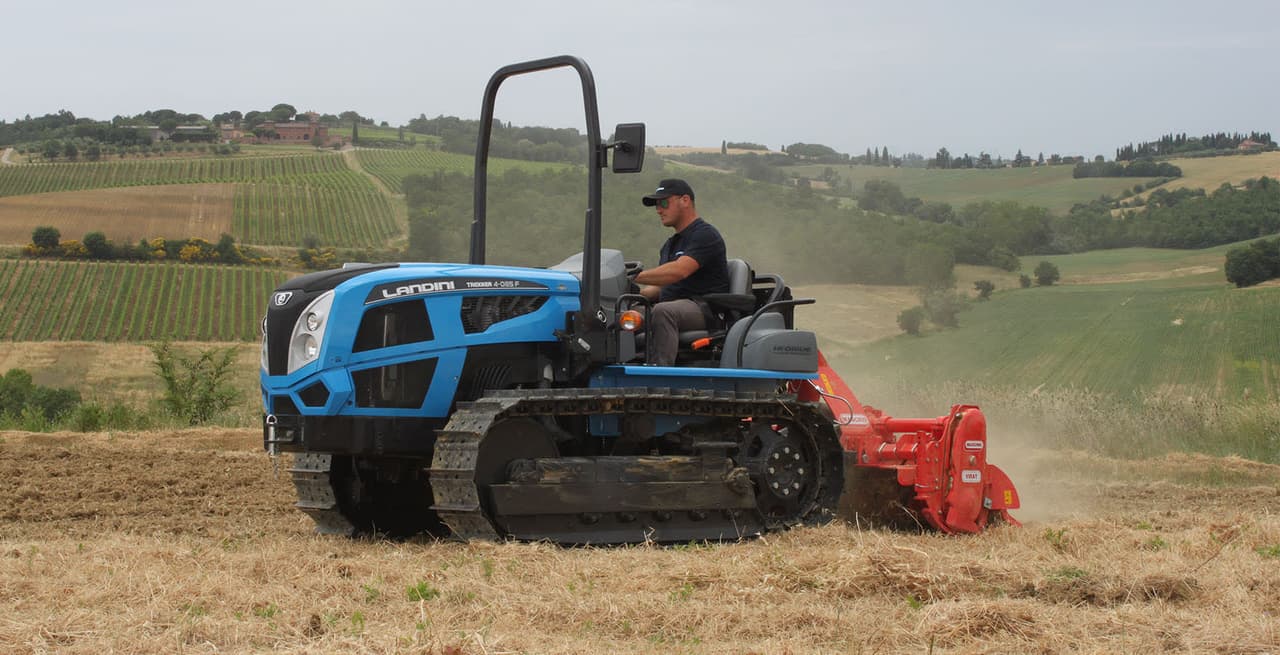

Landini Trekker 105 photos
FAQ
Frequently asked questions
How powerful is the Landini Trekker 105?
The Landini Trekker 105 has an engine power output of 98 hp. It is powered by a 4-cylinder engine displacing 268.5 ci.
What hitch category is the Landini Trekker 105?
The Landini Trekker 105 uses a Category II hitch.
What is the working weight of the Landini Trekker 105?
The operating weight of the Landini Trekker 105 is approximately 10,318 lb.
What type of transmission does the Landini Trekker 105 have?
The Landini Trekker 105 uses a Mechanical shuttle transmission offering 16 forward gears.
What routine service does the Landini Trekker 105 need?
Regular maintenance for the Landini Trekker 105 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
