Lanz D4506 Bauern Bulldog
The Lanz D4506 Bauern Bulldog is a utility tractor designed for standard tread applications. It features a 2WD chassis with a gear transmission, offering 6 forward gears and 2 reverse gears. This tractor is powered by a single-cylinder, liquid-cooled diesel engine made by Lanz. The engine has a displacement of 170.9 ci, which is about average for tractors in its class. It runs at a low 900 rpm and produces 14.7 hp, making it suitable for light farm work. The D4506 Bauern Bulldog has a compact design, measuring 102.4 inches long, 54.5 inches wide, and 74 inches tall. It weighs 2,646 lb, which is on the lighter side for tractors. The tractor is equipped with agricultural tires both front and rear. It offers good ground clearance, with 14.2 inches at the front axle and 17.7 inches at the rear axle. The tractor's size and weight make it easy to maneuver in tight spaces, ideal for small to medium-sized farms.
ManufacturerLanzPower14.7 hpEngine1-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 15hp
- Operating Weight
- 2,646 lb
- Transmission
- Gear
At a glance
How the D4506 Bauern Bulldog compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
14.7 hp · 2nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The D4506 Bauern Bulldog ranks at the 2nd percentile for engine power among recorded utility tractors.
Overview
About the Lanz D4506 Bauern Bulldog
The Lanz D4506 Bauern Bulldog is a utility tractor designed for standard tread applications. It features a 2WD chassis with a gear transmission, offering 6 forward gears and 2 reverse gears. This tractor is powered by a single-cylinder, liquid-cooled diesel engine made by Lanz. The engine has a displacement of 170.9 ci, which is about average for tractors in its class. It runs at a low 900 rpm and produces 14.7 hp, making it suitable for light farm work. The D4506 Bauern Bulldog has a compact design, measuring 102.4 inches long, 54.5 inches wide, and 74 inches tall. It weighs 2,646 lb, which is on the lighter side for tractors. The tractor is equipped with agricultural tires both front and rear. It offers good ground clearance, with 14.2 inches at the front axle and 17.7 inches at the rear axle. The tractor's size and weight make it easy to maneuver in tight spaces, ideal for small to medium-sized farms.
Full specifications
Every recorded spec
General
| Manufacturer | Lanz |
|---|---|
| Model | D4506 Bauern Bulldog |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 2,646lb |
Engine
| Make | Lanz |
|---|---|
| Power | 14.7hp |
| Cylinders | 1 |
| Displacement | 170.9ci |
| Bore | 5.71in |
| Stroke | 6.69in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 102.4in |
|---|---|
| Width | 54.5in |
| Height | 74in |
| Operating weight | 2,646lb |
Capacities
| Cooling system | 7.4gal |
|---|
Head to head
D4506 Bauern Bulldog vs. Utility median
How the Lanz D4506 Bauern Bulldog compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 14.7 hp | 55 hp | -73% | 2nd |
| Engine Displacement | 171 ci | 183 ci | -7% | 46th |
| Cylinders | 1 | 4 | -75% | 1st |
| Forward Gears | 6 | 12 | -50% | 11th |
| Operating Weight | 2,646 lb | 5,303 lb | -50% | 18th |
| Length | 102 in | 137 in | -25% | 10th |
| Width | 54.5 in | 66 in | -17% | 26th |
| Height | 74 in | 94.1 in | -21% | 19th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Lanz tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Lanz Bulldog D1616 | 16 hp | — | — | Compare → |
| Lanz Bulldog D1706 | 17 hp | — | — | Compare → |
| Lanz Bulldog D1266 | 12 hp | — | — | Compare → |
| Lanz Bulldog HL | 12 hp | — | — | Compare → |
| Lanz Bulli D1106 | 11 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bolens G152 | 15 hp | 1,034 lb | — | Compare → |
| Bolens G154 | 15 hp | 1,124 lb | — | Compare → |
| Bolens H1502 | 15 hp | 1,080 lb | — | Compare → |
| Cub Cadet 1515 | 15 hp | 498 lb | 2002+ | Compare → |
| Cub Cadet 1525 | 15 hp | 500 lb | — | Compare → |
Explore
Lanz siblings
Explore
Similar-spec models
Gallery

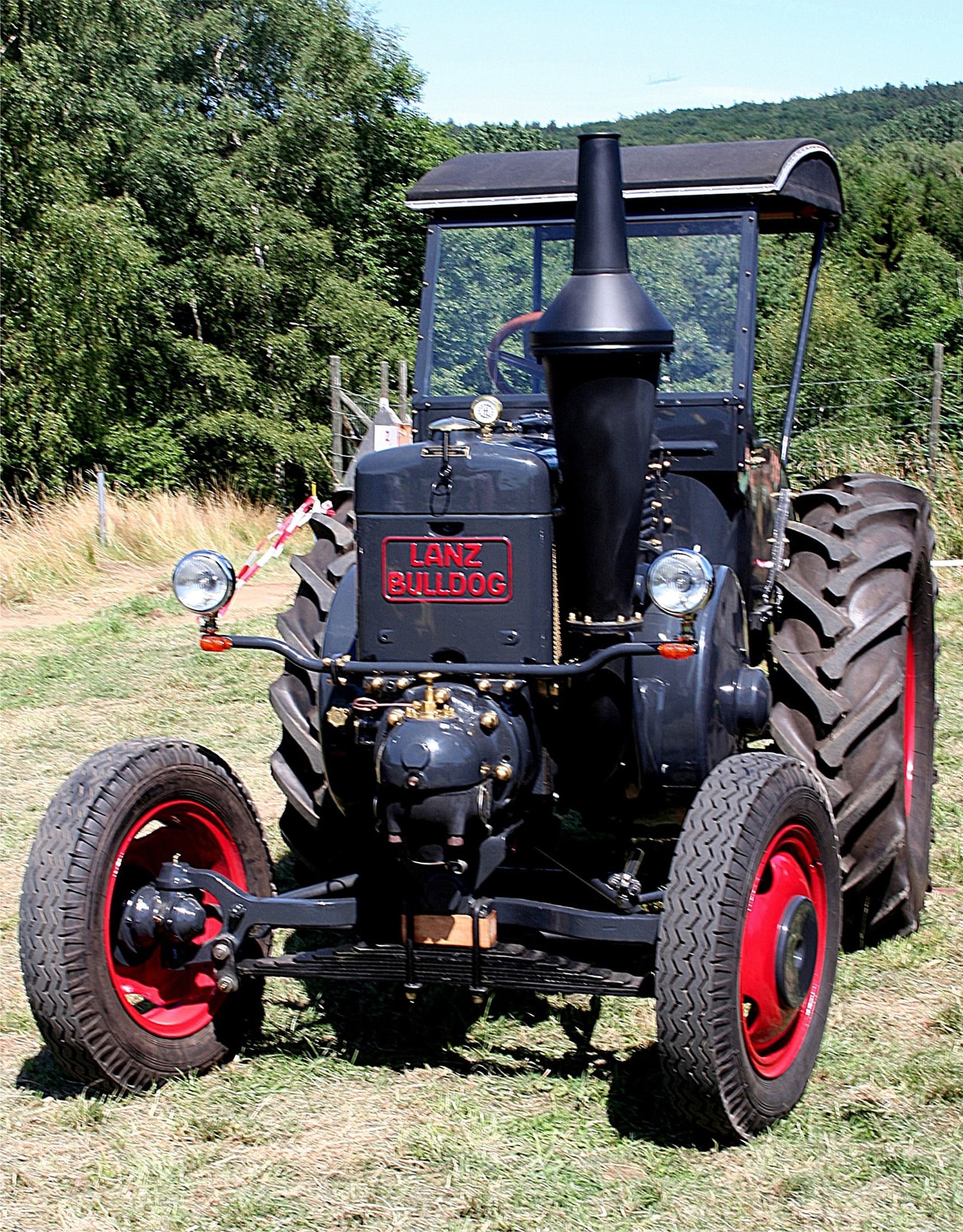

Lanz D4506 Bauern Bulldog photos
FAQ
Common questions
How powerful is the Lanz D4506 Bauern Bulldog?
The Lanz D4506 Bauern Bulldog has an engine power output of 14.7 hp. It is powered by a 1-cylinder engine displacing 170.9 ci.
What type of transmission does the Lanz D4506 Bauern Bulldog have?
The Lanz D4506 Bauern Bulldog uses a Gear transmission offering 6 forward gears.
What is the working weight of the Lanz D4506 Bauern Bulldog?
The operating weight of the Lanz D4506 Bauern Bulldog is approximately 2,646 lb.
What routine service does the Lanz D4506 Bauern Bulldog need?
Regular maintenance for the Lanz D4506 Bauern Bulldog includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
