LS R4010
The LS R4010 is a utility tractor built for versatility and performance. It features a 4x4 MFWD chassis with four-wheel drive, making it capable in various terrains. The tractor is powered by a Mitsubishi S4QL-D diesel engine with four cylinders and liquid cooling. This engine provides 41 horsepower, which is average for its class, and runs at a high 2600 RPM. The R4010 comes with a synchro shuttle transmission, offering 16 forward and 16 reverse gears for flexible operation. It has a three-point hitch (category I) for attaching implements, and hydrostatic power steering for easy control. The tractor's compact size, measuring 132.2 inches long, 55.9 inches wide, and 95.1 inches tall, makes it suitable for working in tight spaces. With an operating weight of 3813 pounds, it's sturdy enough for various tasks while being lighter than many larger tractors. The R4010 is equipped with a ROPS (Roll-Over Protective Structure) for operator safety and uses an electric starter for convenient operation.
ManufacturerLSPower41 hpEngine4-cylTransSynchro shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 41hp
- Operating Weight
- 3,813 lb
- Transmission
- Synchro shuttle
At a glance
How the R4010 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
41 hp · 35th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The R4010 ranks at the 35th percentile for engine power among recorded utility tractors.
Overview
About the LS R4010
The LS R4010 is a utility tractor built for versatility and performance. It features a 4x4 MFWD chassis with four-wheel drive, making it capable in various terrains. The tractor is powered by a Mitsubishi S4QL-D diesel engine with four cylinders and liquid cooling. This engine provides 41 horsepower, which is average for its class, and runs at a high 2600 RPM. The R4010 comes with a synchro shuttle transmission, offering 16 forward and 16 reverse gears for flexible operation. It has a three-point hitch (category I) for attaching implements, and hydrostatic power steering for easy control. The tractor's compact size, measuring 132.2 inches long, 55.9 inches wide, and 95.1 inches tall, makes it suitable for working in tight spaces. With an operating weight of 3813 pounds, it's sturdy enough for various tasks while being lighter than many larger tractors. The R4010 is equipped with a ROPS (Roll-Over Protective Structure) for operator safety and uses an electric starter for convenient operation.
Full specifications
Every recorded spec
General
| Manufacturer | LS |
|---|---|
| Model | R4010 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,813lb |
Engine
| Make | Mitsubishi |
|---|---|
| Model | S4QL-D |
| Power | 41hp |
| Cylinders | 4 |
| Displacement | 152.9ci |
| Bore | 3.46in |
| Stroke | 4.06in |
Transmission
| Type | Synchro shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Cab | ROPS |
Dimensions
| Length | 132.2in |
|---|---|
| Width | 55.9in |
| Height | 95.1in |
| Operating weight | 3,813lb |
Head to head
R4010 vs. Utility median
How the LS R4010 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 41 hp | 55 hp | -25% | 35th |
| Engine Displacement | 153 ci | 183 ci | -16% | 40th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 3,813 lb | 5,303 lb | -28% | 34th |
| Length | 132 in | 137 in | -3% | 44th |
| Width | 55.9 in | 66 in | -15% | 29th |
| Height | 95.1 in | 94.1 in | +1% | 52nd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared LS tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers ED40 | 41 hp | 3,527 lb | — | Compare → |
| AGCO ST40 | 40.1 hp | 3,323 lb | — | Compare → |
| AGCO ST41A | 40.1 hp | 3,000 lb | — | Compare → |
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
Explore
LS siblings
Explore
Similar-spec models
Gallery

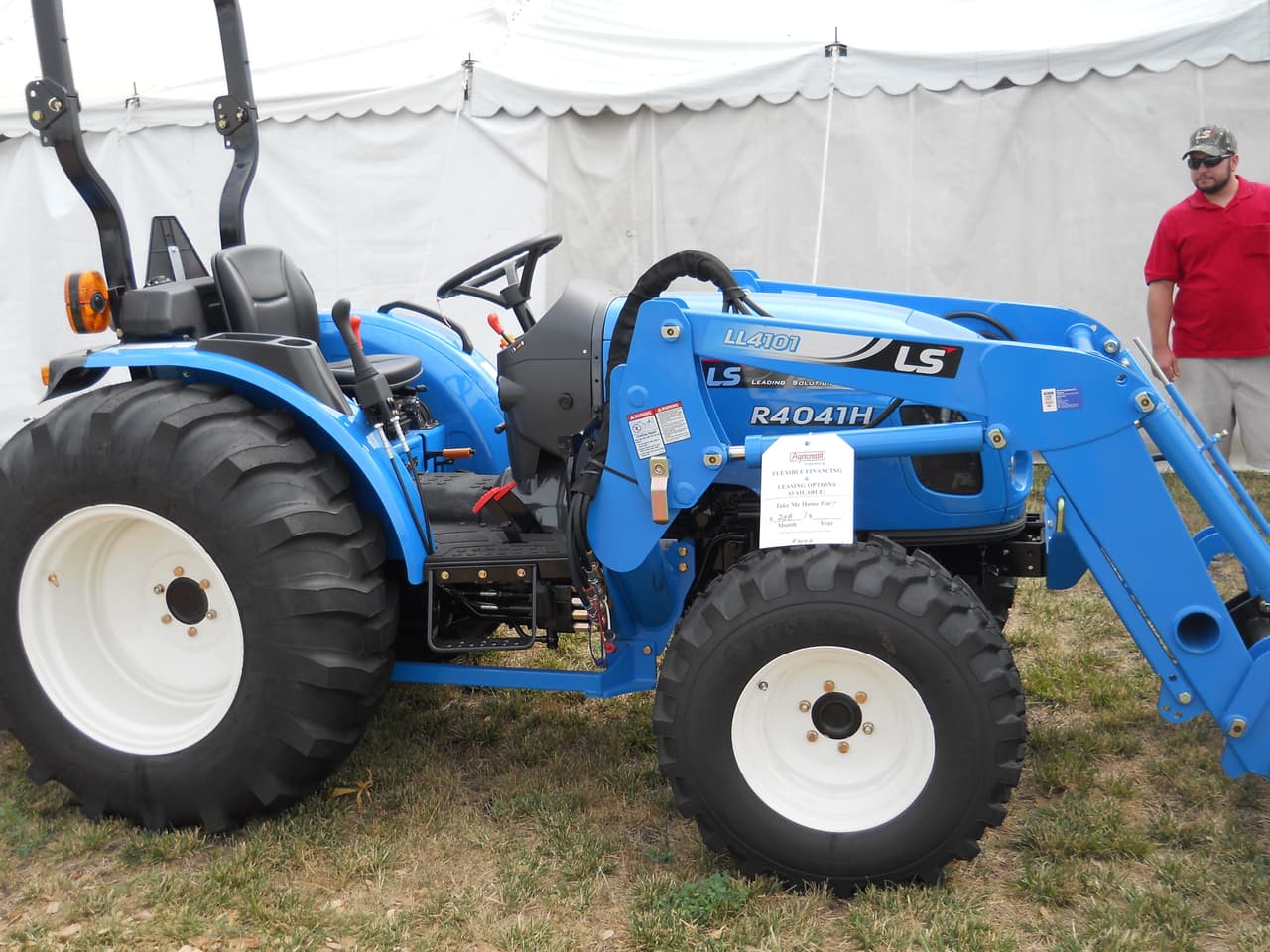

LS R4010 photos
FAQ
Common questions
How powerful is the LS R4010?
The LS R4010 has an engine power output of 41 hp. It is powered by a 4-cylinder engine displacing 152.9 ci.
What hitch category is the LS R4010?
The LS R4010 uses a Category I hitch.
What is the working weight of the LS R4010?
The operating weight of the LS R4010 is approximately 3,813 lb.
What type of transmission does the LS R4010 have?
The LS R4010 uses a Synchro shuttle transmission offering 16 forward gears.
What routine service does the LS R4010 need?
Regular maintenance for the LS R4010 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
