Utility tractorsSpec sheet
Mahindra 1526
The Mahindra 1526 is a utility tractor built for versatility and efficiency. It features a 4x4 MFWD drive system, which means it can handle tough terrain with ease. The tractor is powered by a Mitsubishi S3L2 engine, which is a 3-cylinder diesel engine that's cooled by liquid. This engine produces 25.6 hp, which is below average for tractors in its class, but it's still capable of handling many farm tasks. The Mahindra 1526 comes with a shuttle transmission that has 8 forward and 8 reverse gears, giving the operator plenty of options for different jobs. It has a three-point hitch at the rear, which can lift up to 2,646 lb - an above-average capacity for its size. The tractor also has a PTO (Power Take-Off) that runs at 540 rpm, allowing it to power various attachments. With its open operator station and two-post ROPS (Roll-Over Protective Structure), the Mahindra 1526 offers a good balance of safety and visibility for the driver.
ManufacturerMahindraPower25.6 hp(19.1 kW)Class25–40 HP tractors →Engine3-cylinderTransmissionShuttle
Key specifications
- Category
- Utility
- Engine power
- 26hp
- Operating weight
- 2,437 lb
- Transmission
- Shuttle
Category comparison
1526 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
25.6 hp · 17th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 1526 ranks at the 17th percentile for engine power among recorded utility tractors.
Overview
About the Mahindra 1526
The Mahindra 1526 is a utility tractor built for versatility and efficiency. It features a 4x4 MFWD drive system, which means it can handle tough terrain with ease. The tractor is powered by a Mitsubishi S3L2 engine, which is a 3-cylinder diesel engine that's cooled by liquid. This engine produces 25.6 hp, which is below average for tractors in its class, but it's still capable of handling many farm tasks. The Mahindra 1526 comes with a shuttle transmission that has 8 forward and 8 reverse gears, giving the operator plenty of options for different jobs. It has a three-point hitch at the rear, which can lift up to 2,646 lb - an above-average capacity for its size. The tractor also has a PTO (Power Take-Off) that runs at 540 rpm, allowing it to power various attachments. With its open operator station and two-post ROPS (Roll-Over Protective Structure), the Mahindra 1526 offers a good balance of safety and visibility for the driver.
Full specifications
Recorded specifications
General
| Manufacturer | Mahindra |
|---|---|
| Model | 1526 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 2,437lb(1,105 kg) |
Engine
| Make | Mitsubishi |
|---|---|
| Model | S3L2 |
| Power | 25.6hp(19.09 kW) |
| Cylinders | 3 |
| Displacement | 80.4ci(1.32 L) |
| Bore | 3.07in(77.98 mm) |
| Stroke | 3.62in(91.95 mm) |
Transmission
| Type | Shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD 4WD |
| Steering | Hydraulic power |
| Brakes | Wet disc |
| Cab | Open operator station with two-post ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 121.3in(3,081 mm) |
|---|---|
| Width | 63in(1,600 mm) |
| Height | 81.5in(2,070 mm) |
| Operating weight | 2,437lb(1,105 kg) |
Closest alternatives
1526 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 1526 are the Mahindra Max 26XL and the Kubota B2261. The Mahindra Max 26XL matches it on rated power and weighs 620 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Kubota B2261 matches it on rated power and weighs 610 lb less, carrying 71 lb per horsepower against 95 lb. Of the 3 models, the 1526 has the highest weight per horsepower at 95 lb per hp.
| Spec | Mahindra 1526 | Mahindra Max 26XL | Kubota B2261 |
|---|---|---|---|
| Engine power | 25.6 hp19.1 kW | 25.6 hp19.1 kW | 25.6 hp19.1 kW |
| Operating weight | 2,437 lb1,105 kg | 1,819 lb825 kg | 1,830 lb830 kg |
| Weight per hp | 95 lb/hp58 kg/kW | 71 lb/hp43 kg/kW | 71 lb/hp43 kg/kW |
| Displacement | 80.4 ci1.32 L | 80.4 ci1.32 L | 77 ci1.26 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Shuttle | Synchro-shuttle | Gear type |
| Drive | MFWD 4WD | 4WD | MFWD 4WD |
Calculators
Calculators for the 1526
PTO power
About 21 to 23 PTO hp
Estimated from the 25.6 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 25.6 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
111 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
25.6 hp is 19.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
1526 vs. Utility median
Mahindra 1526 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 25.6 hp | 55 hp | -53% | 17th |
| Engine Displacement | 80.4 ci | 183 ci | -56% | 12th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 2,437 lb | 5,303 lb | -54% | 16th |
| Length | 121 in | 137 in | -11% | 29th |
| Width | 63 in | 66 in | -5% | 43rd |
| Height | 81.5 in | 94.1 in | -13% | 29th |
| 3-Point Hitch Capacity | 2,646 lb | 3,197 lb | -17% | 37th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Mahindra models
Other manufacturers
Models with similar horsepower
Gallery

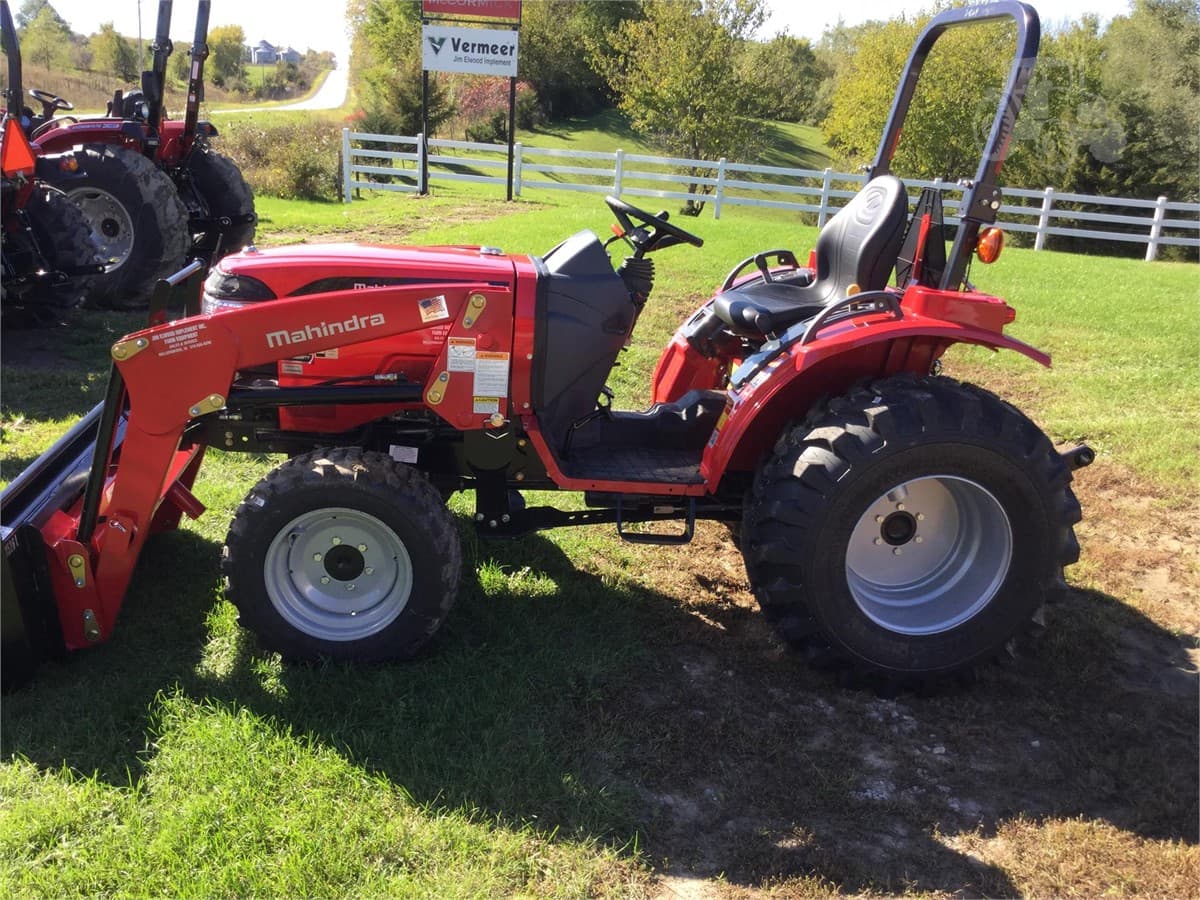

Mahindra 1526 photos
FAQ
Frequently asked questions
What is the engine power output of the Mahindra 1526?
Rated engine output for the Mahindra 1526 is 25.6 hp, delivered by a 3-cylinder engine. The engine displaces 80.4 ci.
Which transmission does the Mahindra 1526 use?
The Mahindra 1526 is equipped with a Shuttle transmission with 8 forward gears.
What type of hydraulic system does the Mahindra 1526 use?
Hydraulics on the Mahindra 1526 are Open center.
What hitch category is the Mahindra 1526?
The Mahindra 1526 uses a Category I hitch with a lift capacity of 2,646 lb.
What is the operating weight of the Mahindra 1526?
The Mahindra 1526 has an operating weight of about 2,437 lb.
How do I maintain a Mahindra 1526?
Routine service for the Mahindra 1526 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
