Utility tractorsSpec sheet
Massey Ferguson 1760M
The Massey Ferguson 1760M is a versatile utility tractor designed for various farm tasks. It features a 4x4 MFWD (Mechanical Front Wheel Drive) chassis with power steering, making it easy to maneuver in tight spaces. The tractor is equipped with a 12-gear transmission, offering flexibility for different jobs. Under the hood, the 1760M boasts a Shibaura N4LDI-TA engine. This diesel-powered, liquid-cooled engine has 4 cylinders and is turbocharged with intercooling for better performance. It has an average displacement of 135.2 ci and produces 59.9 hp at 2600 rpm, which is above average for its class. The engine meets Tier IV emissions standards, using exhaust-gas recirculation and a diesel oxidation catalyst to reduce pollution. The tractor runs on 9.5x16 front tires and larger 16.9x26 rear tires, providing good traction and stability. With its open center hydraulic system and electric starter, the Massey Ferguson 1760M is a reliable workhorse for farmers looking for a capable utility tractor.
Key specifications
- Category
- Utility
- Engine power
- 60hp
Category comparison
1760M compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
59.9 hp · 53rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 1760M ranks at the 53rd percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 1760M
The Massey Ferguson 1760M is a versatile utility tractor designed for various farm tasks. It features a 4x4 MFWD (Mechanical Front Wheel Drive) chassis with power steering, making it easy to maneuver in tight spaces. The tractor is equipped with a 12-gear transmission, offering flexibility for different jobs. Under the hood, the 1760M boasts a Shibaura N4LDI-TA engine. This diesel-powered, liquid-cooled engine has 4 cylinders and is turbocharged with intercooling for better performance. It has an average displacement of 135.2 ci and produces 59.9 hp at 2600 rpm, which is above average for its class. The engine meets Tier IV emissions standards, using exhaust-gas recirculation and a diesel oxidation catalyst to reduce pollution. The tractor runs on 9.5x16 front tires and larger 16.9x26 rear tires, providing good traction and stability. With its open center hydraulic system and electric starter, the Massey Ferguson 1760M is a reliable workhorse for farmers looking for a capable utility tractor.
Full specifications
Recorded specifications
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 1760M |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2018+ |
Engine
| Make | Shibaura |
|---|---|
| Model | N4LDI-TA |
| Power | 59.9hp(44.67 kW) |
| Cylinders | 4 |
| Displacement | 135.2ci(2.22 L) |
| Bore | 3.31in(84 mm) |
| Stroke | 3.94in(100 mm) |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD 4WD |
| Steering | Power |
Hydraulics
| Type | Open center |
|---|
Tires
| Front | 9.5x16Convert |
|---|---|
| Rear | 16.9x26Convert |
Closest alternatives
1760M compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 1760M are the Massey Ferguson 352 and the Zetor 5340. The Massey Ferguson 352 matches it on rated power. The Zetor 5340 matches it on rated power. It entered production in 1995, 23 years before the 1760M.
| Spec | Massey Ferguson 1760M | Massey Ferguson 352 | Zetor 5340 |
|---|---|---|---|
| Engine power | 59.9 hp44.7 kW | 59.9 hp44.7 kW | 59.9 hp44.7 kW |
| Operating weight | - | 5,512 lb2,500 kg | 8,223 lb3,730 kg |
| Weight per hp | - | 92 lb/hp56 kg/kW | 137 lb/hp84 kg/kW |
| Displacement | 135.2 ci2.22 L | 152.7 ci2.5 L | 219.4 ci3.6 L |
| Cylinders | 4 | 3 | 4 |
| Transmission | - | Manual | Partially synchronized |
| Drive | MFWD 4WD | 2WD | 4WD |
| Years built | 2018+ | - | 1995-1997 |
Calculators
Calculators for the 1760M
PTO power
About 50 to 54 PTO hp
Estimated from the 59.9 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 59.9 hp tractor can run
Maximum size is about a 7 ft rotary cutter or a 6 ft tiller. The calculator also sizes discs, plows and balers.
Units
59.9 hp is 44.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 16.9x26 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Category medians
1760M vs. Utility median
Massey Ferguson 1760M compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 59.9 hp | 55 hp | +9% | 53rd |
| Engine Displacement | 135 ci | 183 ci | -26% | 33rd |
| Cylinders | 4 | 4 | at median | 50th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 5,383–5,720 models).
Same manufacturer
Other Massey Ferguson models
Other manufacturers
Models with similar horsepower
Gallery

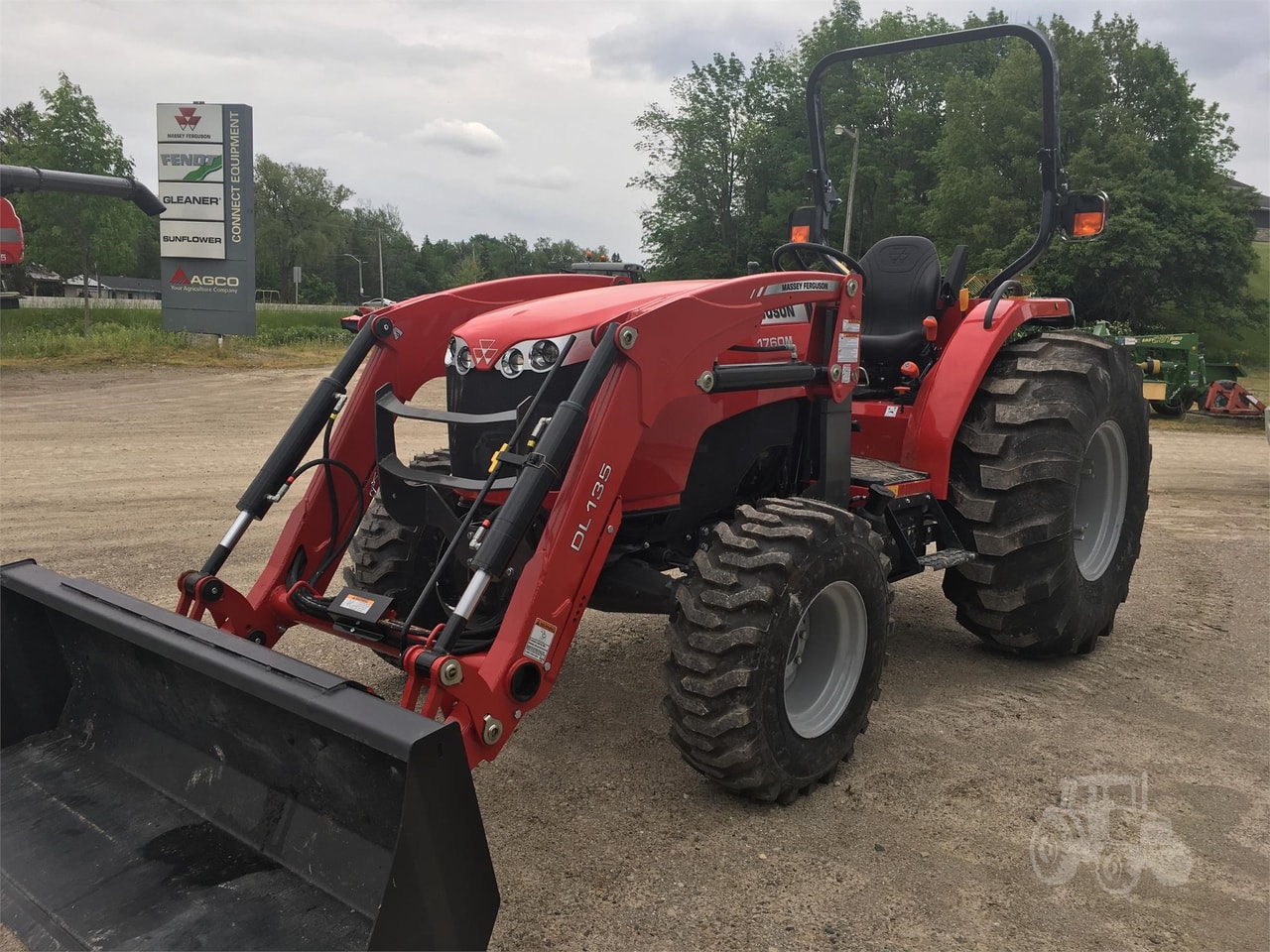

Massey Ferguson 1760M photos
FAQ
Frequently asked questions
When was the Massey Ferguson 1760M made?
The Massey Ferguson 1760M entered production in 2018.
What hydraulics does the Massey Ferguson 1760M have?
The Massey Ferguson 1760M uses an Open center hydraulic system.
What are the factory tire sizes for the Massey Ferguson 1760M?
The Massey Ferguson 1760M comes with 9.5x16 front tires and 16.9x26 rear tires.
What is the engine power output of the Massey Ferguson 1760M?
Rated engine output for the Massey Ferguson 1760M is 59.9 hp, delivered by a 4-cylinder engine. The engine displaces 135.2 ci.
How do I maintain a Massey Ferguson 1760M?
Routine service for the Massey Ferguson 1760M covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
