Massey Ferguson

275

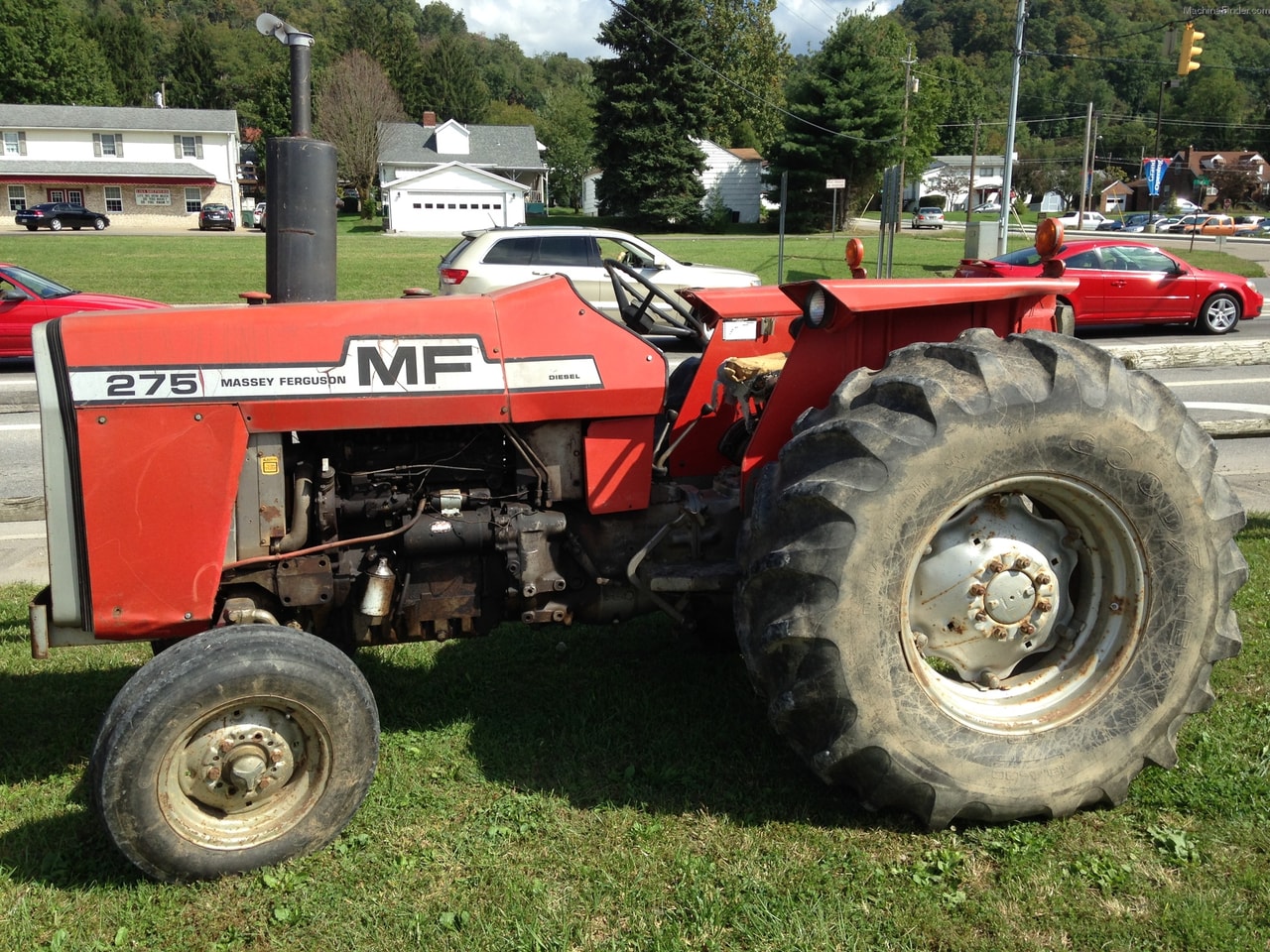

The Massey Ferguson 275 tractor is a multi-purpose utility tractor that was part of the 200 Series manufactured between 1975 and 1983. It featured a 4-cylinder Perkins A4.248 liquid-cooled diesel engine with a displacement of 248 cubic inches, providing 67 horsepower at the PTO. The tractor was equipped with a Multi-Power transmission offering 12 forward and 4 reverse gears, and it came with power-assisted steering making it easier to manage. The operating weight was listed as 6,610 pounds, with open operator station options, and it also had the capability to attach a Massey Ferguson 236 front-loader.

Technical Specifications

Category
['Utility']
Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power assisted
Transmission - Type
Multi-Power
Transmission - Forward Gears
12
Transmission - Reverse Gears
4
Transmission - Total Gears
-
Engine - Manufacturer
Perkins
Engine - Model
A4.248
Engine - Cooling Type
Liquid-cooled
Engine - Cylinder Orientation
Vertical
Engine - Valve Configuration
-
Engine - Fuel Type
Diesel
Engine - Induction Type
Naturally aspirated
Engine - Cylinders
4
Engine - Displacement (ci)
248
Engine - Bore (in)
3.975
Engine - Stroke (in)
5
Engine - Rated RPM
2000
Engine - Power Output (hp)
67
Coolant Capacity (qts)
12
Front Tire Diameter (in)
30
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Length (in)
148.8
Width (in)
74
Height (in)
68.1
Operating Weight (lb)
6610
Manufacture - Start Year
1975
Manufacture - End Year
1983
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
4100
Operator Station Type
Open
Starter Type
Electric
PTO Type
Live
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-
Brake Type
Differential hydraulic wet disc
Hydraulic System Type
Open center
