Row Crop tractorsSpec sheet
Massey Ferguson 6170
The Massey Ferguson 6170 is a row crop tractor made from 1995 to 1998. It has a 2WD drive type and power steering, making it easy to handle in the fields. The tractor has a 32-speed transmission with both forward and reverse gears, giving farmers lots of options for different tasks. Under the hood, the 6170 has a Perkins 1006-6 diesel engine with 6 cylinders. The engine is liquid-cooled and puts out 101.8 hp at 2200 rpm, which is about average power for tractors in its class. It has a displacement of 365 cubic inches, which is also average. The tractor weighs 11,153 pounds and measures 178 inches long, 76 inches wide, and 109 inches tall. It has a rear Type II hitch and an open center hydraulic system, which are useful for attaching and powering various farm implements. Some extra features of the 6170 include a maximum torque of 299.8 lb-ft at 1255 rpm and a torque rise of 28.7%. The hydraulic system can pump 13.3 gallons per minute at minimum pressure. The tractor is relatively quiet, with a sound level of 75.5 dB(A) at the operator's ear during normal use. It can pull 5,690 pounds at 5.83 mph in 14th gear, showing good performance for field work.
ManufacturerMassey FergusonPower101.8 hp(75.9 kW)Class100–150 HP tractors →Engine6-cylinderTransmissionSynchronized / Four-speed power shift
Key specifications
- Category
- Row Crop
- Engine power
- 102hp
- Operating weight
- 11,153 lb
- Transmission
- Synchronized / Four-speed power shift
Category comparison
6170 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
101.8 hp · 26th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 6170 ranks at the 26th percentile for engine power among recorded row crop tractors.
Overview
About the Massey Ferguson 6170
The Massey Ferguson 6170 is a row crop tractor made from 1995 to 1998. It has a 2WD drive type and power steering, making it easy to handle in the fields. The tractor has a 32-speed transmission with both forward and reverse gears, giving farmers lots of options for different tasks. Under the hood, the 6170 has a Perkins 1006-6 diesel engine with 6 cylinders. The engine is liquid-cooled and puts out 101.8 hp at 2200 rpm, which is about average power for tractors in its class. It has a displacement of 365 cubic inches, which is also average. The tractor weighs 11,153 pounds and measures 178 inches long, 76 inches wide, and 109 inches tall. It has a rear Type II hitch and an open center hydraulic system, which are useful for attaching and powering various farm implements. Some extra features of the 6170 include a maximum torque of 299.8 lb-ft at 1255 rpm and a torque rise of 28.7%. The hydraulic system can pump 13.3 gallons per minute at minimum pressure. The tractor is relatively quiet, with a sound level of 75.5 dB(A) at the operator's ear during normal use. It can pull 5,690 pounds at 5.83 mph in 14th gear, showing good performance for field work.
Full specifications
Recorded specifications
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 6170 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1995–1998 |
| Operating weight | 11,153lb(5,059 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | 1006-6 |
| Power | 101.8hp(75.91 kW) |
| Cylinders | 6 |
| Displacement | 365ci(5.98 L) |
| Bore | 3.94in(100.1 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Synchronized / Four-speed power shift |
|---|---|
| Forward gears | 32 |
| Reverse gears | 32 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 178in(4,521 mm) |
|---|---|
| Width | 76in(1,930 mm) |
| Height | 109in(2,769 mm) |
| Operating weight | 11,153lb(5,059 kg) |
Capacities
| Cooling system | 6.6gal(24.98 L) |
|---|
Closest alternatives
6170 compared with the nearest models by horsepower
The closest row crop models to the Massey Ferguson 6170 by rated horsepower are the Renault 113-12 TX and the Renault 113-14 TX. The Renault 113-12 TX matches it on rated power and weighs 360 lb more. The Renault 113-14 TX matches it on rated power and weighs 360 lb more. Of the 3 models, the 6170 has the lowest weight per horsepower at 110 lb per hp.
| Spec | Massey Ferguson 6170 | Renault 113-12 TX | Renault 113-14 TX |
|---|---|---|---|
| Engine power | 101.8 hp75.9 kW | 101.9 hp76 kW | 101.9 hp76 kW |
| Operating weight | 11,153 lb5,059 kg | 11,510 lb5,221 kg | 11,508 lb5,220 kg |
| Weight per hp | 110 lb/hp67 kg/kW | 113 lb/hp69 kg/kW | 113 lb/hp69 kg/kW |
| Displacement | 365 ci5.98 L | 345.1 ci5.66 L | 345.1 ci5.66 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Synchronized / Four-speed power shift | Synchronized with creeper | Synchronized / Creeper |
| Drive | 2WD | 2WD | 4WD |
Calculators
Calculators for the 6170
PTO power
About 84 to 92 PTO hp
Estimated from the 101.8 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 101.8 hp tractor can run
Maximum size is about a 12 ft rotary cutter or a 10.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
127 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
101.8 hp is 75.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
6170 vs. Row Crop median
Massey Ferguson 6170 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 102 hp | 138 hp | -26% | 26th |
| Engine Displacement | 365 ci | 391 ci | -7% | 43rd |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 32 | 16 | +100% | 91st |
| Operating Weight | 11,153 lb | 12,307 lb | -9% | 41st |
| Length | 178 in | 180 in | -1% | 48th |
| Width | 76 in | 91.2 in | -17% | 12th |
| Height | 109 in | 114 in | -4% | 33rd |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 806–1,417 models).
Same manufacturer
Other Massey Ferguson models
Other manufacturers
Models with similar horsepower
Gallery

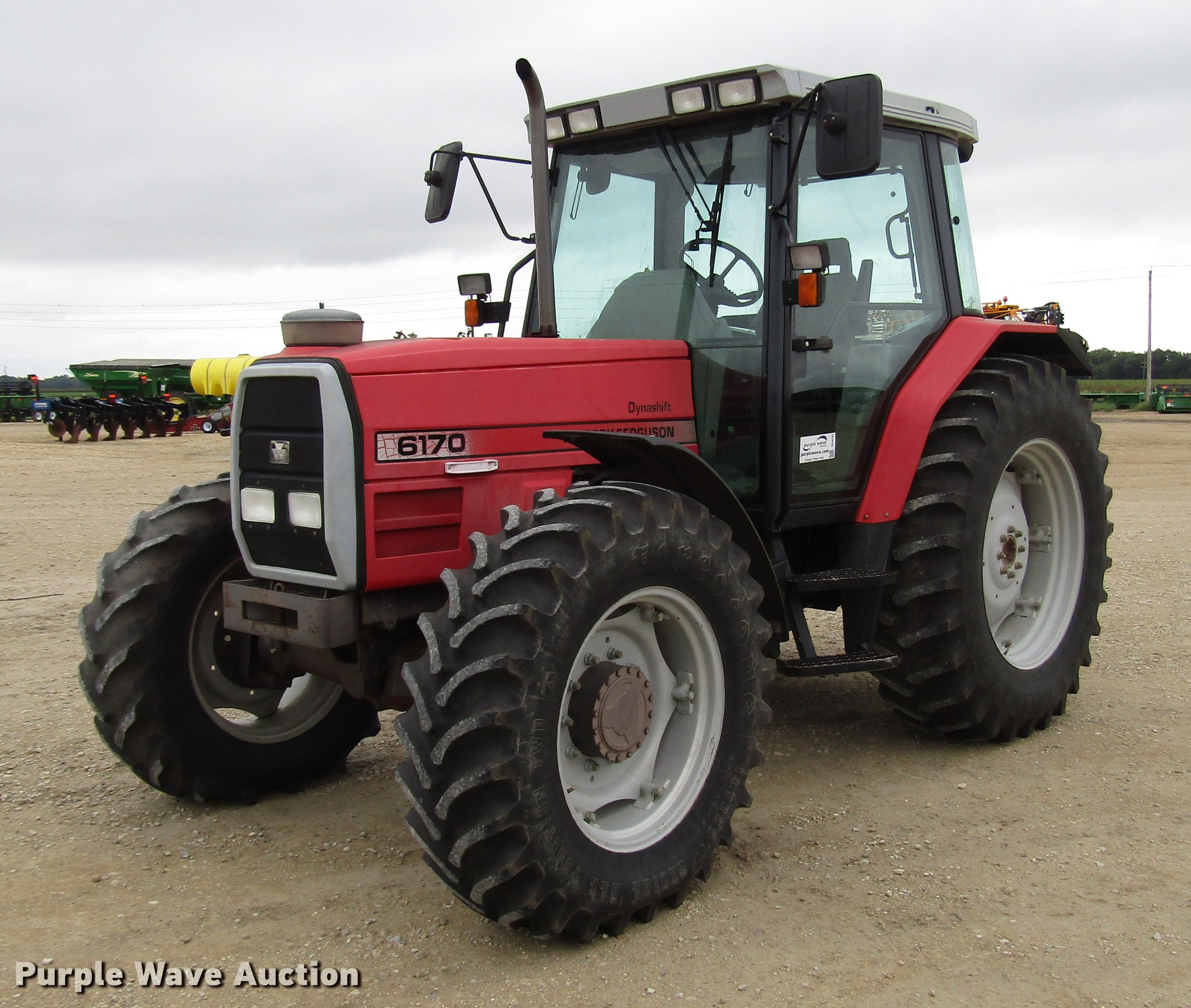

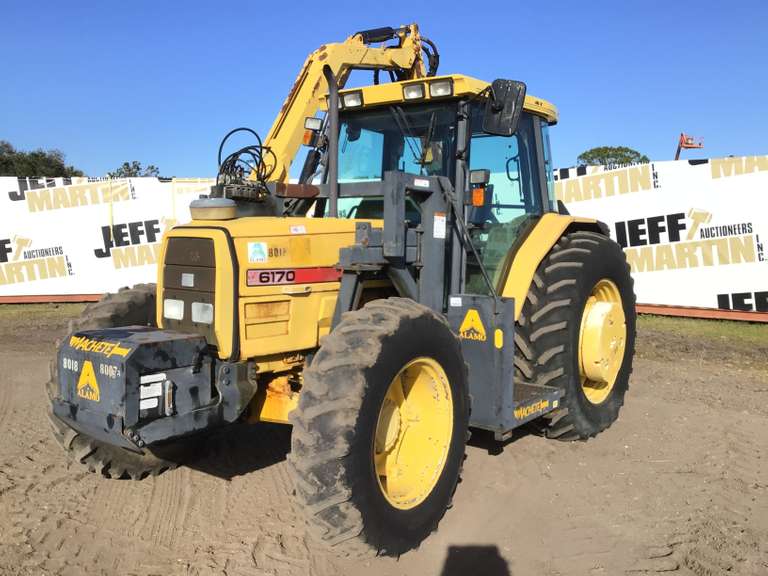

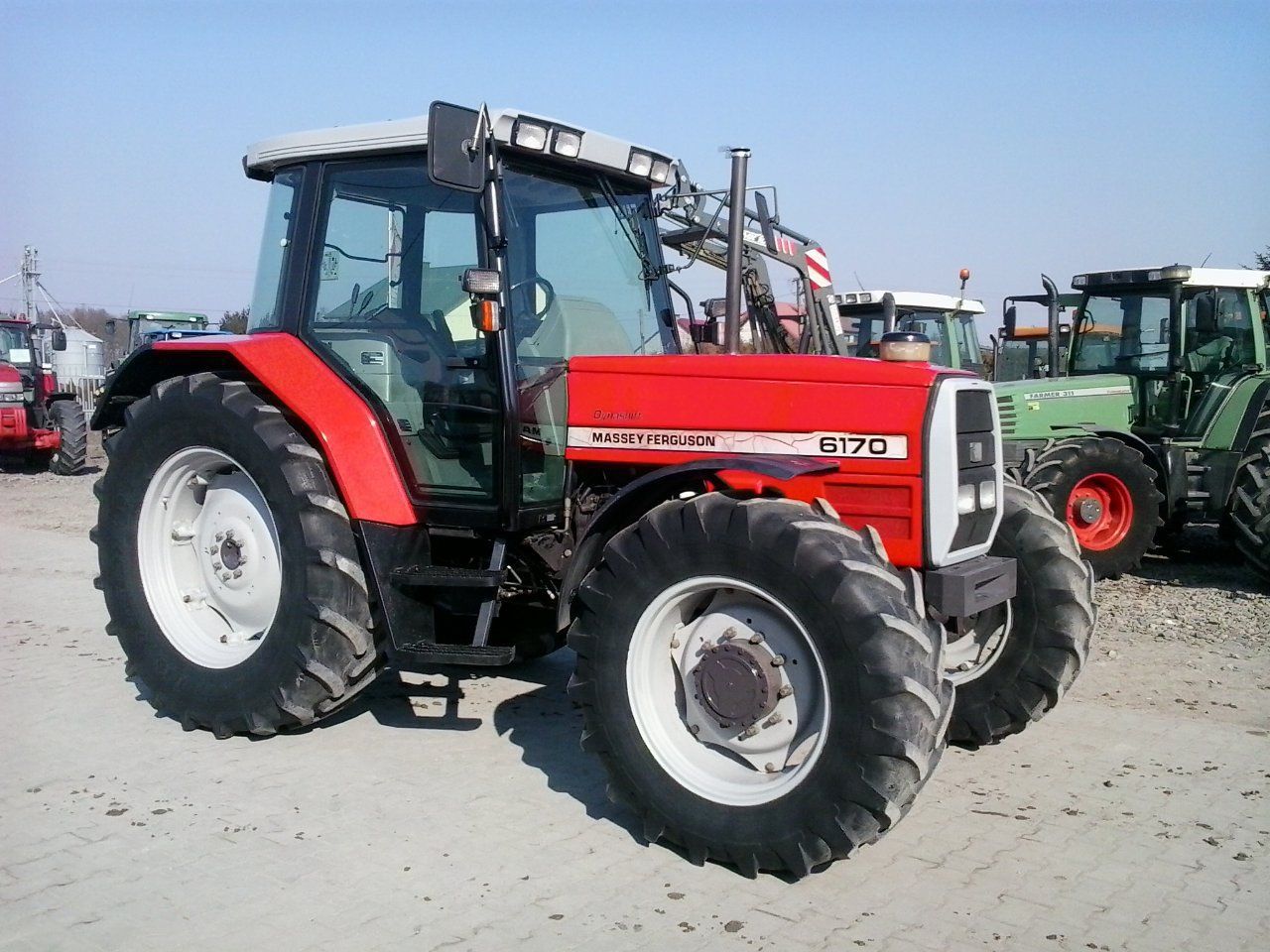

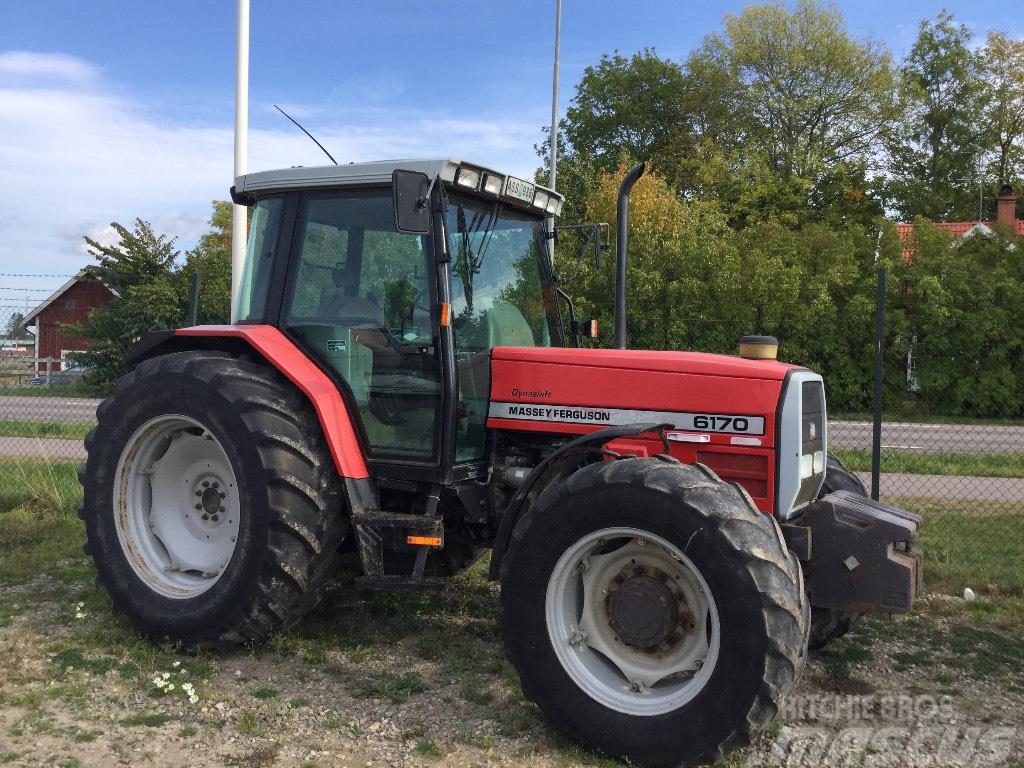

Massey Ferguson 6170 photos
FAQ
Frequently asked questions
What years was the Massey Ferguson 6170 manufactured?
Production of the Massey Ferguson 6170 ran from 1995 through 1998.
What type of hydraulic system does the Massey Ferguson 6170 use?
Hydraulics on the Massey Ferguson 6170 are Open center.
How powerful is the Massey Ferguson 6170?
The Massey Ferguson 6170 has an engine power output of 101.8 hp. It is powered by a 6-cylinder engine displacing 365 ci.
What is the working weight of the Massey Ferguson 6170?
The operating weight of the Massey Ferguson 6170 is approximately 11,153 lb.
What type of transmission does the Massey Ferguson 6170 have?
The Massey Ferguson 6170 uses a Synchronized / Four-speed power shift transmission offering 32 forward gears.
What routine service does the Massey Ferguson 6170 need?
Regular maintenance for the Massey Ferguson 6170 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
