Row Crop tractorsSpec sheet
Massey Ferguson 660
The Massey Ferguson 660 is a powerful row crop tractor designed for serious farming. It has a strong 6-cylinder Perkins diesel engine that puts out 150 horsepower. This engine is turbocharged and liquid-cooled, which helps it run smoothly in tough conditions. The tractor has a 2-wheel drive system and a synchronized transmission with 12 forward gears and 5 reverse gears, giving farmers lots of options for different tasks. This tractor is built to handle big jobs. It weighs 14,054 pounds, which is above average for its class. The Massey Ferguson 660 is 191 inches long and 117.3 inches tall, making it a sizable machine. It comes with a cab or ROPS (Roll-Over Protective Structure) for driver safety. The tractor has standard agricultural tires, with larger rear tires for better traction. It also has a Category II hitch, which lets it work with many different attachments. Overall, the Massey Ferguson 660 is a solid choice for farmers who need a reliable, strong tractor for their row crop operations.
ManufacturerMassey FergusonPower150 hp(111.9 kW)Class150–300 HP tractors →Engine6-cylinderTransmissionSynchronized
Key specifications
- Category
- Row Crop
- Engine power
- 150hp
- Operating weight
- 14,054 lb
- Transmission
- Synchronized
Category comparison
660 compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
150 hp · 57th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 660 ranks at the 57th percentile for engine power among recorded row crop tractors.
Overview
About the Massey Ferguson 660
The Massey Ferguson 660 is a powerful row crop tractor designed for serious farming. It has a strong 6-cylinder Perkins diesel engine that puts out 150 horsepower. This engine is turbocharged and liquid-cooled, which helps it run smoothly in tough conditions. The tractor has a 2-wheel drive system and a synchronized transmission with 12 forward gears and 5 reverse gears, giving farmers lots of options for different tasks. This tractor is built to handle big jobs. It weighs 14,054 pounds, which is above average for its class. The Massey Ferguson 660 is 191 inches long and 117.3 inches tall, making it a sizable machine. It comes with a cab or ROPS (Roll-Over Protective Structure) for driver safety. The tractor has standard agricultural tires, with larger rear tires for better traction. It also has a Category II hitch, which lets it work with many different attachments. Overall, the Massey Ferguson 660 is a solid choice for farmers who need a reliable, strong tractor for their row crop operations.
Full specifications
Recorded specifications
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 660 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Operating weight | 14,054lb(6,375 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | 1006.6T |
| Power | 150hp(111.9 kW) |
| Cylinders | 6 |
| Displacement | 365.3ci(5.99 L) |
| Bore | 3.94in(100 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Synchronized |
|---|---|
| Forward gears | 12 |
| Reverse gears | 5 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Cab | ROPS/Cab |
Dimensions
| Length | 191in(4,851 mm) |
|---|---|
| Height | 117.3in(2,979 mm) |
| Operating weight | 14,054lb(6,375 kg) |
Closest alternatives
660 compared with the nearest models by horsepower
By engine horsepower, the nearest row crop models to the 660 are the Massey Ferguson 7150 and the Kubota M7152. The Massey Ferguson 7150 matches it on rated power and weighs 4,140 lb more, so it carries more weight per horsepower, which helps traction in draft work. The Kubota M7152 matches it on rated power and weighs 170 lb less.
| Spec | Massey Ferguson 660 | Massey Ferguson 7150 | Kubota M7152 |
|---|---|---|---|
| Engine power | 150 hp111.9 kW | 150 hp111.9 kW | 150 hp111.9 kW |
| Operating weight | 14,054 lb6,375 kg | 18,190 lb8,251 kg | 13,889 lb6,300 kg |
| Weight per hp | 94 lb/hp57 kg/kW | 121 lb/hp74 kg/kW | 93 lb/hp56 kg/kW |
| Displacement | 365.3 ci5.99 L | 402.8 ci6.6 L | 373.7 ci6.12 L |
| Cylinders | 6 | 6 | 4 |
| Transmission | Synchronized | Synchromesh | 6-speed power shift |
| Drive | 2WD | 4WD | 4WD |
| Years built | - | 2009-2019 | 2018-2020 |
Calculators
Calculators for the 660
PTO power
About 125 to 135 PTO hp
Estimated from the 150 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 150 hp tractor can run
Maximum size is about a 18 ft rotary cutter or a 15 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
109 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
150 hp is 111.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
660 vs. Row Crop median
Massey Ferguson 660 compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 150 hp | 138 hp | +9% | 57th |
| Engine Displacement | 365 ci | 391 ci | -7% | 45th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 12 | 16 | -25% | 27th |
| Operating Weight | 14,054 lb | 12,307 lb | +14% | 62nd |
| Length | 191 in | 180 in | +6% | 64th |
| Height | 117 in | 114 in | +3% | 63rd |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 1,140–1,417 models).
Same manufacturer
Other Massey Ferguson models
Other manufacturers
Models with similar horsepower

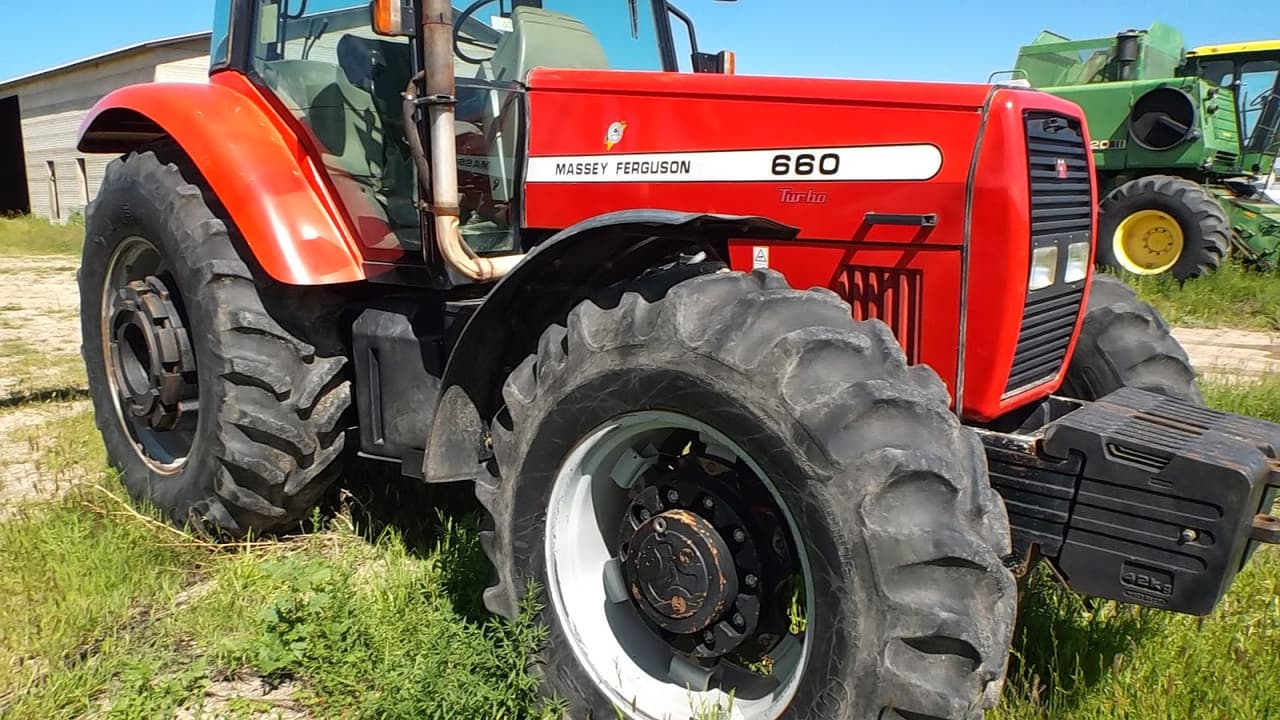

Gallery
Massey Ferguson 660 photos
FAQ
Frequently asked questions
How much horsepower does the Massey Ferguson 660 have?
The Massey Ferguson 660 produces 150 hp from its 6-cylinder engine. Engine displacement is 365.3 ci.
How much does the Massey Ferguson 660 weigh?
The Massey Ferguson 660 weighs about 14,054 lb in operating condition.
What transmission is in the Massey Ferguson 660?
Transmission on the Massey Ferguson 660 is Synchronized, with 12 forward speeds.
What hitch category is the Massey Ferguson 660?
The Massey Ferguson 660 uses a Category II hitch.
What maintenance does the Massey Ferguson 660 require?
The Massey Ferguson 660 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
