Utility tractorsSpec sheet
Massey Ferguson 6714S
The Massey Ferguson 6714S is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by AGCO Power. This engine can produce up to 130 horsepower, which is very high for its class. The tractor uses a special transmission called a CVT, which allows for smooth speed changes without shifting gears. This tractor is big and heavy, weighing 16,810 pounds. It has a cab for the driver, making it comfortable to use in all weather. The 6714S has a strong hydraulic system that can lift heavy equipment. It also has features to help reduce pollution, like a system called SCR. The tractor was first made in 2017 in France. It has big tires that help it work well in fields. Overall, the Massey Ferguson 6714S is a modern, strong tractor that can handle many farm tasks with ease.
ManufacturerMassey FergusonPower130 hp(96.9 kW)Class100–150 HP tractors →Engine4-cylinderTransmissioncontinuously variable transmission (CVT)
Key specifications
- Category
- Utility
- Engine power
- 130hp
- Operating weight
- 16,810 lb
- Transmission
- continuously variable transmission (CVT)
Category comparison
6714S compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
130 hp · 91st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 6714S ranks at the 91st percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 6714S
The Massey Ferguson 6714S is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by AGCO Power. This engine can produce up to 130 horsepower, which is very high for its class. The tractor uses a special transmission called a CVT, which allows for smooth speed changes without shifting gears. This tractor is big and heavy, weighing 16,810 pounds. It has a cab for the driver, making it comfortable to use in all weather. The 6714S has a strong hydraulic system that can lift heavy equipment. It also has features to help reduce pollution, like a system called SCR. The tractor was first made in 2017 in France. It has big tires that help it work well in fields. Overall, the Massey Ferguson 6714S is a modern, strong tractor that can handle many farm tasks with ease.
Full specifications
Recorded specifications
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 6714S |
| Category | Utility tractor |
| Years built | 2017+ |
| Operating weight | 16,810lb(7,625 kg) |
Engine
| Make | AGCO Power |
|---|---|
| Power | 130hp(96.94 kW) |
| Cylinders | 4 |
| Displacement | 299ci(4.9 L) |
Transmission
| Type | continuously variable transmission (CVT) |
|---|
Chassis & drive
| Cab | Cab |
|---|
Hydraulics
| Type | open center |
|---|
Dimensions
| Width | 72in(1,829 mm) |
|---|---|
| Height | 117in(2,972 mm) |
| Operating weight | 16,810lb(7,625 kg) |
Closest alternatives
6714S compared with the nearest models by horsepower
Among utility tractors, the Massey Ferguson 475 and the Massey Ferguson 480 Xtra are closest to the Massey Ferguson 6714S in rated horsepower. The Massey Ferguson 475 matches it on rated power and weighs 7,730 lb less, carrying 70 lb per horsepower against 129 lb. It entered production in 2001, 16 years before the 6714S. The Massey Ferguson 480 Xtra matches it on rated power and weighs 7,530 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the 6714S has the highest weight per horsepower at 129 lb per hp.
| Spec | Massey Ferguson 6714S | Massey Ferguson 475 | Massey Ferguson 480 Xtra |
|---|---|---|---|
| Engine power | 130 hp96.9 kW | 130 hp96.9 kW | 130 hp96.9 kW |
| Operating weight | 16,810 lb7,625 kg | 9,083 lb4,120 kg | 9,281 lb4,210 kg |
| Weight per hp | 129 lb/hp79 kg/kW | 70 lb/hp42 kg/kW | 71 lb/hp43 kg/kW |
| Displacement | 299 ci4.9 L | 365.3 ci5.99 L | 268.5 ci4.4 L |
| Cylinders | 4 | 6 | 4 |
| Transmission | continuously variable transmission (CVT) | Synchromesh | Synchromesh |
| Drive | - | 2WD | 4WD |
| Years built | 2017+ | 2001-2010 | - |
Calculators
Calculators for the 6714S
PTO power
About 108 to 117 PTO hp
Estimated from the 130 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 130 hp tractor can run
Maximum size is about a 15.5 ft rotary cutter or a 13 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
150 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
130 hp is 96.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
6714S vs. Utility median
Massey Ferguson 6714S compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 130 hp | 55 hp | +136% | 91st |
| Engine Displacement | 299 ci | 183 ci | +63% | 84th |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 16,810 lb | 5,303 lb | +217% | 94th |
| Width | 72 in | 66 in | +9% | 65th |
| Height | 117 in | 94.1 in | +24% | 93rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Massey Ferguson models
Other manufacturers
Models with similar horsepower
Gallery

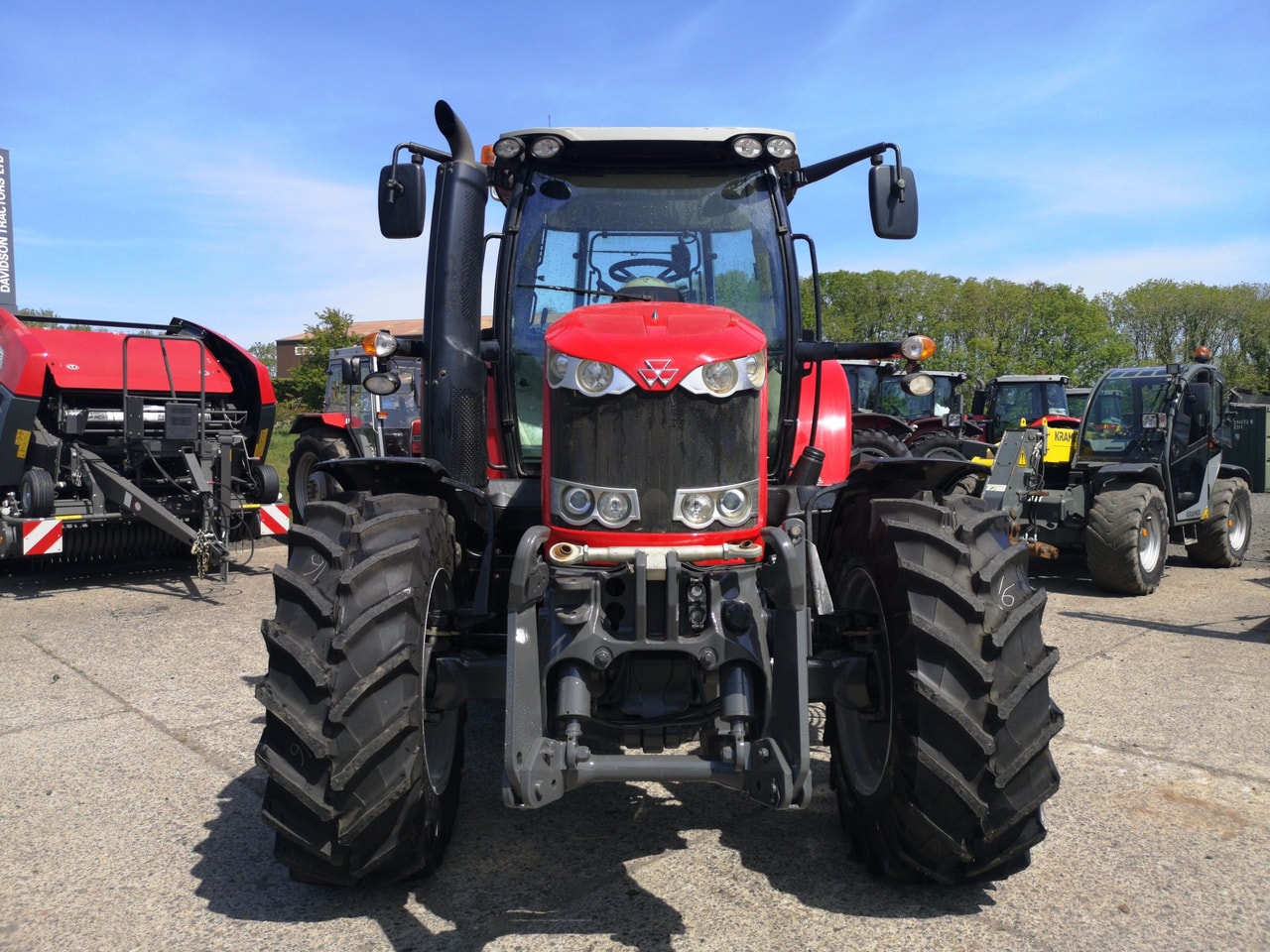

Massey Ferguson 6714S photos
FAQ
Frequently asked questions
When was the Massey Ferguson 6714S in production?
The Massey Ferguson 6714S was introduced in 2017.
What transmission is in the Massey Ferguson 6714S?
Transmission on the Massey Ferguson 6714S is continuously variable transmission (CVT).
What hydraulics does the Massey Ferguson 6714S have?
The Massey Ferguson 6714S uses an open center hydraulic system.
What three-point hitch category does the Massey Ferguson 6714S use?
The Massey Ferguson 6714S has a Category 3 three-point hitch.
How much horsepower does the Massey Ferguson 6714S have?
The Massey Ferguson 6714S produces 130 hp from its 4-cylinder engine. Engine displacement is 299 ci.
How much does the Massey Ferguson 6714S weigh?
The Massey Ferguson 6714S weighs about 16,810 lb in operating condition.
What maintenance does the Massey Ferguson 6714S require?
The Massey Ferguson 6714S needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
