Massey Ferguson GC1715
The Massey Ferguson GC1715 is a small but mighty utility tractor. It's perfect for farmers who need a compact machine that can still get big jobs done. This tractor has a 4-wheel drive system, which helps it move easily on different types of ground. The GC1715 has a diesel engine made by Iseki. This engine has 3 cylinders and produces 25 horsepower. It's not the most powerful engine out there, but it's just right for a tractor this size. The tractor has a hydrostatic transmission, which means it's easy to control and can go forward and backward smoothly. It also has a rear hitch that can lift up to 1,190 pounds, which is good for attaching tools. The tractor has two PTO speeds, 540 rpm and 2000 rpm, so it can work with different kinds of equipment. This Massey Ferguson tractor is small enough to fit in tight spaces. It's about 97 inches long, 47 inches wide, and 72 inches tall. It weighs 1,433 pounds, which is pretty light for a tractor. The GC1715 has been made since 2013 and comes with a roll-over protection system (ROPS) to keep the driver safe. It's a great choice for small farms, big gardens, or anyone who needs a reliable, compact tractor.
ManufacturerMassey FergusonPower25 hp(18.6 kW)Class25–40 HP tractors →Engine3-cylinderTransmissionHydrostatic
Key specifications
- Category
- Utility
- Engine power
- 25hp
- Operating weight
- 1,433 lb
- Transmission
- Hydrostatic
Category comparison
GC1715 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
25 hp · 16th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The GC1715 ranks at the 16th percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson GC1715
The Massey Ferguson GC1715 is a small but mighty utility tractor. It's perfect for farmers who need a compact machine that can still get big jobs done. This tractor has a 4-wheel drive system, which helps it move easily on different types of ground. The GC1715 has a diesel engine made by Iseki. This engine has 3 cylinders and produces 25 horsepower. It's not the most powerful engine out there, but it's just right for a tractor this size. The tractor has a hydrostatic transmission, which means it's easy to control and can go forward and backward smoothly. It also has a rear hitch that can lift up to 1,190 pounds, which is good for attaching tools. The tractor has two PTO speeds, 540 rpm and 2000 rpm, so it can work with different kinds of equipment. This Massey Ferguson tractor is small enough to fit in tight spaces. It's about 97 inches long, 47 inches wide, and 72 inches tall. It weighs 1,433 pounds, which is pretty light for a tractor. The GC1715 has been made since 2013 and comes with a roll-over protection system (ROPS) to keep the driver safe. It's a great choice for small farms, big gardens, or anyone who needs a reliable, compact tractor.
Full specifications
Recorded specifications
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | GC1715 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2013+ |
| Operating weight | 1,433lb(650 kg) |
Engine
| Make | Iseki |
|---|---|
| Power | 25hp(18.64 kW) |
| Cylinders | 3 |
| Displacement | 68.5ci(1.12 L) |
| Bore | 3.08in(78.23 mm) |
| Stroke | 3.07in(77.98 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Brakes | Wet disc |
| Cab | Two-post ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 2,000rpm |
Dimensions
| Length | 97.2in(2,469 mm) |
|---|---|
| Width | 47.2in(1,199 mm) |
| Height | 72.4in(1,839 mm) |
| Operating weight | 1,433lb(650 kg) |
Closest alternatives
GC1715 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the GC1715 are the Massey Ferguson GC2600 and the Massey Ferguson 210 / 210-4. The Massey Ferguson GC2600 matches it on rated power at almost the same operating weight. It entered production in 2008, 5 years before the GC1715. The Massey Ferguson 210 / 210-4 matches it on rated power. It entered production in 1978, 35 years before the GC1715.
| Spec | Massey Ferguson GC1715 | Massey Ferguson GC2600 | Massey Ferguson 210 / 210-4 |
|---|---|---|---|
| Engine power | 25 hp18.6 kW | 25 hp18.6 kW | 25 hp18.6 kW |
| Operating weight | 1,433 lb650 kg | 1,433 lb650 kg | - |
| Weight per hp | 57 lb/hp35 kg/kW | 57 lb/hp35 kg/kW | - |
| Displacement | 68.5 ci1.12 L | 68.5 ci1.12 L | 77.1 ci1.26 L |
| Cylinders | 3 | 3 | 2 |
| Transmission | Hydrostatic | Hydrostatic | Gear |
| Drive | 4WD | 4WD | - |
| Years built | 2013+ | 2008-2012 | 1978-1984 |
Calculators
Calculators for the GC1715
PTO power
About 21 to 23 PTO hp
Estimated from the 25 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 25 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
67 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
25 hp is 18.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
GC1715 vs. Utility median
Massey Ferguson GC1715 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 25 hp | 55 hp | -55% | 16th |
| Engine Displacement | 68.5 ci | 183 ci | -63% | 8th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Operating Weight | 1,433 lb | 5,303 lb | -73% | 5th |
| Length | 97.2 in | 137 in | -29% | 7th |
| Width | 47.2 in | 66 in | -28% | 13th |
| Height | 72.4 in | 94.1 in | -23% | 18th |
| 3-Point Hitch Capacity | 1,190 lb | 3,197 lb | -63% | 7th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Massey Ferguson models
Other manufacturers
Models with similar horsepower
Gallery

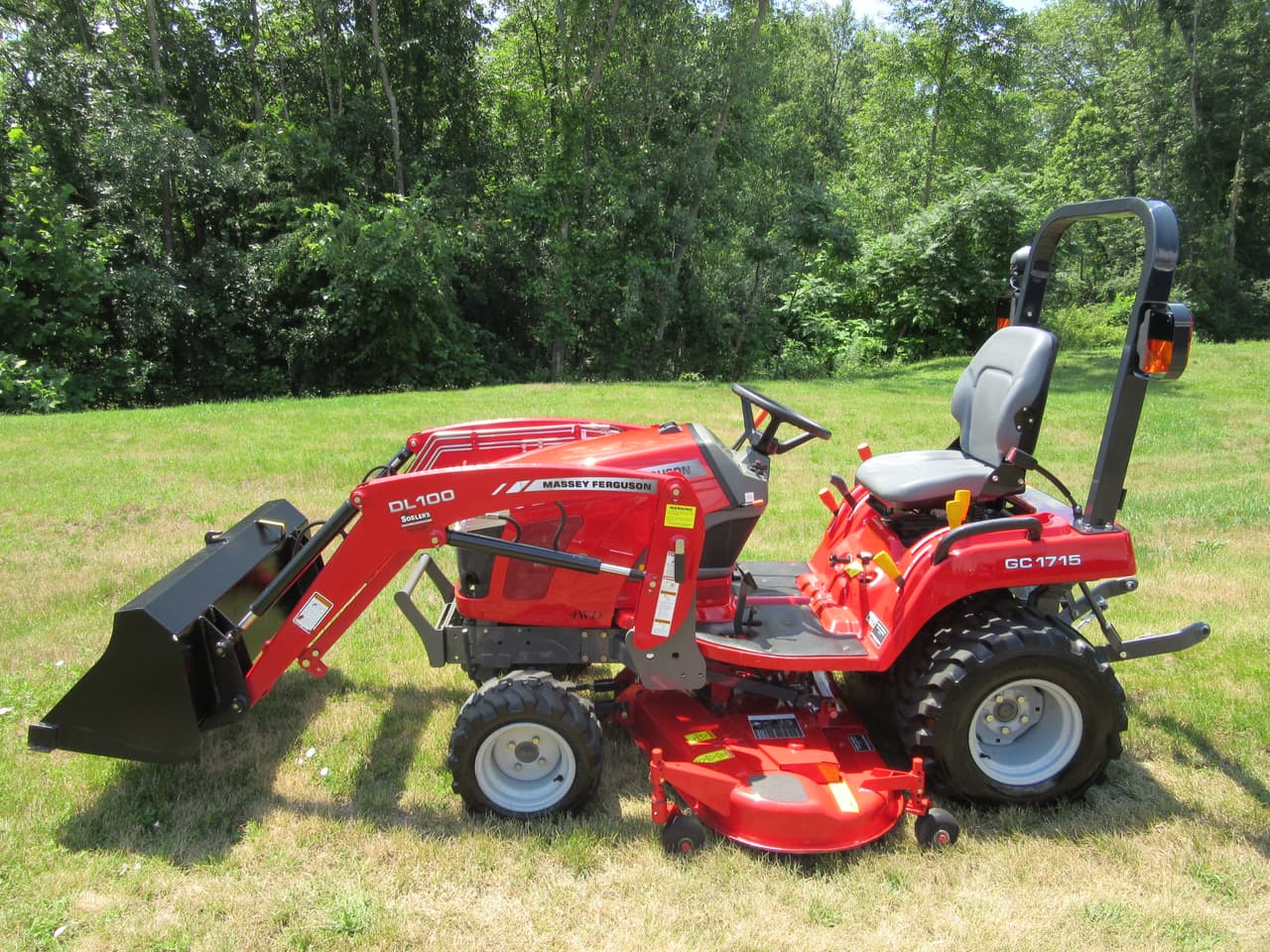

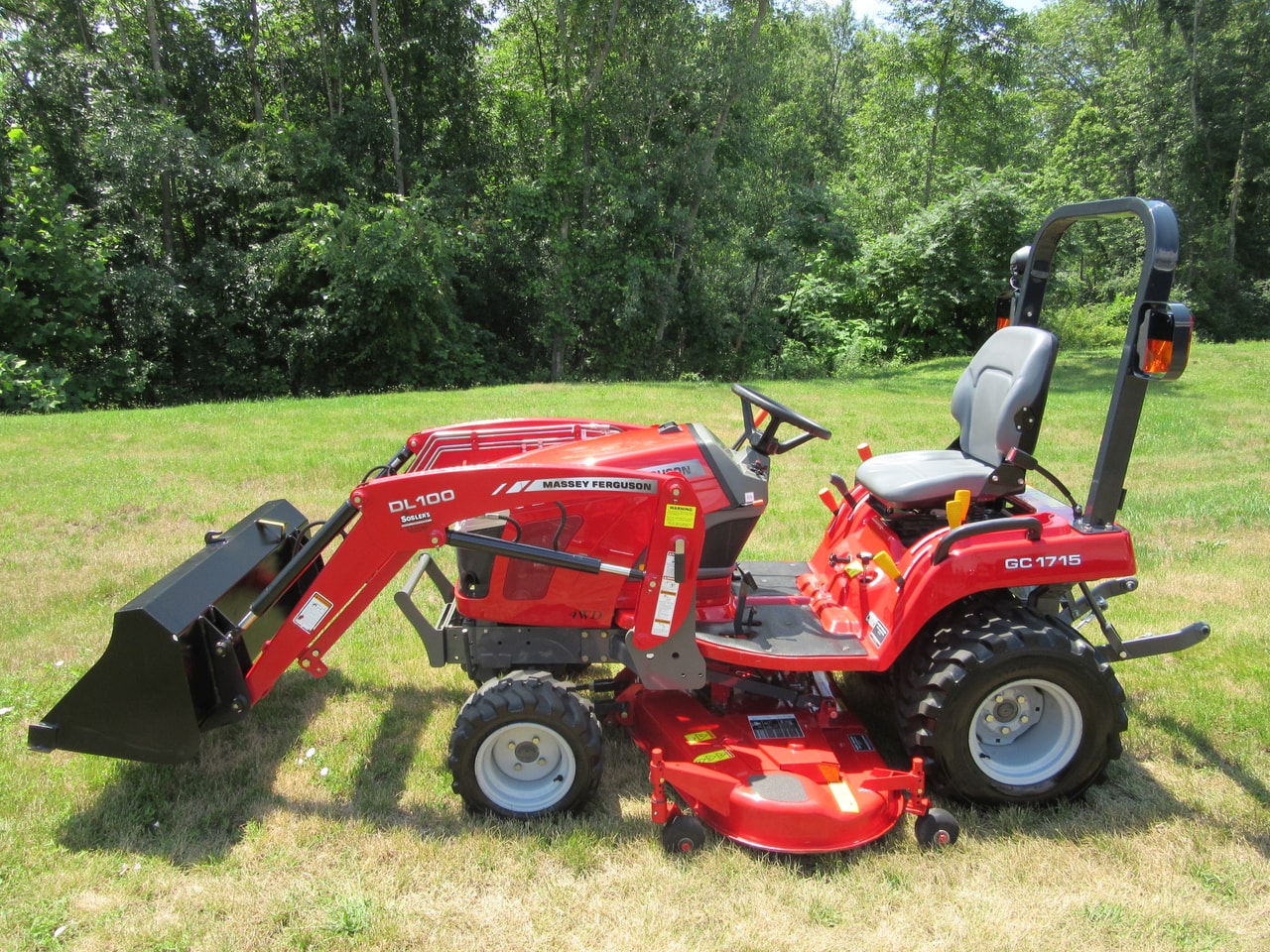

Massey Ferguson GC1715 photos
FAQ
Frequently asked questions
What years was the Massey Ferguson GC1715 manufactured?
Production of the Massey Ferguson GC1715 began in 2013.
What type of hydraulic system does the Massey Ferguson GC1715 use?
Hydraulics on the Massey Ferguson GC1715 are Open center.
How powerful is the Massey Ferguson GC1715?
The Massey Ferguson GC1715 has an engine power output of 25 hp. It is powered by a 3-cylinder engine displacing 68.5 ci.
What is the working weight of the Massey Ferguson GC1715?
The operating weight of the Massey Ferguson GC1715 is approximately 1,433 lb.
What type of transmission does the Massey Ferguson GC1715 have?
The Massey Ferguson GC1715 uses a Hydrostatic transmission.
What routine service does the Massey Ferguson GC1715 need?
Regular maintenance for the Massey Ferguson GC1715 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
