Massey-Harris 50

Massey-Harris 50

Complete specifications and technical data for the Massey-Harris 50. Compare with similar tractors from Massey-Harris and other manufacturers.

Quick Specs

Category

Utility

Operating Weight

3,432 lb

Transmission

Unsynchronized gear

The Massey-Harris 50 is a utility tractor built for farm work. It has a Continental Z-134 engine that runs on gasoline. This engine has 4 cylinders and is liquid-cooled, which helps keep it from getti...

Photo Gallery

Image Gallery

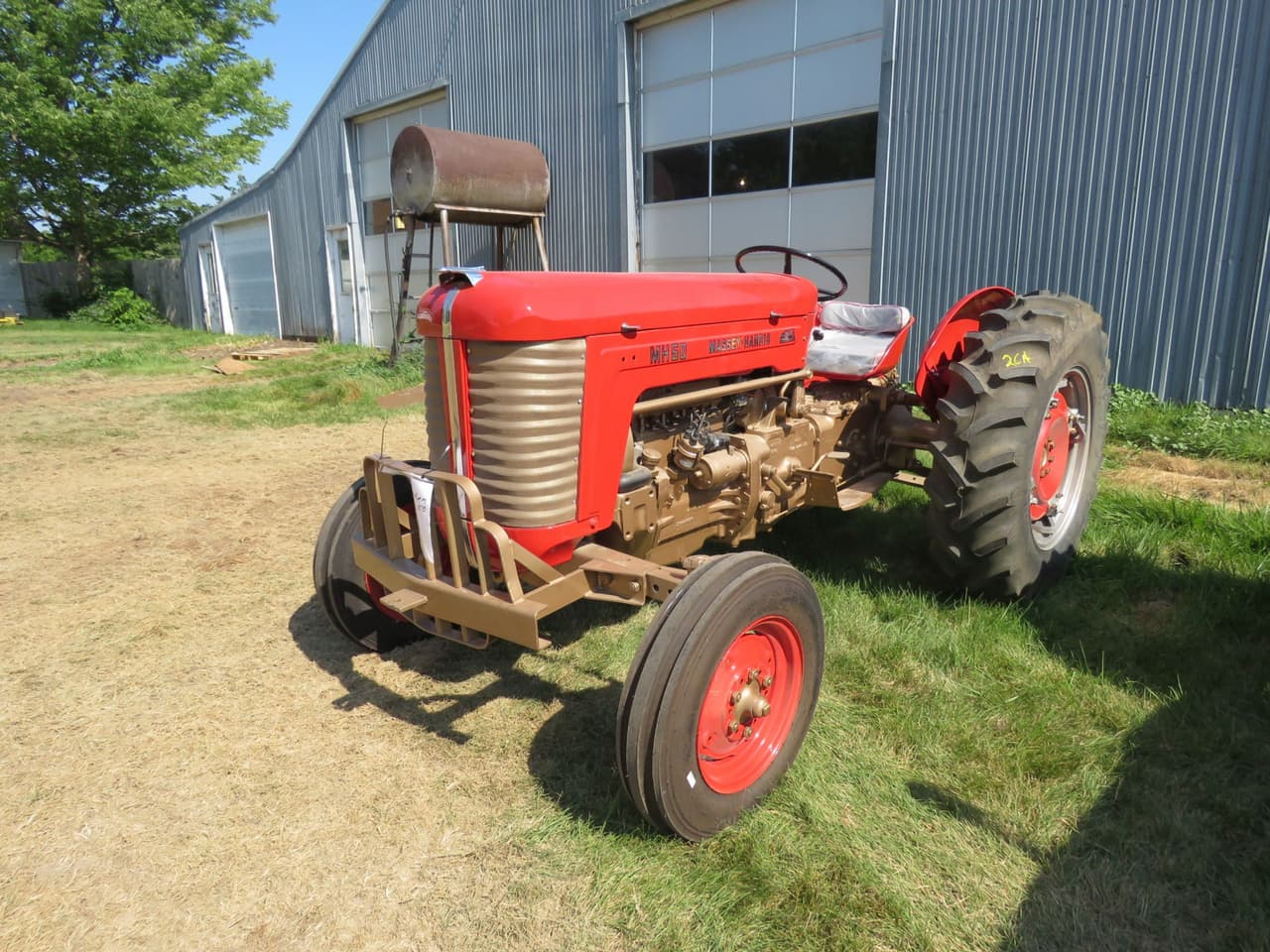

Massey-Harris 50 Tractor
Massey-Harris 50 Tractor
Massey-Harris 50 Tractor
Massey-Harris 50 Tractor
Massey-Harris 50 Tractor

Specifications

Manufacturer
Massey-Harris
Model
50
Category
Utility
Manufacturer
Continental
Model
Z-134
Rated RPM
2,000RPM
Cylinders
4
Displacement
134ci
Bore
3.31in
Stroke
3.88in

Engine Power Output Comparison of Massey-Harris 50 vs. Other Utility Tractors

Loading Chart...

Type
Unsynchronized gear
System Type
Open center
Steering Type
Manual
Type
540 (1.375)
Front Tire Size
5.50x16
Rear
11x28
Hitch Type
Category I
Coolant
10qts

Compare to Other Tractors

Frequently Asked Questions

How many cylinders does the Massey-Harris 50 have?

The Massey-Harris 50 is equipped with a 4-cylinder engine.

What is the operating weight of the Massey-Harris 50?

The operating weight of the Massey-Harris 50 is approximately 3,432 lb.

What type of transmission does the Massey-Harris 50 have?

The Massey-Harris 50 is equipped with a Unsynchronized gear transmission.

What type of hydraulic system does the Massey-Harris 50 use?

The Massey-Harris 50 uses a Open center hydraulic system.

What size tires does the Massey-Harris 50 use?

The Massey-Harris 50 comes with 5.50x16 front tires and 11x28 rear tires.

What maintenance does the Massey-Harris 50 require?

Regular maintenance for the Massey-Harris 50 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
