Standard Tread
McCormick-Deering 22-36
The McCormick-Deering 22-36 is a classic tractor from the early days of farming machinery. It has a sturdy build, with steel wheels instead of rubber tires. The tractor is quite big, measuring 137 inches long, 65 inches wide, and 70 inches tall. It's also heavy, weighing 6500 pounds. This tractor is powered by a liquid-cooled, 4-cylinder engine made by International Harvester. The engine runs on kerosene and has a displacement of 425.3 cubic inches. It's designed with vertical cylinders and a valve-in-head configuration. The engine operates at 1050 RPM, which was typical for tractors of its time. The 22-36 has a simple gear transmission with 3 forward gears and 1 reverse gear, and it uses manual steering. For cooling, it holds 46 quarts of coolant.
ManufacturerMcCormick-DeeringEngine4-cylTransGear
Quick specs
- Category
- Standard Tread
- Operating Weight
- 6,500 lb
- Transmission
- Gear
Overview
About the McCormick-Deering 22-36
The McCormick-Deering 22-36 is a classic tractor from the early days of farming machinery. It has a sturdy build, with steel wheels instead of rubber tires. The tractor is quite big, measuring 137 inches long, 65 inches wide, and 70 inches tall. It's also heavy, weighing 6500 pounds. This tractor is powered by a liquid-cooled, 4-cylinder engine made by International Harvester. The engine runs on kerosene and has a displacement of 425.3 cubic inches. It's designed with vertical cylinders and a valve-in-head configuration. The engine operates at 1050 RPM, which was typical for tractors of its time. The 22-36 has a simple gear transmission with 3 forward gears and 1 reverse gear, and it uses manual steering. For cooling, it holds 46 quarts of coolant.
Full specifications
Every recorded spec
General
| Manufacturer | McCormick-Deering |
|---|---|
| Model | 22-36 |
| Category | Standard Tread tractor |
| Operating weight | 6,500lb |
Engine
| Make | International Harvester |
|---|---|
| Cylinders | 4 |
| Displacement | 425.3ci |
| Bore | 4.75in |
| Stroke | 6in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Chassis & drive
| Steering | Manual |
|---|
Dimensions
| Length | 137in |
|---|---|
| Width | 65in |
| Height | 70in |
| Operating weight | 6,500lb |
Capacities
| Cooling system | 11.5gal |
|---|
Head to head
22-36 vs. Standard Tread median
How the McCormick-Deering 22-36 compares to other Standard Tread tractors
| Spec | This model | Standard Tread median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 425 ci | 382 ci | +11% | 56th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 3 | 4 | -25% | 39th |
| Operating Weight | 6,500 lb | 6,834 lb | -5% | 44th |
| Length | 137 in | 137 in | at median | 50th |
| Width | 65 in | 72.4 in | -10% | 25th |
| Height | 70 in | 72.3 in | -3% | 42nd |
Medians and percentiles are computed from the standard tread tractors in our database with a recorded value for each spec (sample sizes 233–367 models).
Compare to tractors with similar specs
Commonly compared McCormick-Deering tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| McCormick-Deering 15-30 | 40.66 hp | 7,480 lb | — | Compare → |
| McCormick-Deering 45219 | — | 3,700 lb | — | Compare → |
| McCormick-Deering 45585 | 20 hp | 3,700 lb | 1923–1939 | Compare → |
| McCormick-Deering A554 | 57 hp | — | — | Compare → |
| McCormick-Deering AW-6 | — | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
McCormick-Deering siblings
Explore
Similar-spec models
Gallery

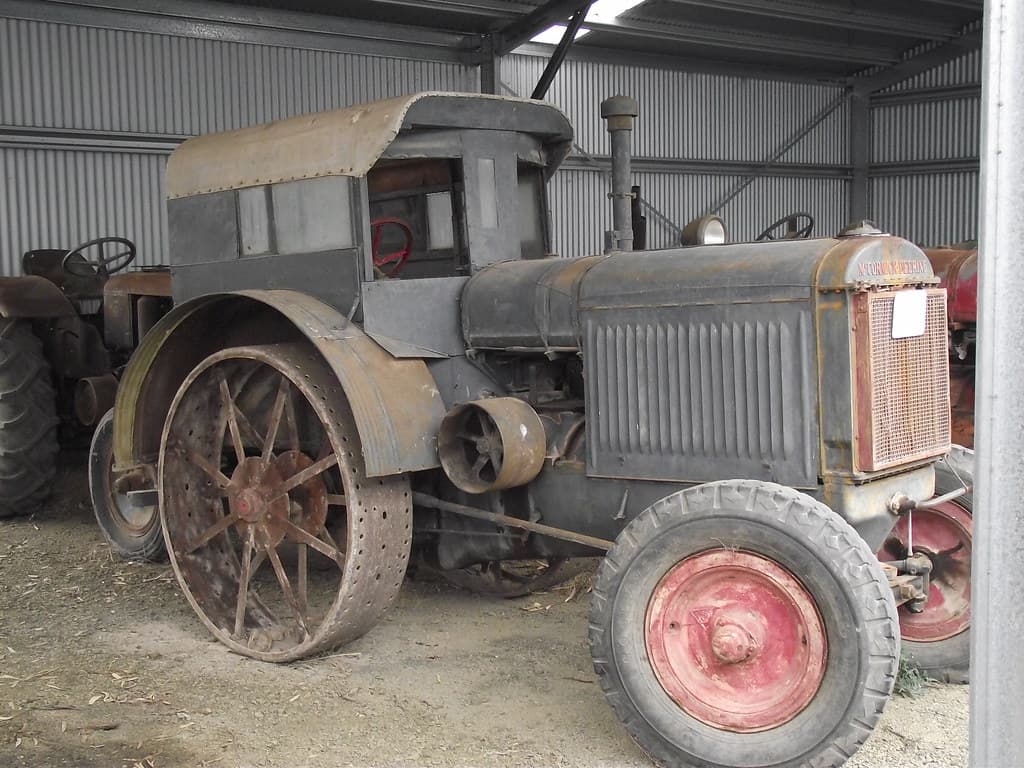

McCormick-Deering 22-36 photos
FAQ
Common questions
What engine configuration does the McCormick-Deering 22-36 use?
The McCormick-Deering 22-36 is equipped with a 4-cylinder engine displacing 425.3 ci.
How much does the McCormick-Deering 22-36 weigh?
The McCormick-Deering 22-36 weighs about 6,500 lb in operating condition.
What transmission is in the McCormick-Deering 22-36?
Transmission on the McCormick-Deering 22-36 is Gear, with 3 forward speeds.
What maintenance does the McCormick-Deering 22-36 require?
Like any tractor, the McCormick-Deering 22-36 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
