Utility tractorsSpec sheet
McCormick Intl MB85
The McCormick International MB85 is a utility tractor built for hard work on the farm. It has a strong 2WD chassis and uses hydrostatic power steering for easy control. The tractor is powered by a Perkins 1104C-44 diesel engine with four cylinders. This engine is liquid-cooled and naturally aspirated, providing 81 horsepower at 2200 RPM. The engine's size is above average for its class, which means it can handle tough jobs. The MB85 features a manual transmission with 24 forward gears and 12 reverse gears, giving the driver lots of options for different tasks. It has big agricultural tires, with 7.50-16 in the front and 16.9-30 in the rear. The tractor is 150 inches long, 73.6 inches wide, and 102 inches tall, including the roll-over protection system (ROPS). It weighs 6660 pounds, which is above average for similar tractors. The MB85 comes with a Category II hitch at the rear, making it easy to attach various farm implements. With 15 inches of ground clearance, this tractor can work well in different field conditions.
ManufacturerMcCormick IntlPower81 hp(60.4 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionManual
Key specifications
- Category
- Utility
- Engine power
- 81hp
- Operating weight
- 6,660 lb
- Transmission
- Manual
Category comparison
MB85 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
81 hp · 72nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The MB85 ranks at the 72nd percentile for engine power among recorded utility tractors.
Overview
About the McCormick Intl MB85
The McCormick International MB85 is a utility tractor built for hard work on the farm. It has a strong 2WD chassis and uses hydrostatic power steering for easy control. The tractor is powered by a Perkins 1104C-44 diesel engine with four cylinders. This engine is liquid-cooled and naturally aspirated, providing 81 horsepower at 2200 RPM. The engine's size is above average for its class, which means it can handle tough jobs. The MB85 features a manual transmission with 24 forward gears and 12 reverse gears, giving the driver lots of options for different tasks. It has big agricultural tires, with 7.50-16 in the front and 16.9-30 in the rear. The tractor is 150 inches long, 73.6 inches wide, and 102 inches tall, including the roll-over protection system (ROPS). It weighs 6660 pounds, which is above average for similar tractors. The MB85 comes with a Category II hitch at the rear, making it easy to attach various farm implements. With 15 inches of ground clearance, this tractor can work well in different field conditions.
Full specifications
Recorded specifications
General
| Manufacturer | McCormick Intl |
|---|---|
| Model | MB85 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 6,660lb(3,021 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | 1104C-44 |
| Power | 81hp(60.4 kW) |
| Cylinders | 4 |
| Displacement | 268.5ci(4.4 L) |
| Bore | 4.13in(105 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 24 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 150in(3,810 mm) |
|---|---|
| Width | 73.6in(1,869 mm) |
| Height | 102in(2,591 mm) |
| Operating weight | 6,660lb(3,021 kg) |
Tires
| Front | 7.50-16Convert |
|---|---|
| Rear | 16.9-30Convert |
Closest alternatives
MB85 compared with the nearest models by horsepower
The closest utility models to the McCormick Intl MB85 by rated horsepower are the Massey Ferguson 2660 HD and the John Deere 5625. The Massey Ferguson 2660 HD matches it on rated power and weighs 1,080 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The John Deere 5625 matches it on rated power.
| Spec | McCormick Intl MB85 | Massey Ferguson 2660 HD | John Deere 5625 |
|---|---|---|---|
| Engine power | 81 hp60.4 kW | 81 hp60.4 kW | 81 hp60.4 kW |
| Operating weight | 6,660 lb3,021 kg | 5,578 lb2,530 kg | - |
| Weight per hp | 82 lb/hp50 kg/kW | 69 lb/hp42 kg/kW | - |
| Displacement | 268.5 ci4.4 L | 269 ci4.41 L | 278 ci4.56 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Manual | Synchronized shuttle | Partially synchronized |
| Drive | 2WD | 2WD | - |
| Years built | - | 2010-2013 | 2006-2012 |
Calculators
Calculators for the MB85
PTO power
About 67 to 73 PTO hp
Estimated from the 81 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 81 hp tractor can run
Maximum size is about a 9.5 ft rotary cutter or a 8 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
96 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
81 hp is 60.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 16.9-30 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Category medians
MB85 vs. Utility median
McCormick Intl MB85 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 81 hp | 55 hp | +47% | 72nd |
| Engine Displacement | 269 ci | 183 ci | +47% | 77th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 6,660 lb | 5,303 lb | +26% | 63rd |
| Length | 150 in | 137 in | +10% | 66th |
| Width | 73.6 in | 66 in | +12% | 68th |
| Height | 102 in | 94.1 in | +8% | 70th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other McCormick Intl models
Other manufacturers
Models with similar horsepower
Gallery

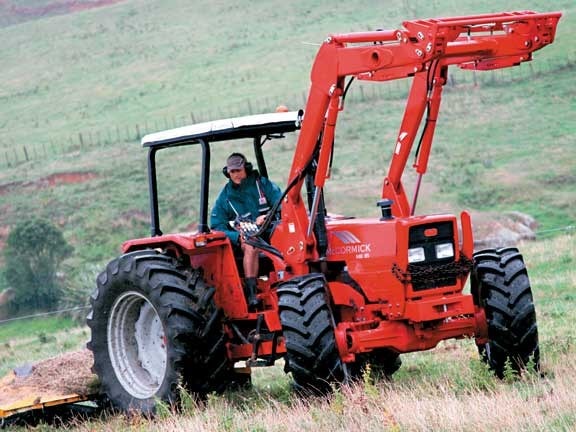

McCormick Intl MB85 photos
FAQ
Frequently asked questions
How much horsepower does the McCormick Intl MB85 have?
The McCormick Intl MB85 produces 81 hp from its 4-cylinder engine. Engine displacement is 268.5 ci.
What hitch category is the McCormick Intl MB85?
The McCormick Intl MB85 uses a Category Category 2 hitch.
How much does the McCormick Intl MB85 weigh?
The McCormick Intl MB85 weighs about 6,660 lb in operating condition.
What transmission is in the McCormick Intl MB85?
Transmission on the McCormick Intl MB85 is Manual, with 24 forward speeds.
What size tires does the McCormick Intl MB85 use?
The McCormick Intl MB85 is fitted with 7.50-16 front tires and 16.9-30 rear tires from the factory.
What maintenance does the McCormick Intl MB85 require?
The McCormick Intl MB85 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
