UtilityPerformance profile
McCormick Intl T90 Max
The McCormick Intl T90 Max is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by Perkins. This engine can produce 83 horsepower, which is above average for tractors in its class. The T90 Max has a 4-wheel drive system, making it great for working in different types of fields. This tractor is big and sturdy, weighing 8,047 pounds. It has a lot of gears - 36 forward and 12 reverse - which helps the driver find the right speed for any job. The T90 Max has power steering, making it easy to turn and control. It also has a special transmission that lets the driver change direction quickly. The tractor's hydraulic system can pump 7.9 gallons of fluid per minute, which is good for running farm tools. With its size and power, the McCormick T90 Max is ready to handle many farm tasks with ease.
ManufacturerMcCormick IntlPower83 hpEngine4-cylTransPower shuttle / Three-speed power shift
Quick specs
- Category
- Utility
- Engine Power Output
- 83hp
- Operating Weight
- 8,047 lb
- Transmission
- Power shuttle / Three-speed power shift
At a glance
How the T90 Max compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
83 hp · 73rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The T90 Max ranks at the 73rd percentile for engine power among recorded utility tractors.
Overview
About the McCormick Intl T90 Max
The McCormick Intl T90 Max is a powerful utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by Perkins. This engine can produce 83 horsepower, which is above average for tractors in its class. The T90 Max has a 4-wheel drive system, making it great for working in different types of fields. This tractor is big and sturdy, weighing 8,047 pounds. It has a lot of gears - 36 forward and 12 reverse - which helps the driver find the right speed for any job. The T90 Max has power steering, making it easy to turn and control. It also has a special transmission that lets the driver change direction quickly. The tractor's hydraulic system can pump 7.9 gallons of fluid per minute, which is good for running farm tools. With its size and power, the McCormick T90 Max is ready to handle many farm tasks with ease.
Full specifications
Every recorded spec
General
| Manufacturer | McCormick Intl |
|---|---|
| Model | T90 Max |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 8,047lb |
Engine
| Make | Perkins |
|---|---|
| Model | 1104D-44T |
| Power | 83hp |
| Cylinders | 4 |
| Displacement | 268.5ci |
| Bore | 4.13in |
| Stroke | 5in |
Transmission
| Type | Power shuttle / Three-speed power shift |
|---|---|
| Forward gears | 36 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 164in |
|---|---|
| Width | 83in |
| Height | 101in |
| Operating weight | 8,047lb |
Head to head
T90 Max vs. Utility median
How the McCormick Intl T90 Max compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 83 hp | 55 hp | +51% | 73rd |
| Engine Displacement | 269 ci | 183 ci | +47% | 77th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 36 | 12 | +200% | 99th |
| Operating Weight | 8,047 lb | 5,303 lb | +52% | 76th |
| Length | 164 in | 137 in | +20% | 82nd |
| Width | 83 in | 66 in | +26% | 86th |
| Height | 101 in | 94.1 in | +7% | 68th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared McCormick Intl tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| McCormick Intl B90 Max | 83 hp | 7,326 lb | — | Compare → |
| McCormick Intl C90 Max | 83 hp | 7,341 lb | — | Compare → |
| McCormick Intl CX90 | 83 hp | 8,465.7 lb | — | Compare → |
| McCormick Intl C80 | 84 hp | 8,135 lb | — | Compare → |
| McCormick Intl CX80 | 84 hp | 7,397 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT75 | 83 hp | 5,511 lb | 2004–2007 | Compare → |
| Agco GT75A | 83 hp | 6,040.7 lb | — | Compare → |
| Agco LT90 | 85 hp | 8,980 lb | — | Compare → |
| Apollo 854 | 85 hp | 10,360 lb | — | Compare → |
| Agrinar T-85 | 80.9 hp | 3,000 lb | — | Compare → |
Explore
McCormick Intl siblings
Explore
Similar-spec models
Gallery

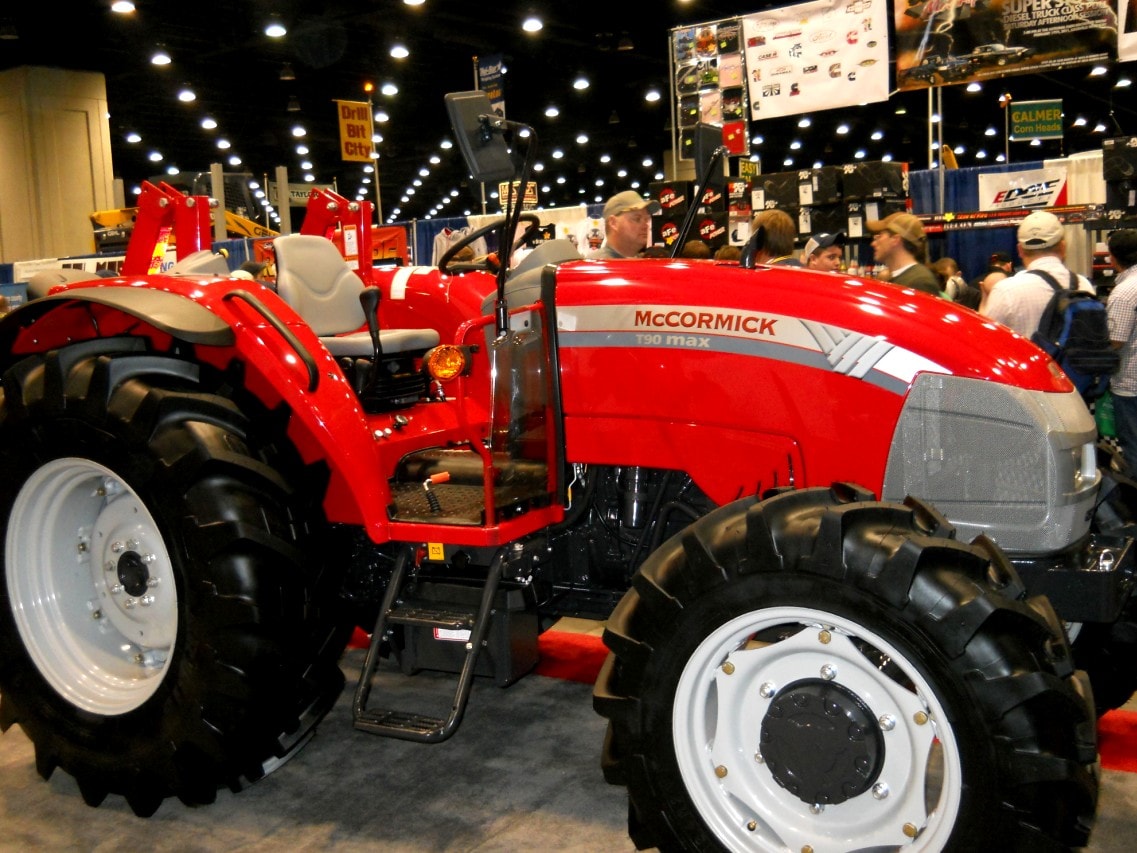

McCormick Intl T90 Max photos
FAQ
Common questions
What is the engine power output of the McCormick Intl T90 Max?
Rated engine output for the McCormick Intl T90 Max is 83 hp, delivered by a 4-cylinder engine. The engine displaces 268.5 ci.
Which transmission does the McCormick Intl T90 Max use?
The McCormick Intl T90 Max is equipped with a Power shuttle / Three-speed power shift transmission with 36 forward gears.
What type of hydraulic system does the McCormick Intl T90 Max use?
Hydraulics on the McCormick Intl T90 Max are Open Center.
What is the operating weight of the McCormick Intl T90 Max?
In working trim, the McCormick Intl T90 Max comes in at roughly 8,047 lb.
How do I maintain a McCormick Intl T90 Max?
Routine service for the McCormick Intl T90 Max covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
