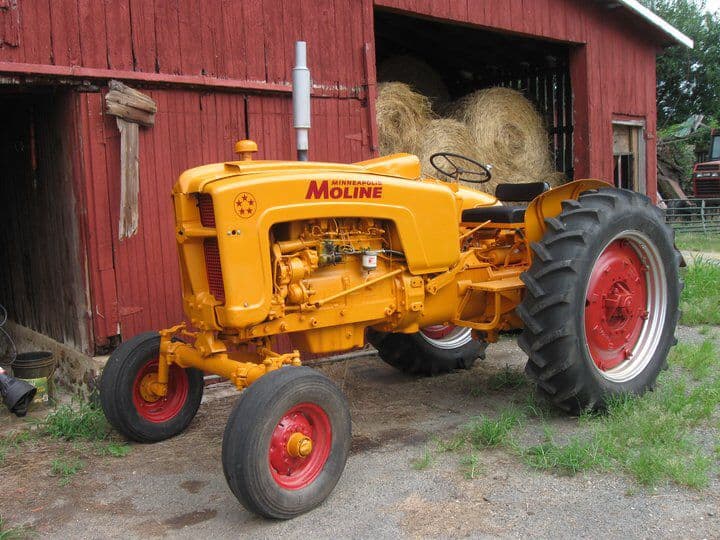

Minneapolis-Moline 5 Star
The Minneapolis-Moline 5 Star is a powerful and versatile tractor designed for serious farm work. It features a gasoline engine made by Minneapolis-Moline, with four cylinders and a displacement of 283.7 cubic inches. The engine has a bore of 4.25 inches and a stroke of 5 inches, running at a rated speed of 1500 RPM. This tractor comes with power-assisted steering, making it easier to control in tough conditions. The 5 Star has a partial power shift transmission with 10 forward gears and 2 reverse gears, giving farmers plenty of options for different tasks. It's a big machine, measuring 140 inches long, 70 inches wide, and 73 inches high. Weighing in at 6500 pounds, it's built to handle heavy-duty jobs. The tractor is equipped with agricultural tires on both front and rear, and it has a category II/I rear hitch for attaching various implements. With its electric starter and 22-quart coolant capacity, the 5 Star is ready for long days in the field.
ManufacturerMinneapolis-MolineEngine4-cylTransPartial Power Shift
Quick specs
- Category
- Agricultural
- Operating Weight
- 6,500 lb
- Transmission
- Partial Power Shift
Overview
About the Minneapolis-Moline 5 Star
The Minneapolis-Moline 5 Star is a powerful and versatile tractor designed for serious farm work. It features a gasoline engine made by Minneapolis-Moline, with four cylinders and a displacement of 283.7 cubic inches. The engine has a bore of 4.25 inches and a stroke of 5 inches, running at a rated speed of 1500 RPM. This tractor comes with power-assisted steering, making it easier to control in tough conditions. The 5 Star has a partial power shift transmission with 10 forward gears and 2 reverse gears, giving farmers plenty of options for different tasks. It's a big machine, measuring 140 inches long, 70 inches wide, and 73 inches high. Weighing in at 6500 pounds, it's built to handle heavy-duty jobs. The tractor is equipped with agricultural tires on both front and rear, and it has a category II/I rear hitch for attaching various implements. With its electric starter and 22-quart coolant capacity, the 5 Star is ready for long days in the field.
Full specifications
Every recorded spec
General
| Manufacturer | Minneapolis-Moline |
|---|---|
| Model | 5 Star |
| Category | Agricultural tractor |
| Operating weight | 6,500lb |
Engine
| Make | Minneapolis-Moline |
|---|---|
| Cylinders | 4 |
| Displacement | 283.7ci |
| Bore | 4.25in |
| Stroke | 5in |
Transmission
| Type | Partial Power Shift |
|---|---|
| Forward gears | 10 |
| Reverse gears | 2 |
Chassis & drive
| Steering | Power Assist |
|---|
Dimensions
| Length | 140in |
|---|---|
| Width | 70in |
| Height | 73in |
| Operating weight | 6,500lb |
Capacities
| Cooling system | 5.5gal |
|---|
Head to head
5 Star vs. Agricultural median
How the Minneapolis-Moline 5 Star compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 284 ci | 336 ci | -15% | 44th |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Forward Gears | 10 | 16 | -37% | 23rd |
| Operating Weight | 6,500 lb | 10,914 lb | -40% | 22nd |
| Length | 140 in | 173 in | -19% | 20th |
| Width | 70 in | 79.5 in | -12% | 32nd |
| Height | 73 in | 111 in | -34% | 11th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared Minneapolis-Moline tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Minneapolis-Moline A4T-1400 | 154 hp | 17,300 lb | — | Compare → |
| Minneapolis-Moline G-VI | — | 8,335 lb | — | Compare → |
| Minneapolis-Moline G1355 | 142 hp | 17,100 lb | 1972–1974 | Compare → |
| Minneapolis-Moline G704 | — | 8,700 lb | — | Compare → |
| Minneapolis-Moline G705 | — | 7,985 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Minneapolis-Moline siblings
Explore
Similar-spec models
Gallery
Minneapolis-Moline 5 Star photos
FAQ
Common questions
How many cylinders does the Minneapolis-Moline 5 Star have?
The Minneapolis-Moline 5 Star runs a 4-cylinder engine with a displacement of 283.7 ci.
What hitch category is the Minneapolis-Moline 5 Star?
The Minneapolis-Moline 5 Star uses a Category II/I hitch.
What is the working weight of the Minneapolis-Moline 5 Star?
The operating weight of the Minneapolis-Moline 5 Star is approximately 6,500 lb.
What type of transmission does the Minneapolis-Moline 5 Star have?
The Minneapolis-Moline 5 Star uses a Partial Power Shift transmission offering 10 forward gears.
What routine service does the Minneapolis-Moline 5 Star need?
Regular maintenance for the Minneapolis-Moline 5 Star includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
