Brand siblingRow Crop

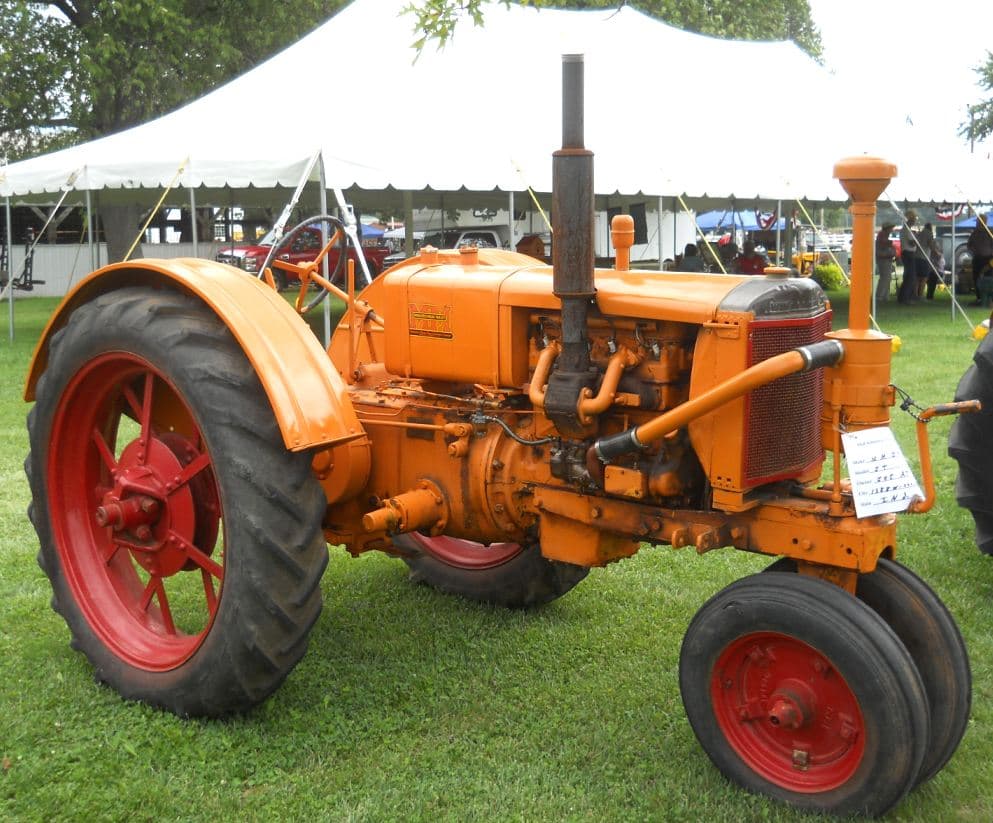

Minneapolis-Moline JT
The Minneapolis-Moline JT is a row crop tractor built for farm work. It has a 2-wheel drive system and manual steering, making it simple to operate. The tractor uses a gear transmission with 5 forward gears and 1 reverse gear, giving farmers good control over speed and power. Under the hood, the JT has a Waukesha gasoline engine with 4 cylinders and 8 valves. The engine is liquid-cooled and naturally aspirated, with a displacement of 196.1 ci. This engine size is below average compared to other tractors. It runs at 1275 rpm, which is also lower than most tractors. The JT weighs 3450 lb, making it a lightweight option for its class. Its compact size (115.5 in long, 79 in wide, and 56 in tall) allows for easy maneuvering in crop rows.
ManufacturerMinneapolis-MolineEngine4-cylTransGear
Quick specs
- Category
- Row Crop
- Operating Weight
- 3,450 lb
- Transmission
- Gear
Overview
About the Minneapolis-Moline JT
The Minneapolis-Moline JT is a row crop tractor built for farm work. It has a 2-wheel drive system and manual steering, making it simple to operate. The tractor uses a gear transmission with 5 forward gears and 1 reverse gear, giving farmers good control over speed and power. Under the hood, the JT has a Waukesha gasoline engine with 4 cylinders and 8 valves. The engine is liquid-cooled and naturally aspirated, with a displacement of 196.1 ci. This engine size is below average compared to other tractors. It runs at 1275 rpm, which is also lower than most tractors. The JT weighs 3450 lb, making it a lightweight option for its class. Its compact size (115.5 in long, 79 in wide, and 56 in tall) allows for easy maneuvering in crop rows.
Full specifications
Every recorded spec
General
| Manufacturer | Minneapolis-Moline |
|---|---|
| Model | JT |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Operating weight | 3,450lb |
Engine
| Make | Waukesha |
|---|---|
| Cylinders | 4 |
| Displacement | 196.1ci |
| Bore | 3.63in |
| Stroke | 4.75in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Dimensions
| Length | 115.5in |
|---|---|
| Width | 79in |
| Height | 56in |
| Operating weight | 3,450lb |
Capacities
| Cooling system | 5gal |
|---|
Head to head
JT vs. Row Crop median
How the Minneapolis-Moline JT compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 196 ci | 391 ci | -50% | 7th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 5 | 16 | -69% | 7th |
| Operating Weight | 3,450 lb | 12,307 lb | -72% | 3rd |
| Length | 116 in | 180 in | -36% | 2nd |
| Width | 79 in | 91.2 in | -13% | 19th |
| Height | 56 in | 114 in | -51% | 1st |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared Minneapolis-Moline tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Minneapolis-Moline 4 Star | — | 5,245 lb | — | Compare → |
| Minneapolis-Moline 445 | — | 4,872 lb | 1956–1959 | Compare → |
| Minneapolis-Moline G1000 | 100 hp | 10,692 lb | 1965–1969 | Compare → |
| Minneapolis-Moline G1050 | — | 10,700 lb | — | Compare → |
| Minneapolis-Moline G550 | — | 6,841 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Minneapolis-Moline siblings
Explore
Similar-spec models
Gallery
Minneapolis-Moline JT photos
FAQ
Common questions
How many cylinders does the Minneapolis-Moline JT have?
The Minneapolis-Moline JT runs a 4-cylinder engine with a displacement of 196.1 ci.
Which transmission does the Minneapolis-Moline JT use?
The Minneapolis-Moline JT is equipped with a Gear transmission with 5 forward gears.
What is the operating weight of the Minneapolis-Moline JT?
In working trim, the Minneapolis-Moline JT comes in at roughly 3,450 lb.
How do I maintain a Minneapolis-Moline JT?
Routine service for the Minneapolis-Moline JT covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
