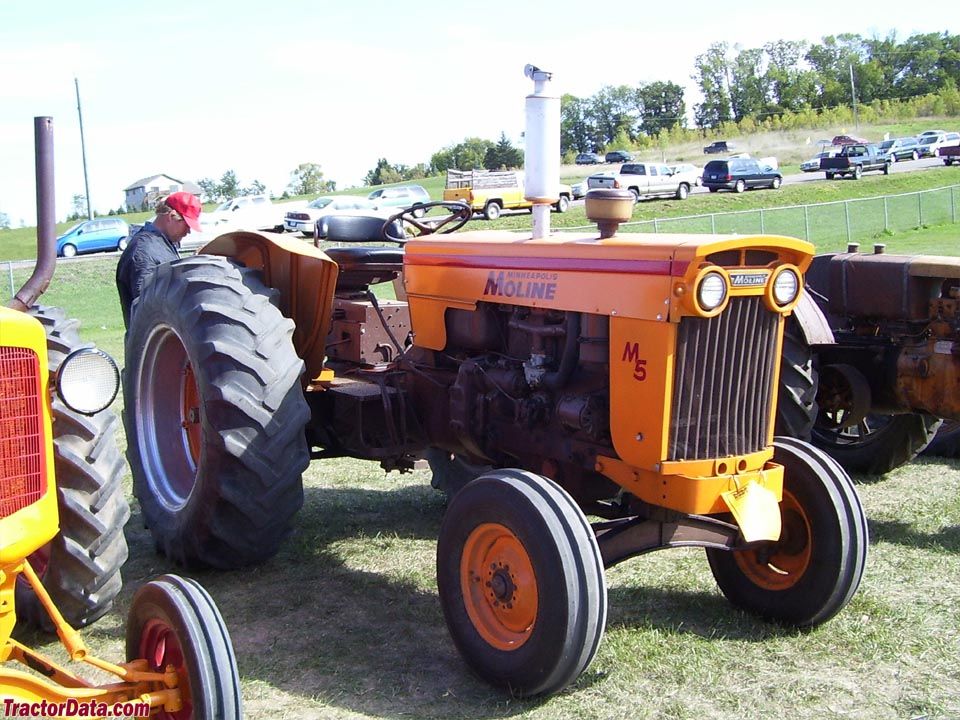

Minneapolis-Moline M-5
The Minneapolis-Moline M-5 is a versatile utility tractor designed for various farm tasks. It features a powerful gasoline engine with four cylinders and a very high displacement of 336 ci. The engine produces 65.56 hp at 1659 rpm, which is above average for its class. This tractor offers good fuel efficiency, using about 5 gallons per hour at maximum power. The M-5 comes with a partial power shift transmission, giving the operator 10 forward gears and 2 reverse gears. It has power-assisted steering for easier handling and a three-point hitch at the rear for attaching implements. The tractor's PTO runs at 540 rpm, making it compatible with many farm tools. With its above-average operating weight of 6765 lb, the M-5 provides good stability for fieldwork. The tractor measures 140 inches long, 84 inches wide, and 72 inches tall, making it suitable for various farm operations while still being manageable in size.
ManufacturerMinneapolis-MolinePower65.56 hpEngine4-cylTransPartial Power Shift
Quick specs
- Category
- Utility
- Engine Power Output
- 66hp
- Operating Weight
- 6,765 lb
- Transmission
- Partial Power Shift
At a glance
How the M-5 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
65.56 hp · 59th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The M-5 ranks at the 59th percentile for engine power among recorded utility tractors.
Overview
About the Minneapolis-Moline M-5
The Minneapolis-Moline M-5 is a versatile utility tractor designed for various farm tasks. It features a powerful gasoline engine with four cylinders and a very high displacement of 336 ci. The engine produces 65.56 hp at 1659 rpm, which is above average for its class. This tractor offers good fuel efficiency, using about 5 gallons per hour at maximum power. The M-5 comes with a partial power shift transmission, giving the operator 10 forward gears and 2 reverse gears. It has power-assisted steering for easier handling and a three-point hitch at the rear for attaching implements. The tractor's PTO runs at 540 rpm, making it compatible with many farm tools. With its above-average operating weight of 6765 lb, the M-5 provides good stability for fieldwork. The tractor measures 140 inches long, 84 inches wide, and 72 inches tall, making it suitable for various farm operations while still being manageable in size.
Full specifications
Every recorded spec
General
| Manufacturer | Minneapolis-Moline |
|---|---|
| Model | M-5 |
| Category | Utility tractor |
| Operating weight | 6,765lb |
Engine
| Make | Minneapolis-Moline |
|---|---|
| Power | 65.56hp |
| Cylinders | 4 |
| Displacement | 336ci |
| Bore | 4.63in |
| Stroke | 5in |
Transmission
| Type | Partial Power Shift |
|---|---|
| Forward gears | 10 |
| Reverse gears | 2 |
Chassis & drive
| Steering | Power Assist |
|---|
Power take-off
| PTO speed | 540rpm |
|---|
Dimensions
| Length | 140in |
|---|---|
| Width | 84in |
| Height | 72in |
| Operating weight | 6,765lb |
Head to head
M-5 vs. Utility median
How the Minneapolis-Moline M-5 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 65.6 hp | 55 hp | +19% | 59th |
| Engine Displacement | 336 ci | 183 ci | +84% | 86th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 10 | 12 | -17% | 39th |
| Operating Weight | 6,765 lb | 5,303 lb | +28% | 65th |
| Length | 140 in | 137 in | +2% | 55th |
| Width | 84 in | 66 in | +27% | 87th |
| Height | 72 in | 94.1 in | -23% | 17th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Minneapolis-Moline tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Minneapolis-Moline GB | 65.64 hp | 11,845 lb | — | Compare → |
| Minneapolis-Moline Jet Star | 56 hp | 3,604 lb | — | Compare → |
| Minneapolis-Moline 445 Universal | 41.95 hp | 7,885 lb | — | Compare → |
| Minneapolis-Moline UDLX | 35.9 hp | 6,393 lb | 1938–1941 | Compare → |
| Minneapolis-Moline 335 | 35.71 hp | 3,070 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 500 | 65 hp | 6,100 lb | — | Compare → |
| Belarus 505 | 65 hp | 7,980 lb | — | Compare → |
| Barreiros 5500 | 67 hp | — | — | Compare → |
| Barreiros 70.7 | 64 hp | 5,450 lb | — | Compare → |
| Allis Chalmers 6060 | 63.21 hp | 6,465 lb | 1980–1984 | Compare → |
Explore
Minneapolis-Moline siblings
Explore
Similar-spec models
Gallery
Minneapolis-Moline M-5 photos
FAQ
Common questions
What is the engine power output of the Minneapolis-Moline M-5?
Rated engine output for the Minneapolis-Moline M-5 is 65.56 hp, delivered by a 4-cylinder engine. The engine displaces 336 ci.
Which transmission does the Minneapolis-Moline M-5 use?
The Minneapolis-Moline M-5 is equipped with a Partial Power Shift transmission with 10 forward gears.
What three-point hitch category does the Minneapolis-Moline M-5 use?
The Minneapolis-Moline M-5 has a Category II three-point hitch.
What is the operating weight of the Minneapolis-Moline M-5?
In working trim, the Minneapolis-Moline M-5 comes in at roughly 6,765 lb.
How do I maintain a Minneapolis-Moline M-5?
Routine service for the Minneapolis-Moline M-5 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
