New Holland 3010
The New Holland 3010 is a utility tractor that was made from 1996 to 2003. It's a 2-wheel drive tractor with power steering, which makes it easy to control. The tractor has a constant mesh transmission with 8 forward gears and 2 reverse gears, giving the driver plenty of options for different tasks. Under the hood, the 3010 has a 3-cylinder diesel engine made by New Holland. The engine is liquid-cooled and naturally aspirated, with average displacement for its class. It can produce 55 horsepower at 2500 RPM, which is about average power for utility tractors. The tractor weighs 4956 pounds and has agricultural tires in the front and back. It's 135.8 inches long, 74.8 inches wide, and 90.9 inches tall. The 3010 has an independent PTO that can run at 540 RPM, making it useful for various farm implements. It also has a gear pump hydraulic system and a two-post ROPS for operator safety.
ManufacturerNew HollandPower55 hpEngine3-cylTransConstant mesh
Quick specs
- Category
- Utility
- Engine Power Output
- 55hp
- Operating Weight
- 4,956 lb
- Transmission
- Constant mesh
At a glance
How the 3010 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
55 hp · 50th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 3010 ranks at the 50th percentile for engine power among recorded utility tractors.
Overview
About the New Holland 3010
The New Holland 3010 is a utility tractor that was made from 1996 to 2003. It's a 2-wheel drive tractor with power steering, which makes it easy to control. The tractor has a constant mesh transmission with 8 forward gears and 2 reverse gears, giving the driver plenty of options for different tasks. Under the hood, the 3010 has a 3-cylinder diesel engine made by New Holland. The engine is liquid-cooled and naturally aspirated, with average displacement for its class. It can produce 55 horsepower at 2500 RPM, which is about average power for utility tractors. The tractor weighs 4956 pounds and has agricultural tires in the front and back. It's 135.8 inches long, 74.8 inches wide, and 90.9 inches tall. The 3010 has an independent PTO that can run at 540 RPM, making it useful for various farm implements. It also has a gear pump hydraulic system and a two-post ROPS for operator safety.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | 3010 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1996–2003 |
| Operating weight | 4,956lb |
Engine
| Make | New Holland |
|---|---|
| Power | 55hp |
| Cylinders | 3 |
| Displacement | 164.8ci |
| Bore | 3.94in |
| Stroke | 4.53in |
Transmission
| Type | Constant mesh |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Drive | 4x2 2WD |
|---|---|
| Steering | Power |
| Brakes | Wet disc |
| Cab | Two-post ROPS |
Hydraulics
| Type | Gear pump |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 135.8in |
|---|---|
| Width | 74.8in |
| Height | 90.9in |
| Operating weight | 4,956lb |
Capacities
| Cooling system | 2.9gal |
|---|
Head to head
3010 vs. Utility median
How the New Holland 3010 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 55 hp | 55 hp | at median | 50th |
| Engine Displacement | 165 ci | 183 ci | -10% | 44th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 4,956 lb | 5,303 lb | -7% | 47th |
| Length | 136 in | 137 in | -1% | 49th |
| Width | 74.8 in | 66 in | +13% | 70th |
| Height | 90.9 in | 94.1 in | -3% | 42nd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland Boomer 55 | 55 hp | 4,194 lb | — | Compare → |
| New Holland T233HST | 55 hp | — | 2008–2008 | Compare → |
| New Holland T2410 | 55 hp | 4,260 lb | — | Compare → |
| New Holland T4.55 | 55 hp | 4,960 lb | — | Compare → |
| New Holland TC55DA | 55 hp | 4,238 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Apollo 554 | 55 hp | 6,239 lb | — | Compare → |
| Ascot Universal 550 | 55 hp | 4,600 lb | — | Compare → |
| Barreiros 5000 | 55 hp | 5,030 lb | — | Compare → |
| Barreiros 5000 VL | 55 hp | 4,080 lb | — | Compare → |
| Belarus 405 | 55 hp | 7,056 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

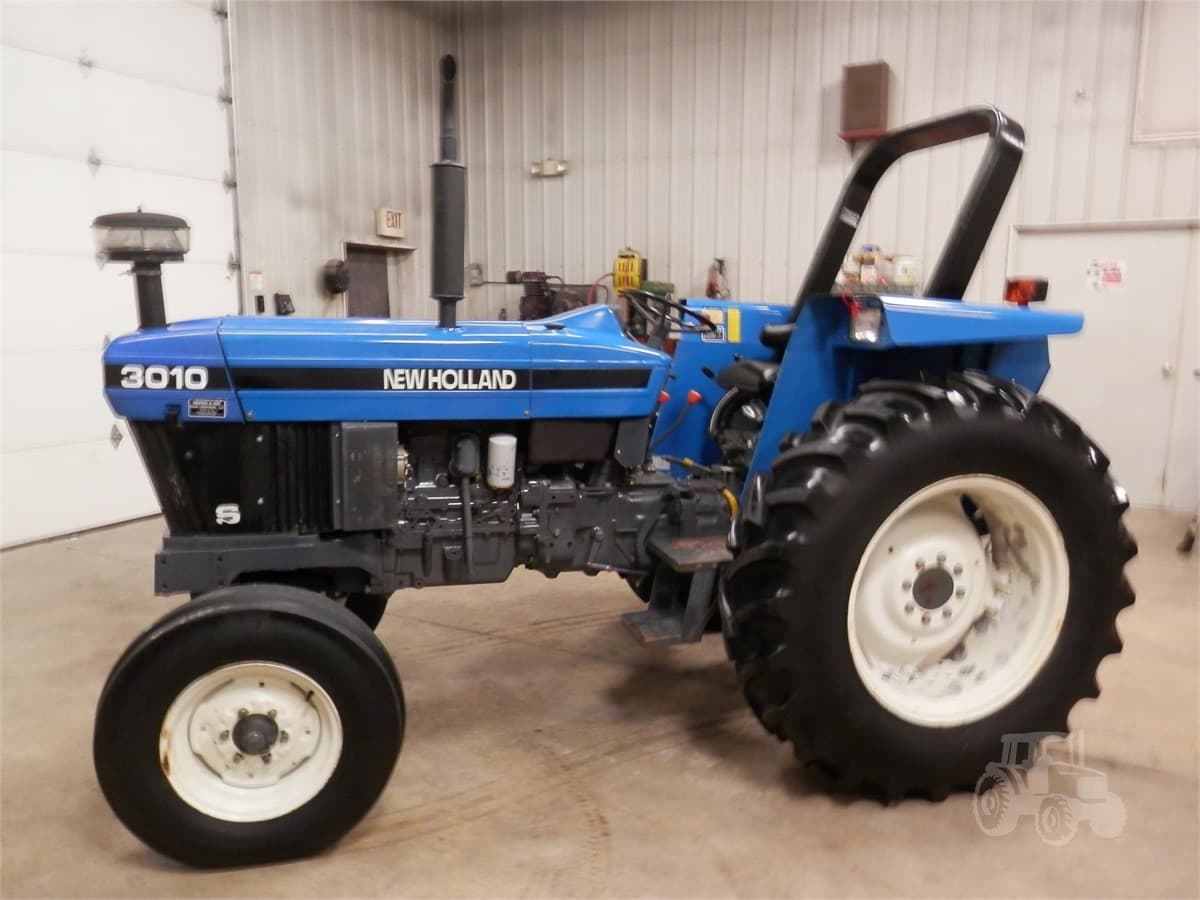

New Holland 3010 photos
FAQ
Common questions
When was the New Holland 3010 made?
The New Holland 3010 was manufactured from 1996 to 2003.
Which transmission does the New Holland 3010 use?
The New Holland 3010 is equipped with a Constant mesh transmission with 8 forward gears.
What hydraulics does the New Holland 3010 have?
The New Holland 3010 uses a Gear pump hydraulic system.
What is the engine power output of the New Holland 3010?
Rated engine output for the New Holland 3010 is 55 hp, delivered by a 3-cylinder engine. The engine displaces 164.8 ci.
What is the operating weight of the New Holland 3010?
In working trim, the New Holland 3010 comes in at roughly 4,956 lb.
How do I maintain a New Holland 3010?
Routine service for the New Holland 3010 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
