New Holland 6610S
The New Holland 6610S is a utility tractor made from 1994 to 2003. It's a strong helper on the farm with its 85 hp engine. This tractor has a 2WD drive type and uses hydrostatic power steering, making it easy to control. The 6610S has a Ford diesel engine with 4 cylinders. It's naturally aspirated and liquid-cooled. The engine size is above average at 304 ci. It has 8 forward gears and 2 reverse gears, which gives good speed options. The top speed is 18.6 mph going forward. The tractor weighs 5,695 lb, which is about average for its class. It has a rear hitch that can lift up to 4,035 lb, which is very high capacity. The PTO runs at 540 rpm, good for many farm tools. The tractor has wet disc brakes and an electric starter. It also has a two-post ROPS for safety. With its 21.5 US gal fuel tank, the 6610S can work for a long time without stopping.
ManufacturerNew HollandPower85 hpEngine4-cylTransUnsynchronized gear
Quick specs
- Category
- Utility
- Engine Power Output
- 85hp
- Operating Weight
- 5,695 lb
- Transmission
- Unsynchronized gear
At a glance
How the 6610S compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
85 hp · 75th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 6610S ranks at the 75th percentile for engine power among recorded utility tractors.
Overview
About the New Holland 6610S
The New Holland 6610S is a utility tractor made from 1994 to 2003. It's a strong helper on the farm with its 85 hp engine. This tractor has a 2WD drive type and uses hydrostatic power steering, making it easy to control. The 6610S has a Ford diesel engine with 4 cylinders. It's naturally aspirated and liquid-cooled. The engine size is above average at 304 ci. It has 8 forward gears and 2 reverse gears, which gives good speed options. The top speed is 18.6 mph going forward. The tractor weighs 5,695 lb, which is about average for its class. It has a rear hitch that can lift up to 4,035 lb, which is very high capacity. The PTO runs at 540 rpm, good for many farm tools. The tractor has wet disc brakes and an electric starter. It also has a two-post ROPS for safety. With its 21.5 US gal fuel tank, the 6610S can work for a long time without stopping.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | 6610S |
| Category | Utility tractor |
| Type | 2WD |
| Years built | 1994–2003 |
| Operating weight | 5,695lb |
Engine
| Make | Ford |
|---|---|
| Model | Ford |
| Power | 85hp |
| Cylinders | 4 |
| Displacement | 304ci |
| Bore | 4.41in |
| Stroke | 5in |
Transmission
| Type | Unsynchronized gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Drive | 2WD |
|---|---|
| Steering | Hydrostatic power |
| Brakes | Wet disc |
| Cab | Two-post ROPS |
Hydraulics
| Type | Gear pump |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 145.2in |
|---|---|
| Height | 95.9in |
| Operating weight | 5,695lb |
Capacities
| Cooling system | 3.44gal |
|---|
Head to head
6610S vs. Utility median
How the New Holland 6610S compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 85 hp | 55 hp | +55% | 75th |
| Engine Displacement | 304 ci | 183 ci | +66% | 84th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 5,695 lb | 5,303 lb | +7% | 53rd |
| Length | 145 in | 137 in | +6% | 61st |
| Height | 95.9 in | 94.1 in | +2% | 54th |
| 3-Point Hitch Capacity | 4,035 lb | 3,197 lb | +26% | 66th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland L85 | 85 hp | 6,834 lb | — | Compare → |
| New Holland NH Ghazi | 85 hp | 4,629.8 lb | — | Compare → |
| New Holland TD85D | 85 hp | — | 2002–2006 | Compare → |
| New Holland TL85E | 85 hp | — | 2002+ | Compare → |
| New Holland TL85E Exitus | 85 hp | 6,945 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agco LT90 | 85 hp | 8,980 lb | — | Compare → |
| Apollo 854 | 85 hp | 10,360 lb | — | Compare → |
| AGCO LT85 | 85.4 hp | 8,450 lb | — | Compare → |
| AGCO GT75 | 83 hp | 5,511 lb | 2004–2007 | Compare → |
| Agco GT75A | 83 hp | 6,040.7 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

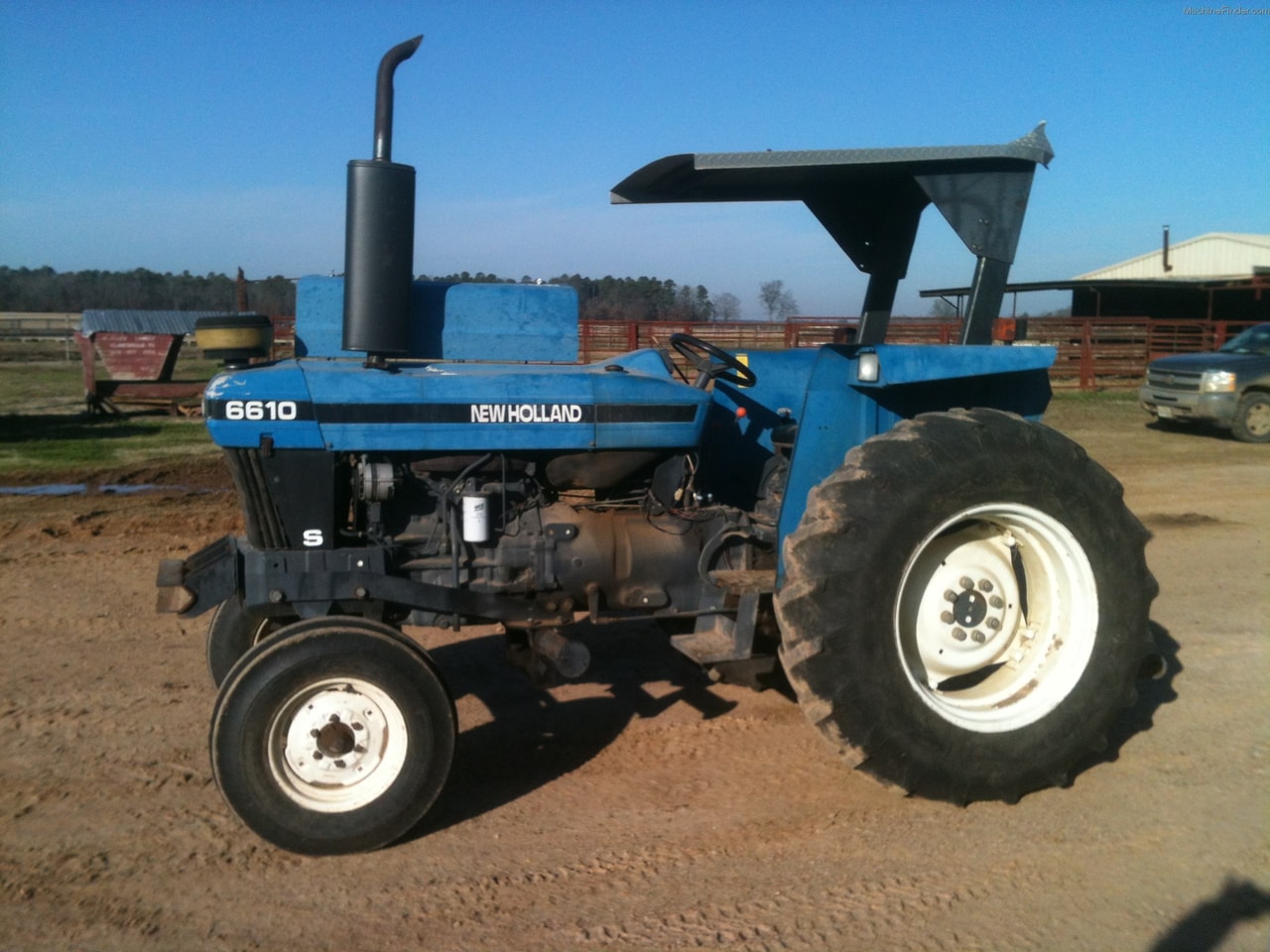

New Holland 6610S photos
FAQ
Common questions
When was the New Holland 6610S in production?
New Holland 6610S production started in 1994 and ended in 2003.
What transmission is in the New Holland 6610S?
Transmission on the New Holland 6610S is Unsynchronized gear, with 8 forward speeds.
What hydraulics does the New Holland 6610S have?
The New Holland 6610S uses a Gear pump hydraulic system.
What three-point hitch category does the New Holland 6610S use?
The New Holland 6610S has a Category II three-point hitch rated to lift 4,035 lb.
How much horsepower does the New Holland 6610S have?
The New Holland 6610S produces 85 hp from its 4-cylinder engine. Engine displacement is 304 ci.
How much does the New Holland 6610S weigh?
The New Holland 6610S weighs about 5,695 lb in operating condition.
What maintenance does the New Holland 6610S require?
Like any tractor, the New Holland 6610S needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
