Row Crop tractorsSpec sheet

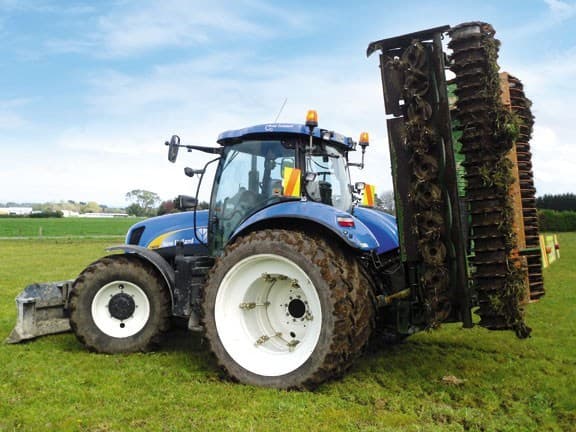

New Holland T6080 Elite
The New Holland T6080 Elite is a powerful row crop tractor built for serious farming. It has a strong 4-wheel drive system and a smooth power shift transmission with 18 forward gears and 6 reverse gears. This makes it easy to find the right speed for any job. Under the hood, there's a 6-cylinder diesel engine made by FPT. It's turbocharged and has 24 valves, giving it plenty of power. The engine puts out 155 horsepower, which is above average for tractors. It's also pretty big, with a displacement of 410.6 cubic inches, which is also above average. The tractor weighs 14,585 pounds, making it sturdy and stable for tough field work. It has a strong hydraulic system and a rear hitch that can handle heavy implements. Some nice extras include a high-pressure fuel system and wet disc brakes for better stopping power.
ManufacturerNew HollandPower155 hp(115.6 kW)Class150–300 HP tractors →Engine6-cylinderTransmissionFull power shift
Key specifications
- Category
- Row Crop
- Engine power
- 155hp
- Operating weight
- 14,585 lb
- Transmission
- Full power shift
Category comparison
T6080 Elite compared with its category
vs. Row Crop medianDistribution
Engine Power (hp)
All recorded Row Crop tractors
155 hp · 60th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The T6080 Elite ranks at the 60th percentile for engine power among recorded row crop tractors.
Overview
About the New Holland T6080 Elite
The New Holland T6080 Elite is a powerful row crop tractor built for serious farming. It has a strong 4-wheel drive system and a smooth power shift transmission with 18 forward gears and 6 reverse gears. This makes it easy to find the right speed for any job. Under the hood, there's a 6-cylinder diesel engine made by FPT. It's turbocharged and has 24 valves, giving it plenty of power. The engine puts out 155 horsepower, which is above average for tractors. It's also pretty big, with a displacement of 410.6 cubic inches, which is also above average. The tractor weighs 14,585 pounds, making it sturdy and stable for tough field work. It has a strong hydraulic system and a rear hitch that can handle heavy implements. Some nice extras include a high-pressure fuel system and wet disc brakes for better stopping power.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | T6080 Elite |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 14,585lb(6,616 kg) |
Engine
| Make | FPT |
|---|---|
| Model | NEF |
| Power | 155hp(115.6 kW) |
| Cylinders | 6 |
| Displacement | 410.6ci(6.73 L) |
| Bore | 4.09in(104 mm) |
| Stroke | 5.2in(132 mm) |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 18 |
| Reverse gears | 6 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | Closed center load sensing |
|---|
Dimensions
| Height | 113.4in(2,880 mm) |
|---|---|
| Operating weight | 14,585lb(6,616 kg) |
Closest alternatives
T6080 Elite compared with the nearest models by horsepower
By engine horsepower, the nearest row crop models to the T6080 Elite are the New Holland T6030 NC PS and the New Holland T7.200. The New Holland T6030 NC PS matches it on rated power and weighs 2,240 lb less, carrying 80 lb per horsepower against 94 lb. The New Holland T7.200 matches it on rated power and weighs 1,800 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the T6080 Elite has the highest weight per horsepower at 94 lb per hp.
| Spec | New Holland T6080 Elite | New Holland T6030 NC PS | New Holland T7.200 |
|---|---|---|---|
| Engine power | 155 hp115.6 kW | 155 hp115.6 kW | 155 hp115.6 kW |
| Operating weight | 14,585 lb6,616 kg | 12,346 lb5,600 kg | 12,787 lb5,800 kg |
| Weight per hp | 94 lb/hp57 kg/kW | 80 lb/hp48 kg/kW | 82 lb/hp50 kg/kW |
| Displacement | 410.6 ci6.73 L | 408.9 ci6.7 L | 411 ci6.74 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Full power shift | 18x6 Power Command | 6-speed power shift |
| Drive | 4WD | - | 4WD |
Calculators
Calculators for the T6080 Elite
PTO power
About 129 to 140 PTO hp
Estimated from the 155 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 155 hp tractor can run
Maximum size is about a 18.5 ft rotary cutter or a 15.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
109 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
155 hp is 115.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
T6080 Elite vs. Row Crop median
New Holland T6080 Elite compared with other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 155 hp | 138 hp | +12% | 60th |
| Engine Displacement | 411 ci | 391 ci | +5% | 60th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 18 | 16 | +13% | 61st |
| Operating Weight | 14,585 lb | 12,307 lb | +19% | 64th |
| Height | 113 in | 114 in | 0% | 49th |
Medians and percentiles are calculated from the row crop tractors in the database that have a recorded value for each specification (sample size 1,140–1,417 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery
New Holland T6080 Elite photos
FAQ
Frequently asked questions
What is the engine power output of the New Holland T6080 Elite?
Rated engine output for the New Holland T6080 Elite is 155 hp, delivered by a 6-cylinder engine. The engine displaces 410.6 ci.
What hydraulics does the New Holland T6080 Elite have?
The New Holland T6080 Elite uses a Closed center load sensing hydraulic system.
What three-point hitch category does the New Holland T6080 Elite use?
The New Holland T6080 Elite has a Category Category 3 three-point hitch.
What is the operating weight of the New Holland T6080 Elite?
The New Holland T6080 Elite has an operating weight of about 14,585 lb.
Which transmission does the New Holland T6080 Elite use?
The New Holland T6080 Elite is equipped with a Full power shift transmission with 18 forward gears.
How do I maintain a New Holland T6080 Elite?
Routine service for the New Holland T6080 Elite covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
