New Holland TB120 Low-Profile
The New Holland TB120 Low-Profile is a powerful utility tractor designed for various farm tasks. It has a strong 6-cylinder engine that produces 115 hp, which is above average for its class. The engine has a very high displacement of 457.7 ci, making it capable of handling tough jobs. This tractor can reach speeds up to 18.3 mph, making it efficient for covering large areas. The TB120 Low-Profile features a constant mesh transmission with 8 forward and 2 reverse gears, giving operators good control over speed and power. It has a Cat II hitch with a lifting capacity of 3600.2 lb, which is above average and suitable for many farm implements. The tractor's hydraulic system is robust, with a pump flow capacity of 18.5 gal/min and two remote control valves. Its compact size, measuring 174.6 inches long, 80.7 inches wide, and 79.2 inches high, makes it easy to maneuver in tight spaces while still providing good ground clearance of 11.5 inches.
ManufacturerNew HollandPower115 hpEngine6-cylTransConstant mesh
Quick specs
- Category
- Utility
- Engine Power Output
- 115hp
- Operating Weight
- 6,523.5 lb
- Transmission
- Constant mesh
At a glance
How the TB120 Low-Profile compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
115 hp · 88th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The TB120 Low-Profile ranks at the 88th percentile for engine power among recorded utility tractors.
Overview
About the New Holland TB120 Low-Profile
The New Holland TB120 Low-Profile is a powerful utility tractor designed for various farm tasks. It has a strong 6-cylinder engine that produces 115 hp, which is above average for its class. The engine has a very high displacement of 457.7 ci, making it capable of handling tough jobs. This tractor can reach speeds up to 18.3 mph, making it efficient for covering large areas. The TB120 Low-Profile features a constant mesh transmission with 8 forward and 2 reverse gears, giving operators good control over speed and power. It has a Cat II hitch with a lifting capacity of 3600.2 lb, which is above average and suitable for many farm implements. The tractor's hydraulic system is robust, with a pump flow capacity of 18.5 gal/min and two remote control valves. Its compact size, measuring 174.6 inches long, 80.7 inches wide, and 79.2 inches high, makes it easy to maneuver in tight spaces while still providing good ground clearance of 11.5 inches.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | TB120 Low-Profile |
| Category | Utility tractor |
| Operating weight | 6,523.5lb |
Engine
| Power | 115hp |
|---|---|
| Cylinders | 6 |
| Displacement | 457.7ci |
Transmission
| Type | Constant mesh |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Dimensions
| Length | 174.6in |
|---|---|
| Width | 80.7in |
| Height | 79.2in |
| Operating weight | 6,523.5lb |
Capacities
| Cooling system | 4.3gal |
|---|
Head to head
TB120 Low-Profile vs. Utility median
How the New Holland TB120 Low-Profile compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 115 hp | 55 hp | +109% | 88th |
| Engine Displacement | 458 ci | 183 ci | +150% | 93rd |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 6,524 lb | 5,303 lb | +23% | 62nd |
| Length | 175 in | 137 in | +28% | 88th |
| Width | 80.7 in | 66 in | +22% | 83rd |
| Height | 79.2 in | 94.1 in | -16% | 27th |
| 3-Point Hitch Capacity | 3,600 lb | 3,197 lb | +13% | 60th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland T6030 Delta | 115 hp | 11,065 lb | 2007–2012 | Compare → |
| New Holland T6050 Delta | 114.8 hp | 11,530 lb | — | Compare → |
| New Holland TV6070 | 115.85 hp | 15,205 lb | — | Compare → |
| New Holland T4.115 | 114 hp | 6,768 lb | — | Compare → |
| New Holland T5.115 | 114 hp | 9,370 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1025 MIG | 115 hp | 9,469 lb | — | Compare → |
| AGCO RT110A | 116.9 hp | 12,200 lb | — | Compare → |
| Allis Chalmers 7000 | 117 hp | 9,550 lb | 1975–1979 | Compare → |
| Agco LT95A | 111.6 hp | 11,070 lb | — | Compare → |
| Allis Chalmers 8010 | 119 hp | 12,630 lb | 1982–1985 | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

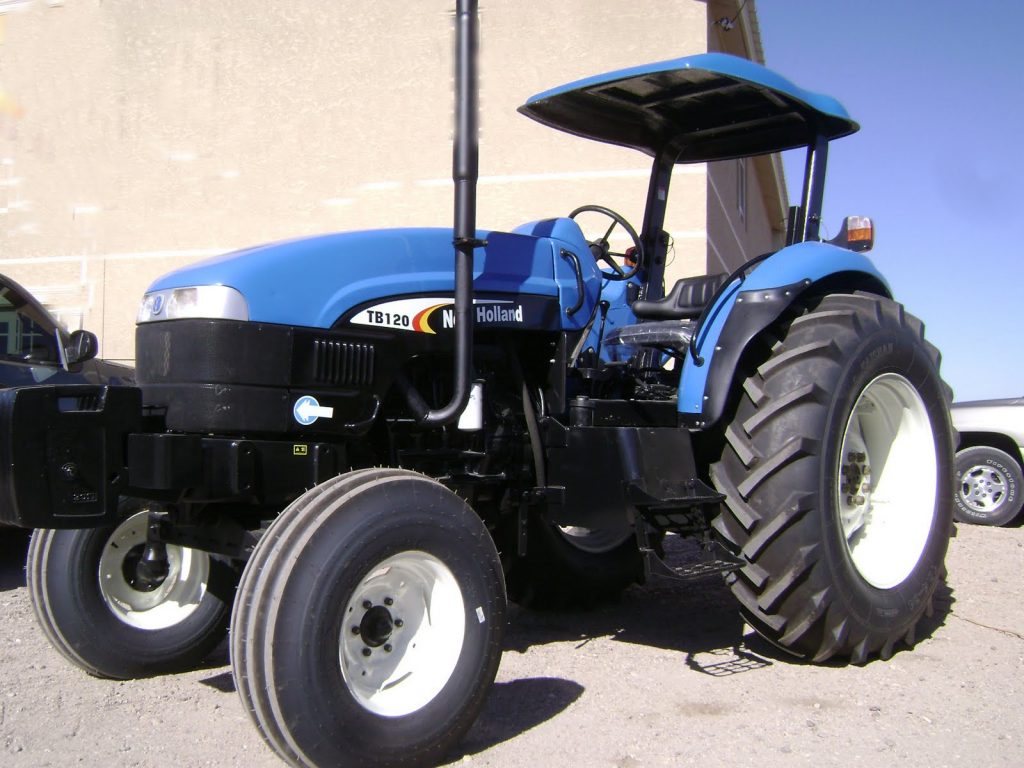

New Holland TB120 Low-Profile photos
FAQ
Common questions
How powerful is the New Holland TB120 Low-Profile?
The New Holland TB120 Low-Profile has an engine power output of 115 hp. It is powered by a 6-cylinder engine displacing 457.7 ci.
What three-point hitch category does the New Holland TB120 Low-Profile use?
The New Holland TB120 Low-Profile has a Category II three-point hitch rated to lift 3,600.2 lb.
What is the working weight of the New Holland TB120 Low-Profile?
The operating weight of the New Holland TB120 Low-Profile is approximately 6,523.5 lb.
What type of transmission does the New Holland TB120 Low-Profile have?
The New Holland TB120 Low-Profile uses a Constant mesh transmission offering 8 forward gears.
What routine service does the New Holland TB120 Low-Profile need?
Regular maintenance for the New Holland TB120 Low-Profile includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
