UtilityPerformance profile
New Holland TC33DA
The New Holland TC33DA is a compact utility tractor made from 2003 to 2005. It's small but strong, perfect for farms and big yards. The tractor is 106.2 inches long, 54.3 inches wide, and 87.8 inches tall. It weighs 2,474 pounds, which is lighter than many other tractors. This tractor has a Shibaura N843 engine with 3 cylinders. It runs on diesel fuel and is cooled by liquid. The engine is small but works hard, with 33 horsepower. It can go fast, spinning up to 2,800 times per minute, which is very high for tractors. The TC33DA has 9 gears for going forward and 3 for going backward. It has a special hitch on the back for attaching tools. The tractor also has a roll-over protection system (ROPS) to keep the driver safe. Some models even have "Supersteer" to help turn more easily.
ManufacturerNew HollandPower33 hpEngine3-cyl
Quick specs
- Category
- Utility
- Engine Power Output
- 33hp
- Operating Weight
- 2,474 lb
At a glance
How the TC33DA compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
33 hp · 25th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The TC33DA ranks at the 25th percentile for engine power among recorded utility tractors.
Overview
About the New Holland TC33DA
The New Holland TC33DA is a compact utility tractor made from 2003 to 2005. It's small but strong, perfect for farms and big yards. The tractor is 106.2 inches long, 54.3 inches wide, and 87.8 inches tall. It weighs 2,474 pounds, which is lighter than many other tractors. This tractor has a Shibaura N843 engine with 3 cylinders. It runs on diesel fuel and is cooled by liquid. The engine is small but works hard, with 33 horsepower. It can go fast, spinning up to 2,800 times per minute, which is very high for tractors. The TC33DA has 9 gears for going forward and 3 for going backward. It has a special hitch on the back for attaching tools. The tractor also has a roll-over protection system (ROPS) to keep the driver safe. Some models even have "Supersteer" to help turn more easily.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | TC33DA |
| Category | Utility tractor |
| Years built | 2003–2005 |
| Operating weight | 2,474lb |
Engine
| Make | Shibaura |
|---|---|
| Model | N843 |
| Power | 33hp |
| Cylinders | 3 |
| Displacement | 91.3ci |
| Bore | 3.31in |
| Stroke | 3.54in |
Transmission
| Forward gears | 9 |
|---|---|
| Reverse gears | 3 |
Chassis & drive
| Cab | ROPS |
|---|
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 106.2in |
|---|---|
| Width | 54.3in |
| Height | 87.8in |
| Operating weight | 2,474lb |
Head to head
TC33DA vs. Utility median
How the New Holland TC33DA compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 33 hp | 55 hp | -40% | 25th |
| Engine Displacement | 91.3 ci | 183 ci | -50% | 17th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 9 | 12 | -25% | 35th |
| Operating Weight | 2,474 lb | 5,303 lb | -53% | 16th |
| Length | 106 in | 137 in | -22% | 13th |
| Width | 54.3 in | 66 in | -18% | 25th |
| Height | 87.8 in | 94.1 in | -7% | 37th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland TC33 | 33 hp | — | 1999–2003 | Compare → |
| New Holland TC33D | 33 hp | 2,474 lb | — | Compare → |
| New Holland 1920 | 33.3 hp | 2,849 lb | 1996–2000 | Compare → |
| New Holland Boomer 33 | 32.2 hp | 2,804 lb | — | Compare → |
| New Holland Workmaster 33 | 32.2 hp | 3,067 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST32 | 33 hp | 2,642 lb | — | Compare → |
| AGCO ST33A | 33 hp | 2,400 lb | — | Compare → |
| AGCO ST34A | 33 hp | 3,000 lb | — | Compare → |
| AGCO ST35 | 33 hp | 3,168 lb | — | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

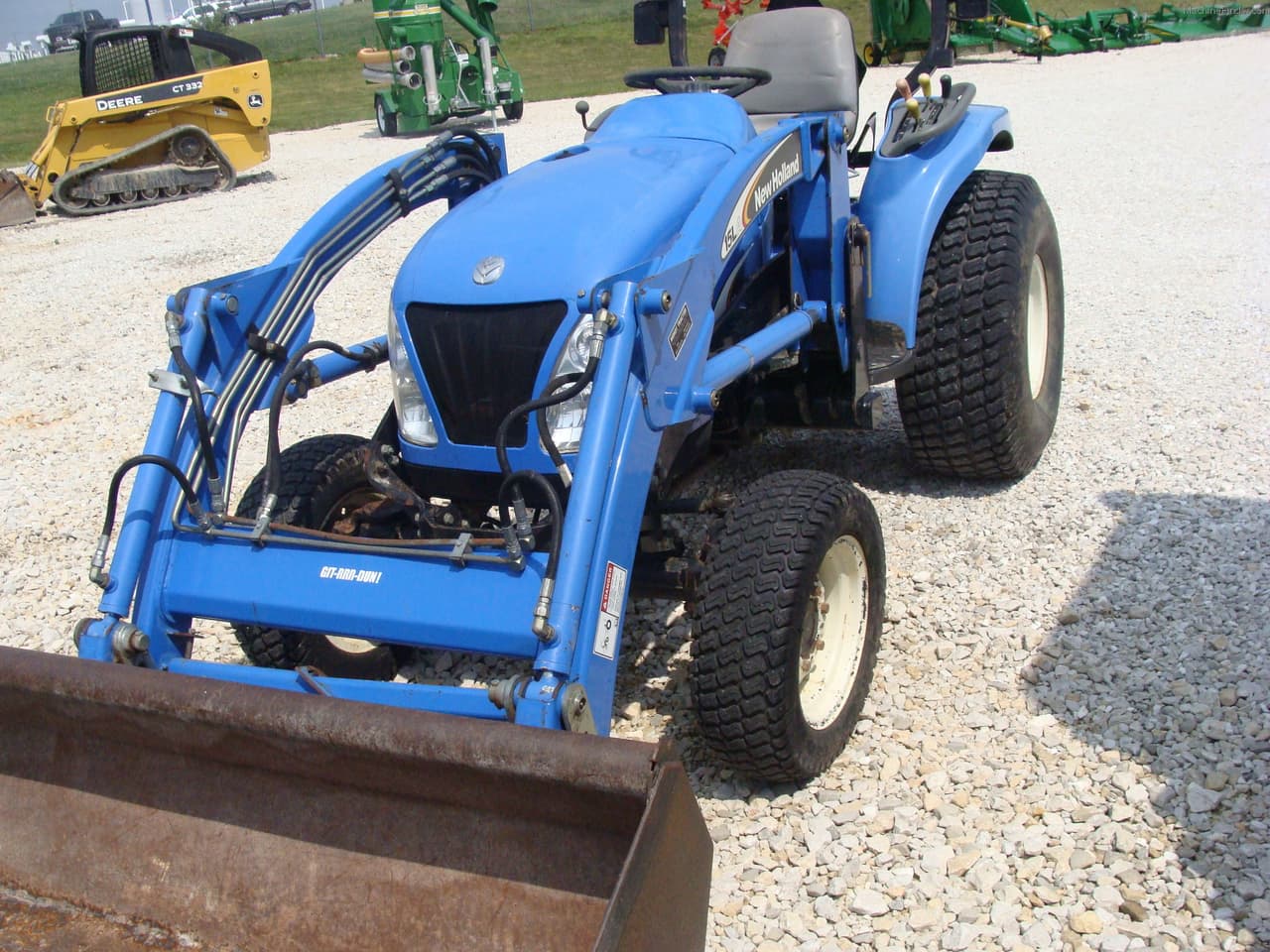

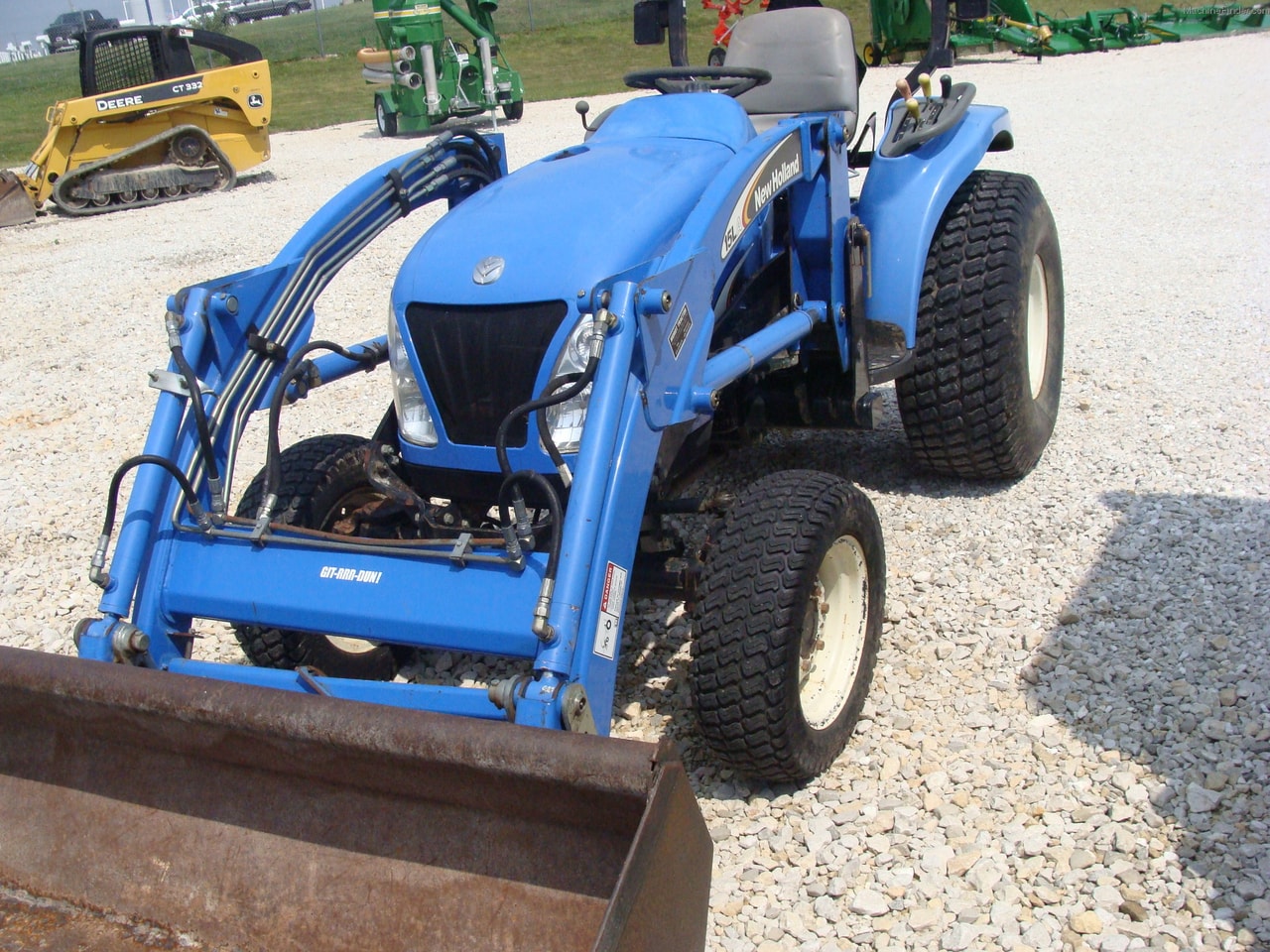

New Holland TC33DA photos
FAQ
Common questions
When was the New Holland TC33DA made?
The New Holland TC33DA was manufactured from 2003 to 2005.
What is the operating weight of the New Holland TC33DA?
In working trim, the New Holland TC33DA comes in at roughly 2,474 lb.
What hydraulics does the New Holland TC33DA have?
The New Holland TC33DA uses an Open Center hydraulic system.
What is the engine power output of the New Holland TC33DA?
Rated engine output for the New Holland TC33DA is 33 hp, delivered by a 3-cylinder engine. The engine displaces 91.3 ci.
How do I maintain a New Holland TC33DA?
Routine service for the New Holland TC33DA covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
