Four-Wheel Drive tractorsSpec sheet
New Holland TJ380
The New Holland TJ380 is a powerful 4-wheel drive tractor built from 2006 to 2007. It has a strong Iveco engine with 6 cylinders and 24 valves. This engine can produce up to 390.87 hp, making it great for tough farm work. The tractor uses diesel fuel and has a turbocharger to boost its power. The TJ380 has a special transmission with 16 forward gears and 2 reverse gears. This gives the driver lots of options for different tasks. The tractor is big, measuring 298 inches long and 150 inches tall. It weighs 41,780 pounds, which helps it handle heavy loads. The tractor has large 480/80R46 tires on both front and back wheels. It also has a strong 3-point hitch that can lift up to 19,620 pounds. The TJ380 is designed to be comfortable too, with a cab that keeps noise down to 76 decibels.
ManufacturerNew HollandPower347 hp(258.8 kW)Class300+ HP tractors →Engine6-cylinderTransmissionSelective gear fixed ratio with full range operator-controlled powershift
Key specifications
- Category
- Four-Wheel Drive
- Engine power
- 347hp
- Operating weight
- 41,780 lb
- Transmission
- Selective gear fixed ratio with full range operator-controlled powershift
Category comparison
TJ380 compared with its category
vs. Four-Wheel Drive medianDistribution
Engine Power (hp)
All recorded Four-Wheel Drive tractors
347 hp · 40th
This model
84
Median 375 hp
549
This modelFour-Wheel Drive tractorsMediann = 162
The TJ380 ranks at the 40th percentile for engine power among recorded four-wheel drive tractors.
Overview
About the New Holland TJ380
The New Holland TJ380 is a powerful 4-wheel drive tractor built from 2006 to 2007. It has a strong Iveco engine with 6 cylinders and 24 valves. This engine can produce up to 390.87 hp, making it great for tough farm work. The tractor uses diesel fuel and has a turbocharger to boost its power. The TJ380 has a special transmission with 16 forward gears and 2 reverse gears. This gives the driver lots of options for different tasks. The tractor is big, measuring 298 inches long and 150 inches tall. It weighs 41,780 pounds, which helps it handle heavy loads. The tractor has large 480/80R46 tires on both front and back wheels. It also has a strong 3-point hitch that can lift up to 19,620 pounds. The TJ380 is designed to be comfortable too, with a cab that keeps noise down to 76 decibels.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | TJ380 |
| Category | Four-Wheel Drive tractor |
| Type | 4x4 articulated 4WD |
| Years built | 2006–2007 |
| Operating weight | 41,780lb(18,950 kg) |
Engine
| Make | Iveco |
|---|---|
| Power | 347hp(258.8 kW) |
| Cylinders | 6 |
| Displacement | 786ci(12.88 L) |
| Bore | 5.31in(135 mm) |
| Stroke | 5.91in(150 mm) |
Transmission
| Type | Selective gear fixed ratio with full range operator-controlled powershift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Brakes | Single wet disc hydraulically actuated by foot pedal |
Hydraulics
| Type | Closed center load sensing |
|---|
Dimensions
| Length | 298in(7,569 mm) |
|---|---|
| Height | 150in(3,810 mm) |
| Operating weight | 41,780lb(18,950 kg) |
Tires
| Front | 480/80R46Convert |
|---|---|
| Rear | 480/80R46Convert |
Capacities
| Cooling system | 21.1gal(79.87 L) |
|---|
Closest alternatives
TJ380 compared with the nearest models by horsepower
The closest four-wheel drive models to the New Holland TJ380 by rated horsepower are the Versatile 950 and the John Deere 8870. The Versatile 950 makes 1 hp more and weighs 10,780 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The John Deere 8870 is rated 3 hp higher and weighs 6,650 lb less, carrying 100 lb per horsepower against 120 lb. It entered production in 1993, 13 years before the TJ380. Of the 3 models, the TJ380 has the highest weight per horsepower at 120 lb per hp.
| Spec | New Holland TJ380 | Versatile 950 | John Deere 8870 |
|---|---|---|---|
| Engine power | 347 hp258.8 kW | 348 hp259.5 kW | 350 hp261 kW |
| Operating weight | 41,780 lb18,951 kg | 31,000 lb14,061 kg | 35,130 lb15,935 kg |
| Weight per hp | 120 lb/hp73 kg/kW | 89 lb/hp54 kg/kW | 100 lb/hp61 kg/kW |
| Displacement | 786 ci12.88 L | 903 ci14.8 L | 619 ci10.14 L |
| Cylinders | 6 | 8 | 6 |
| Transmission | Selective gear fixed ratio with full range operator-controlled powershift | Gear | Powersync Diesel 12 and 24 Speeds |
| Drive | 4WD | - | 4WD |
| Years built | 2006-2007 | - | 1993-1996 |
Calculators
Calculators for the TJ380
PTO power
About 288 to 312 PTO hp
Estimated from the 347 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 347 hp tractor can run
Maximum size is about a 41 ft rotary cutter or a 35 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
140 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
347 hp is 258.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 480/80R46 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Category medians
TJ380 vs. Four-Wheel Drive median
New Holland TJ380 compared with other Four-Wheel Drive tractors
| Spec | This model | Four-Wheel Drive median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 347 hp | 375 hp | -7% | 40th |
| Engine Displacement | 786 ci | 826 ci | -5% | 33rd |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 41,780 lb | 37,428 lb | +12% | 63rd |
| Length | 298 in | 275 in | +8% | 74th |
| Height | 150 in | 143 in | +5% | 76th |
Medians and percentiles are calculated from the four-wheel drive tractors in the database that have a recorded value for each specification (sample size 98–162 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery

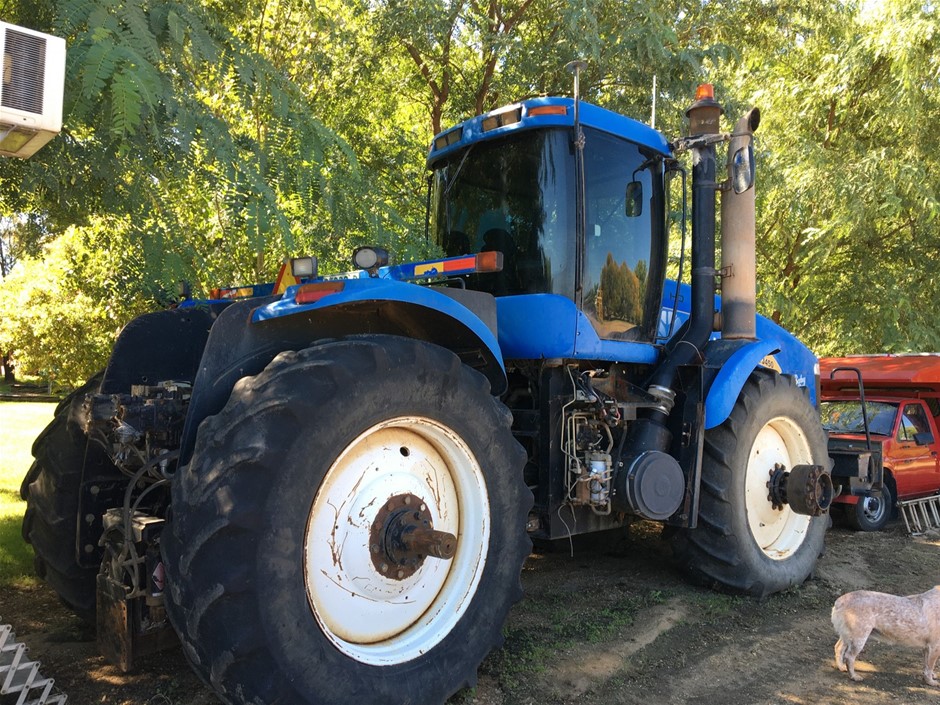

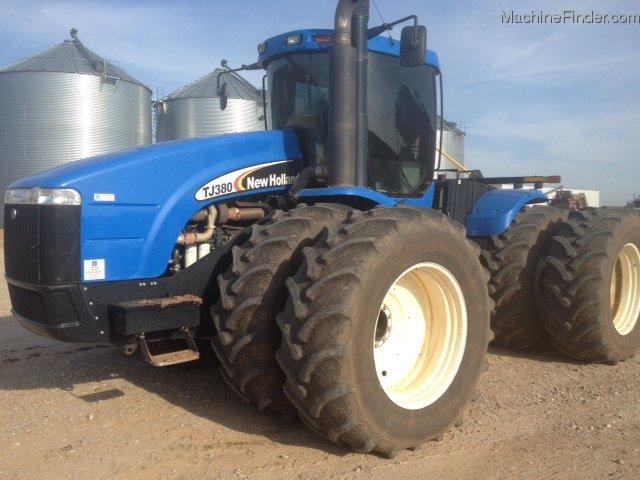

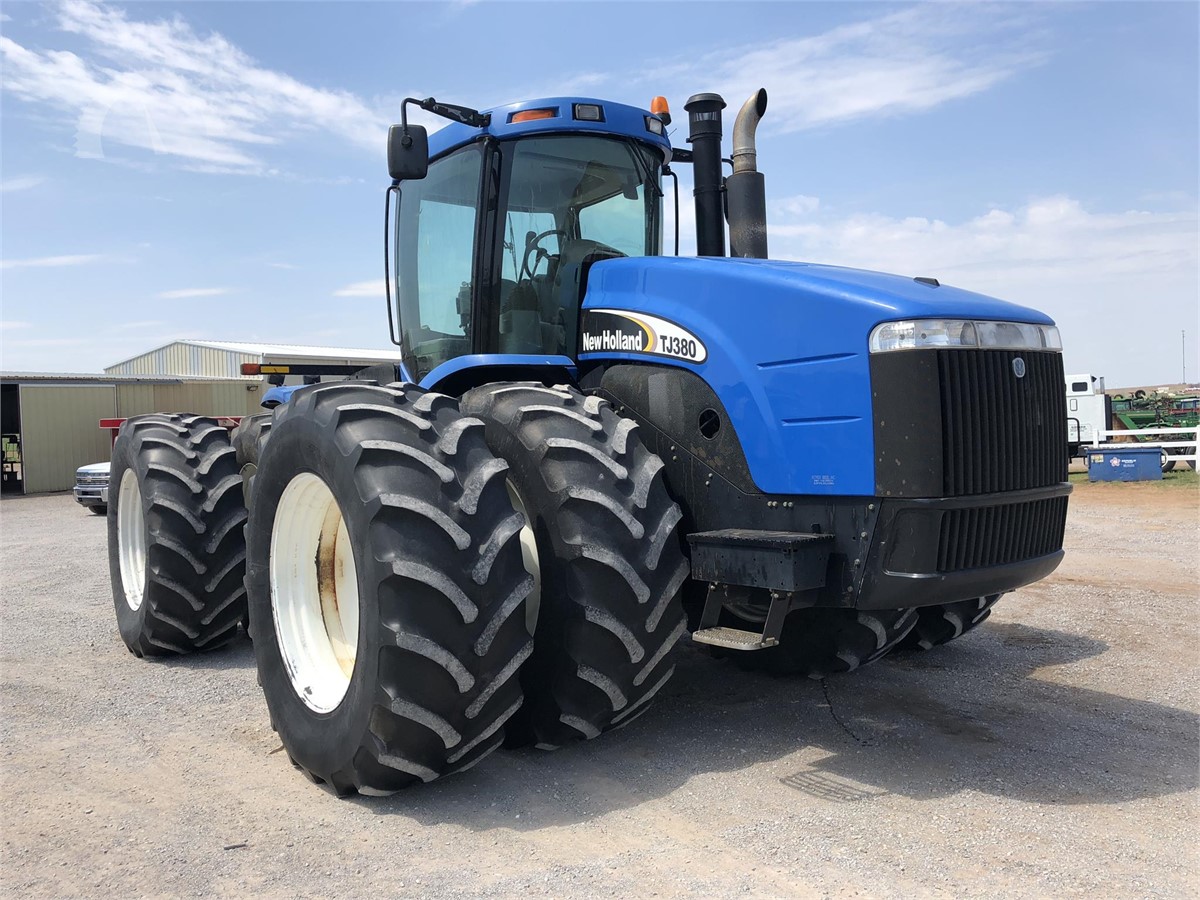

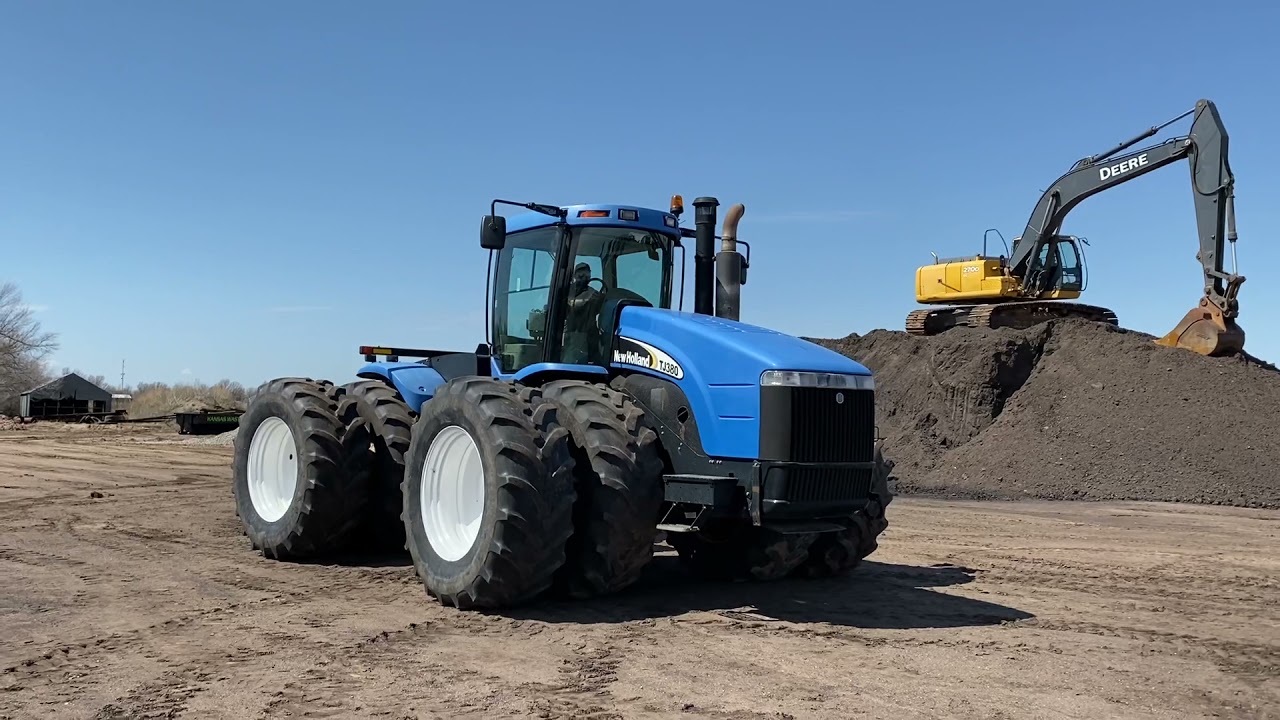

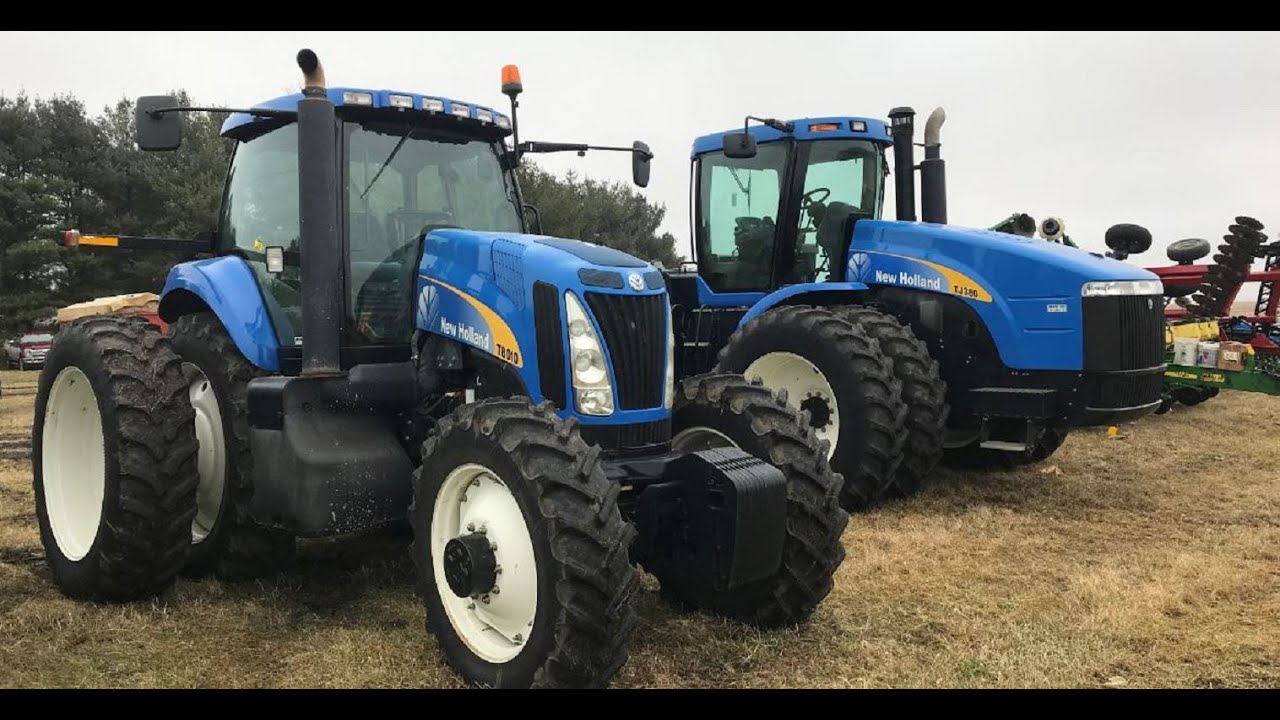

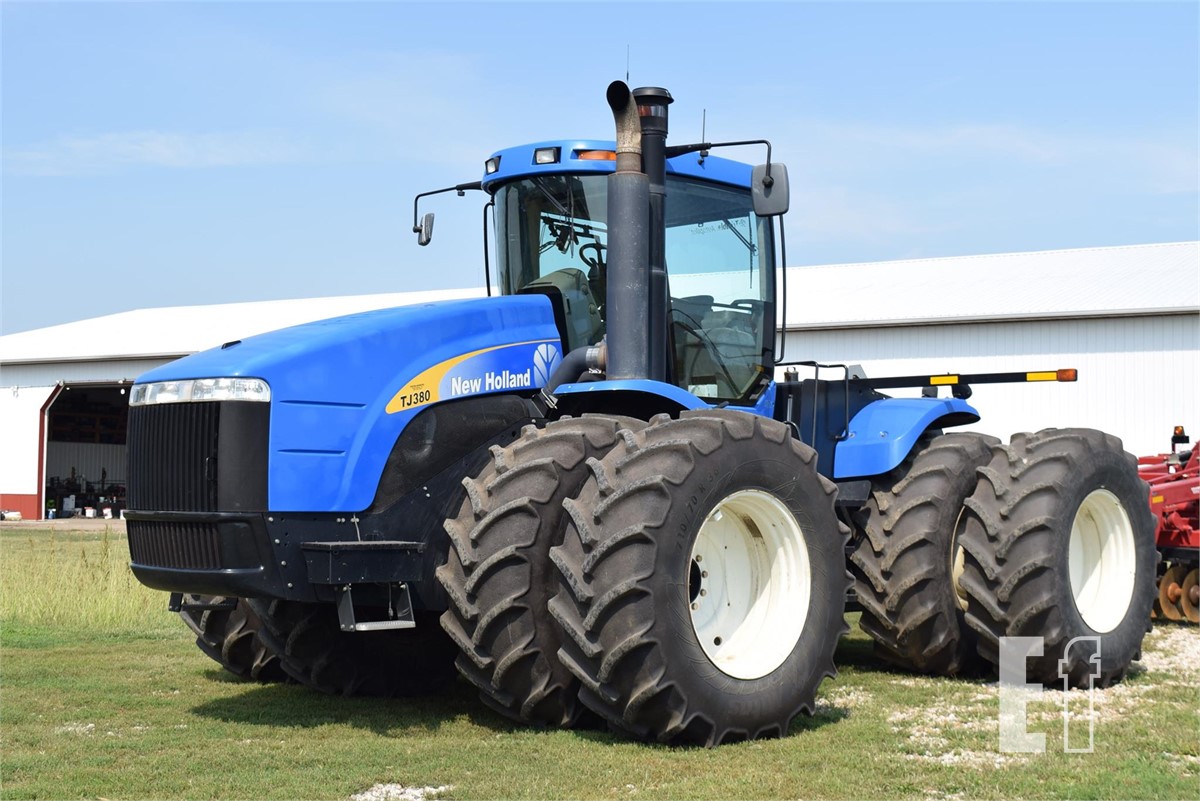

New Holland TJ380 photos
FAQ
Frequently asked questions
When was the New Holland TJ380 in production?
New Holland TJ380 production started in 2006 and ended in 2007.
What type of hydraulic system does the New Holland TJ380 use?
Hydraulics on the New Holland TJ380 are Closed center load sensing.
What size tires does the New Holland TJ380 use?
The New Holland TJ380 is fitted with 480/80R46 front tires and 480/80R46 rear tires from the factory.
What hitch category is the New Holland TJ380?
The New Holland TJ380 uses a Category Category 3 hitch with a lift capacity of 19,620 lb.
How much horsepower does the New Holland TJ380 have?
The New Holland TJ380 produces 347 hp from its 6-cylinder engine. Engine displacement is 786 ci.
How much does the New Holland TJ380 weigh?
The New Holland TJ380 weighs about 41,780 lb in operating condition.
What transmission is in the New Holland TJ380?
Transmission on the New Holland TJ380 is Selective gear fixed ratio with full range operator-controlled powershift, with 16 forward speeds.
What maintenance does the New Holland TJ380 require?
The New Holland TJ380 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
