New Holland Workmaster 120

New Holland Workmaster 120

Complete specifications and technical data for the New Holland Workmaster 120. Compare with similar tractors from New Holland and other manufacturers.

Jump to Full Specifications List

Quick Specs

Category

Utility

Engine Power Output

120hp

Operating Weight

7,738 lb

Transmission

Power shuttle

The New Holland Workmaster 120 is a powerful utility tractor built for tough farm work. It has a strong 120 hp engine made by FPT, which is very high compared to other tractors. The engine has 4 cylin...

Photo Gallery

Image Gallery

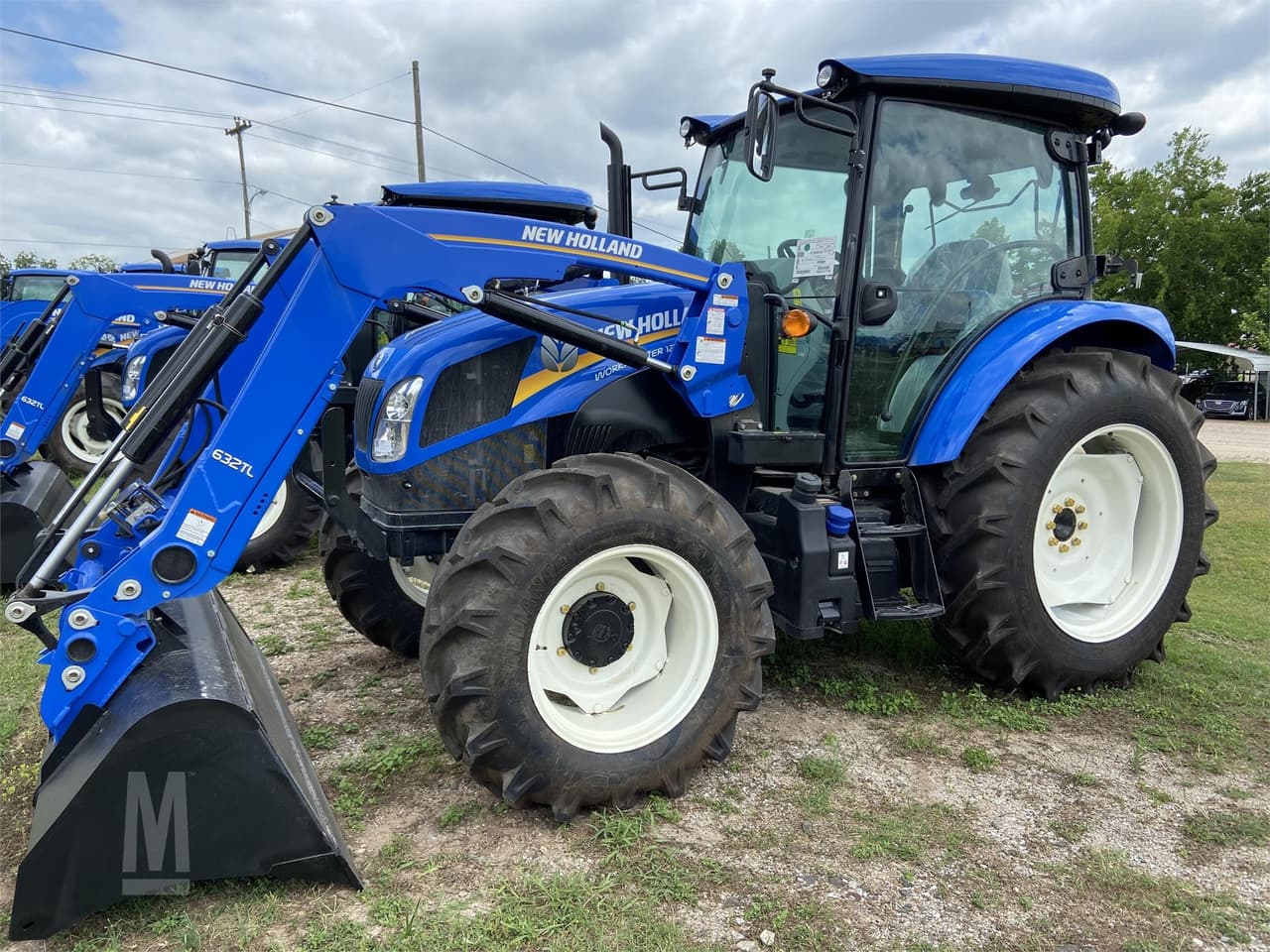

New Holland Workmaster 120 Tractor

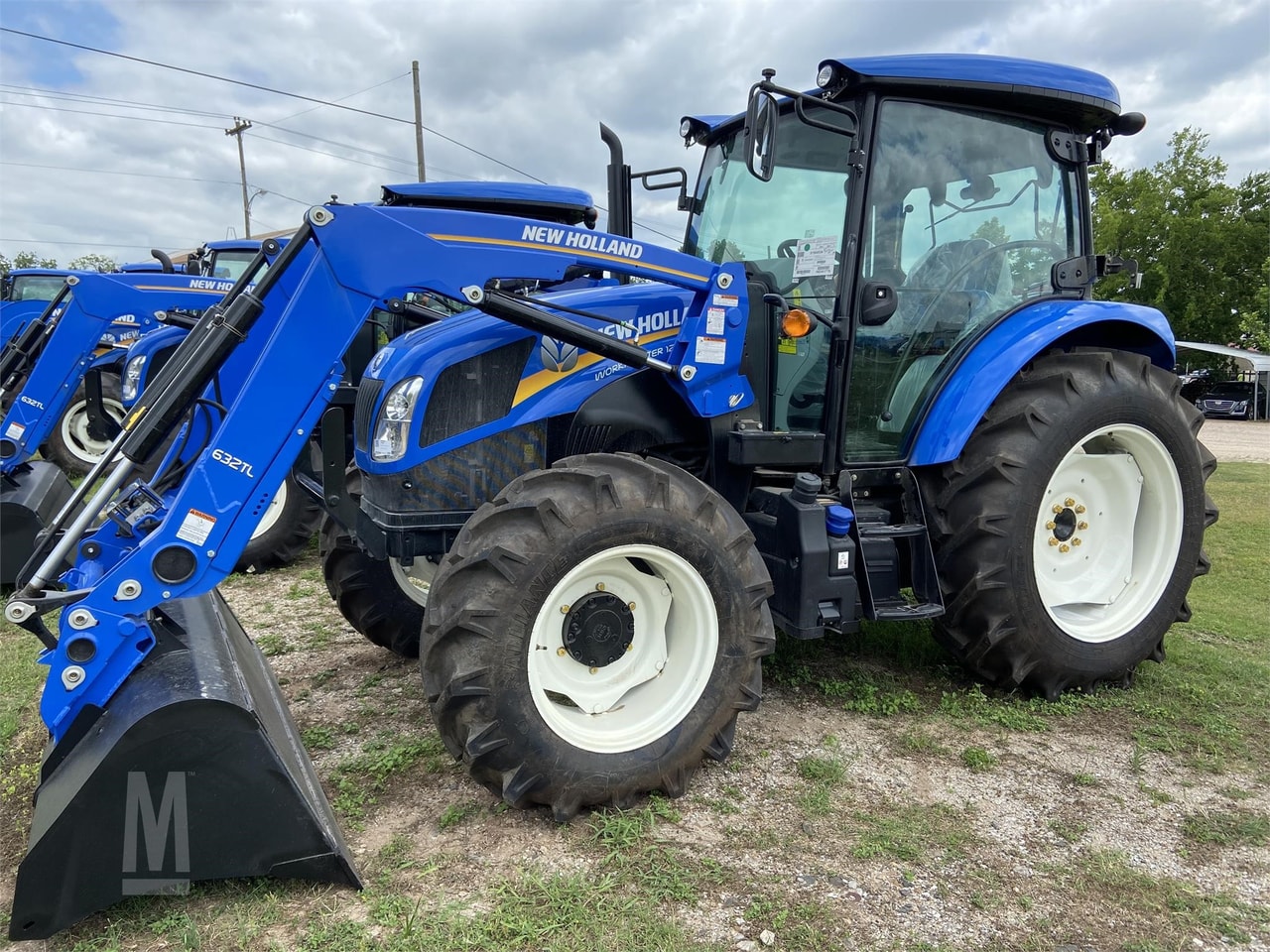

New Holland Workmaster 120 Tractor
New Holland Workmaster 120 Tractor
New Holland Workmaster 120 Tractor
New Holland Workmaster 120 Tractor
New Holland Workmaster 120 Tractor

Specifications

Manufacturer
New Holland
Model
Workmaster 120
Category
Utility
Manufacturer
FPT
Model
F5
Power Output
120hp
Rated RPM
2,300RPM
Cylinders
4
Displacement
207ci
Bore
3.9in
Stroke
4.33in

Engine Power Output Comparison of New Holland Workmaster 120 vs. Other Utility Tractors

Loading Chart...

Type
Power shuttle
Length
161.1in
Operating Weight
7,738lb

Operating Weight Comparison of New Holland Workmaster 120 vs. Other Utility Tractors

Loading Chart...

System Type
Open center
Steering Type
Power
Hitch Type
3
Hitch Category
II/I
Chassis Type
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power

Compare to Other Tractors

Frequently Asked Questions

What is the engine power output of the New Holland Workmaster 120?

The New Holland Workmaster 120 has an engine power output of 120 hp.

How many cylinders does the New Holland Workmaster 120 have?

The New Holland Workmaster 120 is equipped with a 4-cylinder engine.

What is the operating weight of the New Holland Workmaster 120?

The operating weight of the New Holland Workmaster 120 is approximately 7,738 lb.

What type of transmission does the New Holland Workmaster 120 have?

The New Holland Workmaster 120 is equipped with a Power shuttle transmission.

What type of hydraulic system does the New Holland Workmaster 120 use?

The New Holland Workmaster 120 uses a Open center hydraulic system.

What hitch category is the New Holland Workmaster 120?

The New Holland Workmaster 120 is a Category II/I hitch.

What maintenance does the New Holland Workmaster 120 require?

Regular maintenance for the New Holland Workmaster 120 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
