New Holland Workmaster 25S

New Holland Workmaster 25S

Complete specifications and technical data for the New Holland Workmaster 25S. Compare with similar tractors from New Holland and other manufacturers.

Jump to Full Specifications List

Quick Specs

Category

Utility

Engine Power Output

25hp

Operating Weight

1,444 lb

Transmission

Hydrostatic

The New Holland Workmaster 25S is a small but mighty utility tractor perfect for light farm work and landscaping. It's a sub-compact model with a 4-wheel drive system and power steering, making it eas...

Photo Gallery

Image Gallery

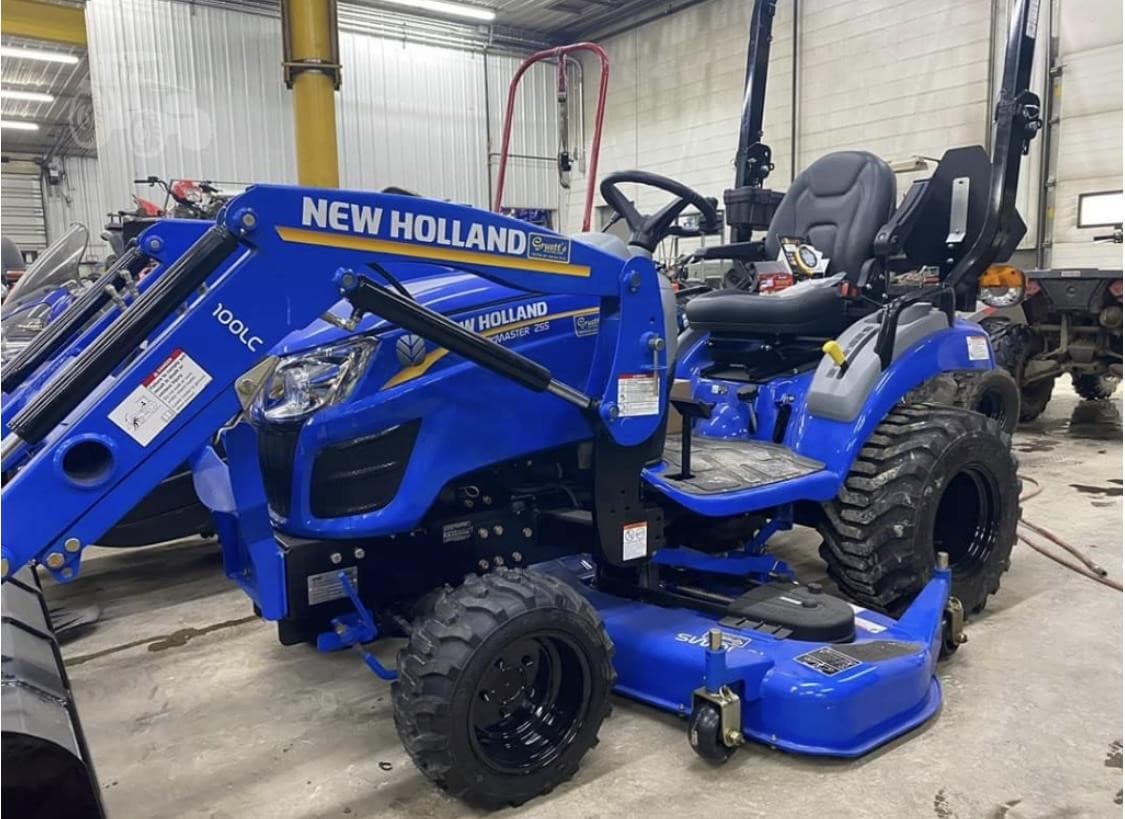

New Holland Workmaster 25S Tractor
New Holland Workmaster 25S Tractor
New Holland Workmaster 25S Tractor
New Holland Workmaster 25S Tractor
New Holland Workmaster 25S Tractor
New Holland Workmaster 25S Tractor

Specifications

Manufacturer
New Holland
Model
Workmaster 25S
Category
Utility, Sub-Compact
Manufacturer
Yanmar
Model
3TNV80F
Power Output
24.7hp
Rated RPM
3,000RPM
Cylinders
3
Displacement
77.2ci
Bore
3.15in
Stroke
3.3in

Engine Power Output Comparison of New Holland Workmaster 25S vs. Other Utility Tractors

Loading Chart...

Engine Power Output Comparison of New Holland Workmaster 25S vs. Other Sub-Compact Tractors

Loading Chart...

Type
Hydrostatic
Length
97.4in
Width
46.7in
Height
87.4in
Operating Weight
1,444lb

Operating Weight Comparison of New Holland Workmaster 25S vs. Other Utility Tractors

Loading Chart...

Operating Weight Comparison of New Holland Workmaster 25S vs. Other Sub-Compact Tractors

Loading Chart...

System Type
Open Center
Steering Type
Power
Type
Independent
Speed 1
540rpm
PTO Speed (2nd)
2,500rpm
Speed 2
2,500rpm
Hitch Category
Category 1
Hitch Position
Rear
Chassis Type
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Standard
Tier IV
Type
ROPS

Compare to Other Tractors

Frequently Asked Questions

What is the engine power output of the New Holland Workmaster 25S?

The New Holland Workmaster 25S has an engine power output of 24.7 hp.

How many cylinders does the New Holland Workmaster 25S have?

The New Holland Workmaster 25S is equipped with a 3-cylinder engine.

What is the operating weight of the New Holland Workmaster 25S?

The operating weight of the New Holland Workmaster 25S is approximately 1,444 lb.

What type of transmission does the New Holland Workmaster 25S have?

The New Holland Workmaster 25S is equipped with a Hydrostatic transmission.

What type of hydraulic system does the New Holland Workmaster 25S use?

The New Holland Workmaster 25S uses a Open Center hydraulic system.

What hitch category is the New Holland Workmaster 25S?

The New Holland Workmaster 25S is a Category Category 1 hitch.

What maintenance does the New Holland Workmaster 25S require?

Regular maintenance for the New Holland Workmaster 25S includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
