UtilityPerformance profile
New Holland Workmaster 35
The New Holland Workmaster 35 is a utility tractor built for everyday farm tasks. It has a 4x4 drive system and power steering, making it easy to handle in various conditions. The tractor comes with a 12-speed transmission for both forward and reverse gears, giving drivers plenty of options for different jobs. Under the hood, the Workmaster 35 has a LS Mitron L3C19-T engine. This diesel engine has three cylinders and is turbocharged for extra power. It can produce 35 horsepower, which is about average for tractors in its class. The engine is liquid-cooled and has features like exhaust gas recirculation and glow plugs for better performance. The tractor's size is compact, measuring 121 inches long, 66.5 inches wide, and 87.7 inches tall. It weighs 3,067 pounds, making it lighter than many other tractors. This New Holland model also has an open center hydraulic system and a ROPS (Roll-Over Protective Structure) for operator safety.
ManufacturerNew HollandPower35 hpEngine3-cyl
Quick specs
- Category
- Utility
- Engine Power Output
- 35hp
- Operating Weight
- 3,067 lb
At a glance
How the Workmaster 35 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
35 hp · 28th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Workmaster 35 ranks at the 28th percentile for engine power among recorded utility tractors.
Overview
About the New Holland Workmaster 35
The New Holland Workmaster 35 is a utility tractor built for everyday farm tasks. It has a 4x4 drive system and power steering, making it easy to handle in various conditions. The tractor comes with a 12-speed transmission for both forward and reverse gears, giving drivers plenty of options for different jobs. Under the hood, the Workmaster 35 has a LS Mitron L3C19-T engine. This diesel engine has three cylinders and is turbocharged for extra power. It can produce 35 horsepower, which is about average for tractors in its class. The engine is liquid-cooled and has features like exhaust gas recirculation and glow plugs for better performance. The tractor's size is compact, measuring 121 inches long, 66.5 inches wide, and 87.7 inches tall. It weighs 3,067 pounds, making it lighter than many other tractors. This New Holland model also has an open center hydraulic system and a ROPS (Roll-Over Protective Structure) for operator safety.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | Workmaster 35 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,067lb |
Engine
| Make | LS Mitron |
|---|---|
| Model | L3C19-T |
| Power | 35hp |
| Cylinders | 3 |
| Displacement | 117.2ci |
| Bore | 3.47in |
| Stroke | 4.13in |
Transmission
| Forward gears | 12 |
|---|---|
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD 4WD |
| Steering | Power |
| Cab | ROPS |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 121in |
|---|---|
| Width | 66.5in |
| Height | 87.7in |
| Operating weight | 3,067lb |
Head to head
Workmaster 35 vs. Utility median
How the New Holland Workmaster 35 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 35 hp | 55 hp | -36% | 28th |
| Engine Displacement | 117 ci | 183 ci | -36% | 28th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,067 lb | 5,303 lb | -42% | 24th |
| Length | 121 in | 137 in | -11% | 28th |
| Width | 66.5 in | 66 in | +1% | 51st |
| Height | 87.7 in | 94.1 in | -7% | 37th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland Boomer 2035 | 35 hp | 2,620 lb | — | Compare → |
| New Holland Boomer 35 | 35 hp | 2,913 lb | — | Compare → |
| New Holland T1520 | 35 hp | 2,403 lb | 2008–2013 | Compare → |
| New Holland TC34DA | 35 hp | 2,514 lb | 2005–2008 | Compare → |
| New Holland TC35 | 35 hp | 3,096 lb | 2000–2003 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK3540 | 35 hp | 3,895 lb | — | Compare → |
| Apollo 354 | 35 hp | — | — | Compare → |
| Barreiros R-335 S | 35 hp | — | — | Compare → |
| Allis Chalmers WD | 34.63 hp | — | 1948–1953 | Compare → |
| Allis Chalmers U | 34.12 hp | 5,030 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

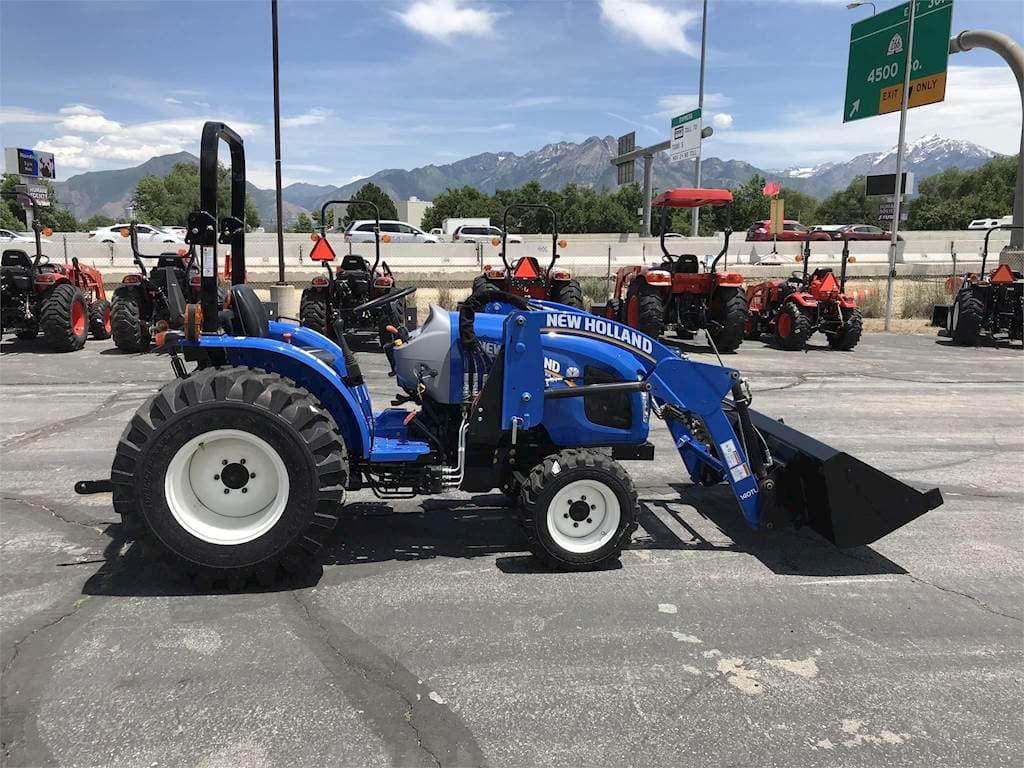

New Holland Workmaster 35 photos
FAQ
Common questions
What is the engine power output of the New Holland Workmaster 35?
Rated engine output for the New Holland Workmaster 35 is 35 hp, delivered by a 3-cylinder engine. The engine displaces 117.2 ci.
What hydraulics does the New Holland Workmaster 35 have?
The New Holland Workmaster 35 uses an Open Center hydraulic system.
What three-point hitch category does the New Holland Workmaster 35 use?
The New Holland Workmaster 35 has a Category Category 3 three-point hitch.
What is the operating weight of the New Holland Workmaster 35?
In working trim, the New Holland Workmaster 35 comes in at roughly 3,067 lb.
How do I maintain a New Holland Workmaster 35?
Routine service for the New Holland Workmaster 35 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
