Sub-CompactPerformance profile

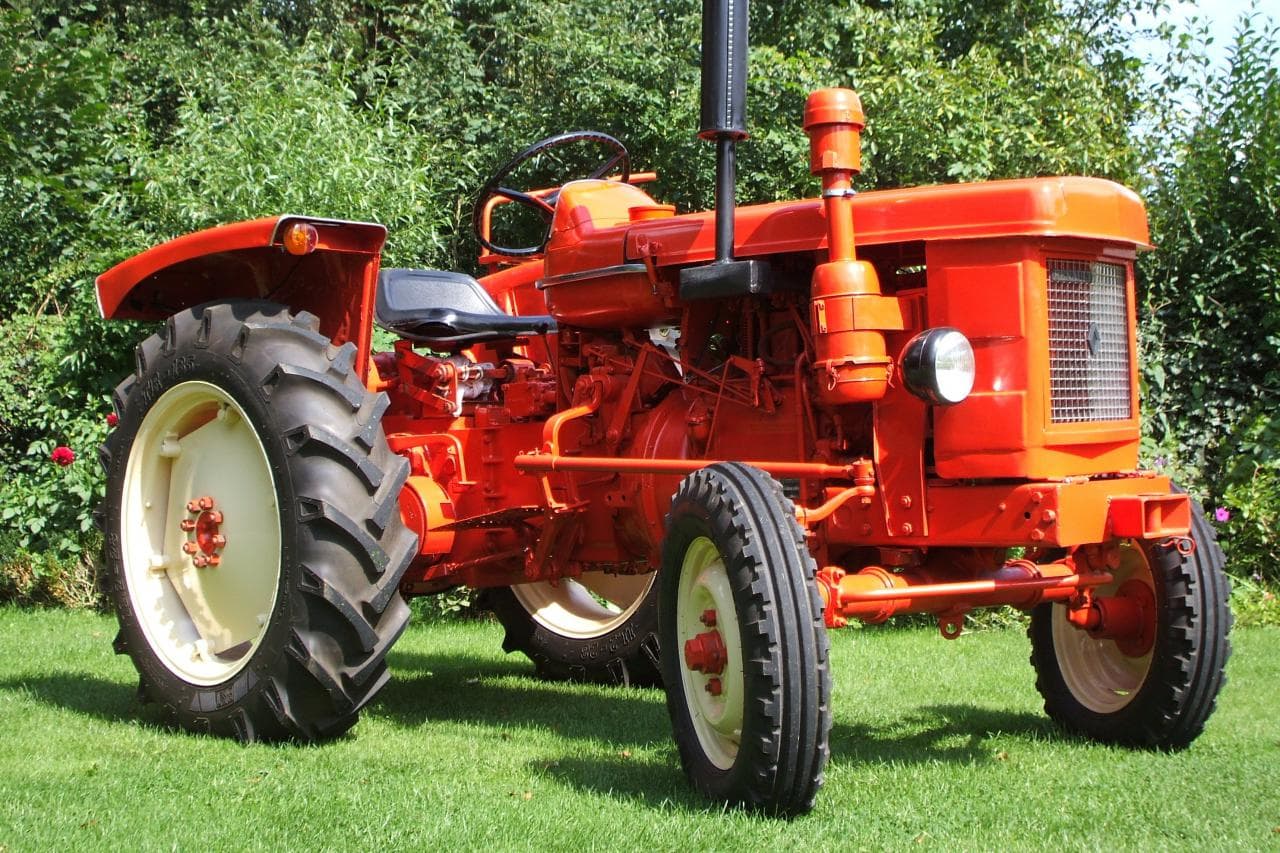

Renault Super 3D

The Renault Super 3D is a compact 2WD tractor designed for light farming tasks. It features a simple 4x2 chassis and mechanical steering, making it easy to operate. The tractor has a 6-speed forward transmission with 1 reverse gear, offering good flexibility for various jobs. Under the hood, the Super 3D is powered by a MWM D322-2 diesel engine. This naturally aspirated engine has 2 cylinders and a displacement of 110.4 cubic inches. It produces 24 horsepower at 2000 RPM, which is suitable for small-scale farming operations. The tractor runs on agricultural tires both front and rear, ensuring good traction in the field. With a length of 124.8 inches, a height of 61.8 inches, and a weight of 3903 pounds, the Super 3D is compact and maneuverable, perfect for working in tight spaces or small farms.

ManufacturerRenaultPower24 hpEngine2-cyl
Jump to specs ↓Compare →
Renault Super 3D
Jump to Full Specifications List

Quick specs

Category
Sub-Compact
Engine Power Output
24hp
Operating Weight
3,903 lb
Compare this model

At a glance

How the Super 3D compares

vs. Sub-Compact median

Distribution

Engine Power (hp)

Across all Sub-Compact tractors

24 hp · 39th

This model

4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816

The Super 3D ranks at the 39th percentile for engine power among recorded sub-compact tractors.

Overview

About the Renault Super 3D

The Renault Super 3D is a compact 2WD tractor designed for light farming tasks. It features a simple 4x2 chassis and mechanical steering, making it easy to operate. The tractor has a 6-speed forward transmission with 1 reverse gear, offering good flexibility for various jobs. Under the hood, the Super 3D is powered by a MWM D322-2 diesel engine. This naturally aspirated engine has 2 cylinders and a displacement of 110.4 cubic inches. It produces 24 horsepower at 2000 RPM, which is suitable for small-scale farming operations. The tractor runs on agricultural tires both front and rear, ensuring good traction in the field. With a length of 124.8 inches, a height of 61.8 inches, and a weight of 3903 pounds, the Super 3D is compact and maneuverable, perfect for working in tight spaces or small farms.

Full specifications

Every recorded spec

General

ManufacturerRenault
ModelSuper 3D
CategorySub-Compact tractor
Type4x2 2WD
Operating weight3,903lb

Engine

MakeMWM
ModelD322-2
Power24hp
Cylinders2
Displacement110.4ci
Bore3.86in
Stroke4.72in

Transmission

Forward gears6
Reverse gears1

Chassis & drive

Chassis4x2 2WD
Drive2WD
SteeringMechanical

Dimensions

Length124.8in
Height61.8in
Operating weight3,903lb

Head to head

Super 3D vs. Sub-Compact median

How the Renault Super 3D compares to other Sub-Compact tractors

SpecThis modelSub-Compact medianDifferencePercentile
Engine Power24 hp26.9 hp-11%39th
Engine Displacement110 ci91.4 ci+21%63rd
Cylinders23-33%11th
Forward Gears69-33%18th
Operating Weight3,903 lb2,700 lb+45%77th
Length125 in113 in+10%67th
Height61.8 in78.4 in-21%23rd

Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 616–816 models).

Explore

Renault siblings

All Renault models →

Explore

Similar-spec models

FAQ

Common questions

What is the engine power output of the Renault Super 3D?

Rated engine output for the Renault Super 3D is 24 hp, delivered by a 2-cylinder engine. The engine displaces 110.4 ci.

What is the operating weight of the Renault Super 3D?

In working trim, the Renault Super 3D comes in at roughly 3,903 lb.

How do I maintain a Renault Super 3D?

Routine service for the Renault Super 3D covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
