Sub-CompactPerformance profile
Shibaura SP2540
The Shibaura SP2540 is a compact and versatile tractor designed for various farming tasks. It features a 24.7 hp diesel engine made by Shibaura, with three cylinders and liquid cooling. The engine is naturally aspirated and runs at 2600 rpm, providing reliable power for everyday farm work. This tractor comes with a synchromesh transmission, offering 12 forward and 4 reverse gears for a total of 16 gears. This gives operators plenty of options for different tasks and speeds. The SP2540 has agricultural tires on both front and rear, making it suitable for field work. It measures 100 inches long, 46.7 inches wide, and 71.7 inches tall, with a weight of 2039 lb. The tractor is equipped with a Category I rear hitch, electric starter, and has a ground clearance of 12 inches, making it easy to maneuver in various farm conditions.
ManufacturerShibauraPower24.7 hpEngine3-cylTransSynchromesh
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 25hp
- Operating Weight
- 2,039 lb
- Transmission
- Synchromesh
At a glance
How the SP2540 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
24.7 hp · 43rd
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The SP2540 ranks at the 43rd percentile for engine power among recorded sub-compact tractors.
Overview
About the Shibaura SP2540
The Shibaura SP2540 is a compact and versatile tractor designed for various farming tasks. It features a 24.7 hp diesel engine made by Shibaura, with three cylinders and liquid cooling. The engine is naturally aspirated and runs at 2600 rpm, providing reliable power for everyday farm work. This tractor comes with a synchromesh transmission, offering 12 forward and 4 reverse gears for a total of 16 gears. This gives operators plenty of options for different tasks and speeds. The SP2540 has agricultural tires on both front and rear, making it suitable for field work. It measures 100 inches long, 46.7 inches wide, and 71.7 inches tall, with a weight of 2039 lb. The tractor is equipped with a Category I rear hitch, electric starter, and has a ground clearance of 12 inches, making it easy to maneuver in various farm conditions.
Full specifications
Every recorded spec
General
| Manufacturer | Shibaura |
|---|---|
| Model | SP2540 |
| Category | Sub-Compact tractor |
| Operating weight | 2,039lb |
Engine
| Make | Shibaura |
|---|---|
| Model | J843 |
| Power | 24.7hp |
| Cylinders | 3 |
| Displacement | 81.2ci |
| Bore | 3.31in |
| Stroke | 3.15in |
Transmission
| Type | Synchromesh |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Dimensions
| Length | 100in |
|---|---|
| Width | 46.7in |
| Height | 71.7in |
| Operating weight | 2,039lb |
Head to head
SP2540 vs. Sub-Compact median
How the Shibaura SP2540 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 24.7 hp | 26.9 hp | -8% | 43rd |
| Engine Displacement | 81.2 ci | 91.4 ci | -11% | 42nd |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 2,039 lb | 2,700 lb | -24% | 37th |
| Length | 100 in | 113 in | -12% | 30th |
| Width | 46.7 in | 50.7 in | -8% | 35th |
| Height | 71.7 in | 78.4 in | -9% | 32nd |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Shibaura tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Shibaura SE2500 | 25 hp | 2,326 lb | — | Compare → |
| Shibaura SE2540 | 25 hp | 2,326 lb | — | Compare → |
| Shibaura SD2604 | 26 hp | 2,724 lb | — | Compare → |
| Shibaura SP2140 | 20.7 hp | 1,268 lb | — | Compare → |
| Shibaura ST329 | 29 hp | 2,392 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Bobcat CT1025 | 24.5 hp | 1,488 lb | — | Compare → |
| Allis Chalmers 5020 | 25 hp | 2,060 lb | 1977–1985 | Compare → |
| Allis Chalmers FD3 | 25 hp | 3,150 lb | — | Compare → |
| Apollo 254 | 25 hp | — | — | Compare → |
| Belarus 254 | 25 hp | — | — | Compare → |
Explore
Shibaura siblings
Explore
Similar-spec models
Gallery

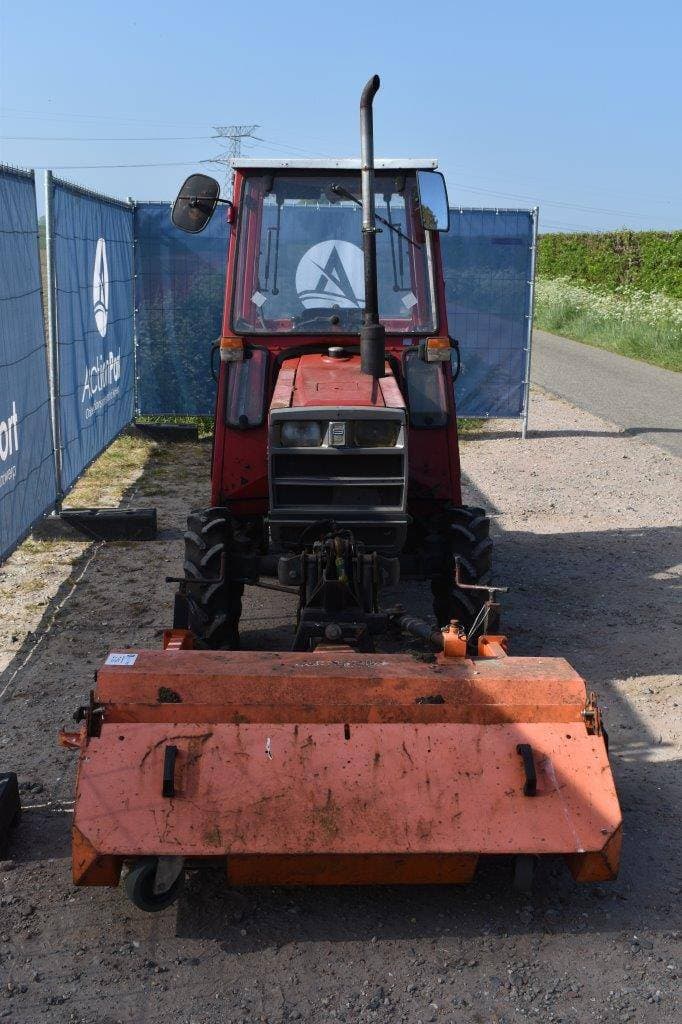

Shibaura SP2540 photos
FAQ
Common questions
How powerful is the Shibaura SP2540?
The Shibaura SP2540 has an engine power output of 24.7 hp. It is powered by a 3-cylinder engine displacing 81.2 ci.
What three-point hitch category does the Shibaura SP2540 use?
The Shibaura SP2540 has a Category I three-point hitch.
What is the working weight of the Shibaura SP2540?
The operating weight of the Shibaura SP2540 is approximately 2,039 lb.
What type of transmission does the Shibaura SP2540 have?
The Shibaura SP2540 uses a Synchromesh transmission offering 12 forward gears.
What routine service does the Shibaura SP2540 need?
Regular maintenance for the Shibaura SP2540 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
