Snapper SR1433
The Snapper SR1433 is a compact lawn and garden tractor built from 1997 to 1998. It's designed for homeowners who need a reliable machine for yard work. This tractor has a 14 hp gasoline engine with one cylinder, which is cooled by air. The engine runs at a very high speed of 3600 rpm, making it responsive and efficient for its size. The SR1433 is a 2-wheel drive tractor with manual steering, making it easy to maneuver in tight spaces. It has a friction disc transmission with 5 forward gears and 1 reverse gear, allowing for good speed control. The tractor weighs 364 lb, which is quite light compared to other tractors. It has lawn/turf tires on both front and rear, perfect for use on grass without damaging it. The tractor also features an independent PTO with a manual clutch, an open operator station, and electric start for convenience.

Key specifications
- Category
- Lawn and Garden
- Engine power
- 14hp
- Operating weight
- 364 lb
- Transmission
- Friction disc
Category comparison
SR1433 compared with its category
vs. Lawn and Garden medianDistribution
Engine Power (hp)
All recorded Lawn and Garden tractors
This model
The SR1433 ranks at the 26th percentile for engine power among recorded lawn and garden tractors.
Overview
About the Snapper SR1433
The Snapper SR1433 is a compact lawn and garden tractor built from 1997 to 1998. It's designed for homeowners who need a reliable machine for yard work. This tractor has a 14 hp gasoline engine with one cylinder, which is cooled by air. The engine runs at a very high speed of 3600 rpm, making it responsive and efficient for its size. The SR1433 is a 2-wheel drive tractor with manual steering, making it easy to maneuver in tight spaces. It has a friction disc transmission with 5 forward gears and 1 reverse gear, allowing for good speed control. The tractor weighs 364 lb, which is quite light compared to other tractors. It has lawn/turf tires on both front and rear, perfect for use on grass without damaging it. The tractor also features an independent PTO with a manual clutch, an open operator station, and electric start for convenience.
Full specifications
Recorded specifications
General
| Manufacturer | Snapper |
|---|---|
| Model | SR1433 |
| Category | Lawn and Garden tractor |
| Type | 4x2 2WD |
| Years built | 1997–1998 |
| Operating weight | 364lb(165.1 kg) |
Engine
| Power | 14hp(10.44 kW) |
|---|---|
| Cylinders | 1 |
| Bore | 3.43in(87.12 mm) |
Transmission
| Type | Friction disc |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Drum |
| Cab | Open |
Power take-off
| Rear PTO | Independent with manual clutch |
|---|
Dimensions
| Operating weight | 364lb(165.1 kg) |
|---|
Closest alternatives
SR1433 compared with the nearest models by horsepower
By engine horsepower, the nearest lawn and garden models to the SR1433 are the Cub Cadet AGS 2140 and the Cub Cadet HDS 2145. The Cub Cadet AGS 2140 matches it on rated power. The Cub Cadet HDS 2145 matches it on rated power.
| Spec | Snapper SR1433 | Cub Cadet AGS 2140 | Cub Cadet HDS 2145 |
|---|---|---|---|
| Engine power | 14 hp10.4 kW | 14 hp10.4 kW | 14 hp10.4 kW |
| Displacement | - | 23.7 ci0.39 L | 23.7 ci0.39 L |
| Cylinders | 1 | 1 | 1 |
| Transmission | Friction disc | Shaft-driven gear type | Shaft-driven hydrostatic |
| Drive | 2WD | 2WD | 2WD |
| Years built | 1997-1998 | 1994-1995 | 1994-1995 |
Calculators
Calculators for the SR1433
PTO power
About 12 to 13 PTO hp
Estimated from the 14 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 14 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
30 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
14 hp is 10.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Snapper SR1433
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Snapper SR1433Amazon
For the 1-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Snapper SR1433Amazon
For the 1-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Snapper SR1433Amazon
For the 1-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Snapper SR1433Amazon
For the 1-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Snapper SR1433 service and repair manualseManualOnline
Digital manuals. Built 1997 to 1998. Check the serial number range on the listing.
- Snapper SR1433 operator's manualAmazon
Printed and reprint manuals. Built 1997 to 1998. Check the serial number range on the listing.
- Snapper SR1433 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
SR1433 vs. Lawn and Garden median
Snapper SR1433 compared with other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 14 hp | 18 hp | -22% | 26th |
| Cylinders | 1 | 2 | -50% | 17th |
| Forward Gears | 5 | 6 | -17% | 38th |
| Operating Weight | 364 lb | 738 lb | -51% | 2nd |
Medians and percentiles are calculated from the lawn and garden tractors in the database that have a recorded value for each specification (sample size 152–380 models).
Same manufacturer
Other Snapper models
Other manufacturers
Models with similar horsepower
Gallery

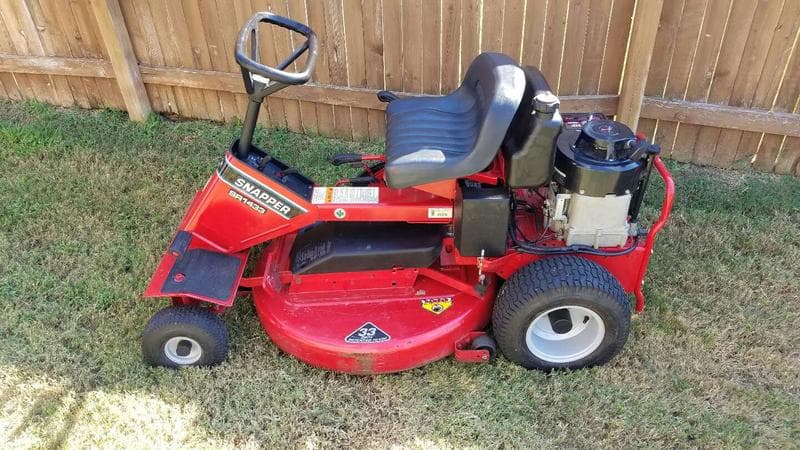

Snapper SR1433 photos




FAQ
Frequently asked questions
What years was the Snapper SR1433 manufactured?
Production of the Snapper SR1433 ran from 1997 through 1998.
What type of transmission does the Snapper SR1433 have?
The Snapper SR1433 uses a Friction disc transmission offering 5 forward gears.
How powerful is the Snapper SR1433?
The Snapper SR1433 has an engine power output of 14 hp. It is powered by a 1-cylinder engine.
What is the working weight of the Snapper SR1433?
The operating weight of the Snapper SR1433 is approximately 364 lb.
What routine service does the Snapper SR1433 need?
Regular maintenance for the Snapper SR1433 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
