UtilityPerformance profile
Steiger 9130
The Steiger 9130 is a powerful utility tractor built for tough farm work. It has a strong 4-wheel drive system and can turn easily with its special steering. The tractor has a big 6-cylinder diesel engine that makes 220 horsepower. This engine is very powerful compared to most other tractors. The Steiger 9130 is a large tractor, measuring over 20 feet long and 10 feet wide. It weighs a hefty 17,600 pounds, which is more than most tractors. This weight helps it pull heavy loads. The tractor has big 38-inch tires on both the front and back, perfect for farm fields. It also has a strong hitch on the back for attaching tools. This tractor is built to work hard all day. It has a good cooling system that holds 38 quarts of coolant to keep the engine running smoothly. The transmission has 12 forward gears and 2 reverse gears, giving the driver lots of options for different jobs. With its size and power, the Steiger 9130 is ready to handle big farming tasks with ease.
ManufacturerSteigerPower220 hpEngine6-cylTransFull power shift
Quick specs
- Category
- Utility
- Engine Power Output
- 220hp
- Operating Weight
- 17,600 lb
- Transmission
- Full power shift
At a glance
How the 9130 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
220 hp · 95th
This model
9
Median 55 hp
177
220
This modelUtility tractorsMediann = 5,383
The 9130 ranks at the 95th percentile for engine power among recorded utility tractors.
Overview
About the Steiger 9130
The Steiger 9130 is a powerful utility tractor built for tough farm work. It has a strong 4-wheel drive system and can turn easily with its special steering. The tractor has a big 6-cylinder diesel engine that makes 220 horsepower. This engine is very powerful compared to most other tractors. The Steiger 9130 is a large tractor, measuring over 20 feet long and 10 feet wide. It weighs a hefty 17,600 pounds, which is more than most tractors. This weight helps it pull heavy loads. The tractor has big 38-inch tires on both the front and back, perfect for farm fields. It also has a strong hitch on the back for attaching tools. This tractor is built to work hard all day. It has a good cooling system that holds 38 quarts of coolant to keep the engine running smoothly. The transmission has 12 forward gears and 2 reverse gears, giving the driver lots of options for different jobs. With its size and power, the Steiger 9130 is ready to handle big farming tasks with ease.
Full specifications
Every recorded spec
General
| Manufacturer | Steiger |
|---|---|
| Model | 9130 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 17,600lb |
Engine
| Make | CDC |
|---|---|
| Model | 6CTA |
| Power | 220hp |
| Cylinders | 6 |
| Displacement | 505ci |
| Bore | 4.49in |
| Stroke | 5.32in |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 12 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | Closed center |
|---|
Dimensions
| Length | 241.6in |
|---|---|
| Width | 119.5in |
| Height | 129.6in |
| Operating weight | 17,600lb |
Capacities
| Cooling system | 9.5gal |
|---|
Head to head
9130 vs. Utility median
How the Steiger 9130 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 220 hp | 55 hp | +300% | 95th |
| Engine Displacement | 505 ci | 183 ci | +176% | 94th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 17,600 lb | 5,303 lb | +232% | 94th |
| Length | 242 in | 137 in | +77% | 96th |
| Width | 120 in | 66 in | +81% | 99th |
| Height | 130 in | 94.1 in | +38% | 96th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Steiger tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Steiger Bearcat III ST-220 | 220 hp | 30,000 lb | — | Compare → |
| Steiger Wildcat 1000 | 220 hp | 17,500 lb | — | Compare → |
| Steiger Bearcat III PT-225 | 225 hp | 28,295 lb | — | Compare → |
| Steiger Bearcat IV CM-225 | 225 hp | 24,711 lb | — | Compare → |
| Steiger Bearcat IV KM-225 | 225 hp | 33,830 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 4W-220 | 220 hp | 21,475 lb | 1982–1984 | Compare → |
| Belarus MTZ-220 | 220 hp | — | — | Compare → |
| CaseIH 9130 | 220 hp | 17,600 lb | — | Compare → |
| Allis Chalmers 440 | 218 hp | 20,230 lb | 1973–1977 | Compare → |
| CaseIH 2594 | 217 hp | 16,220 lb | 1984–1988 | Compare → |
Explore
Steiger siblings
Explore
Similar-spec models
Gallery

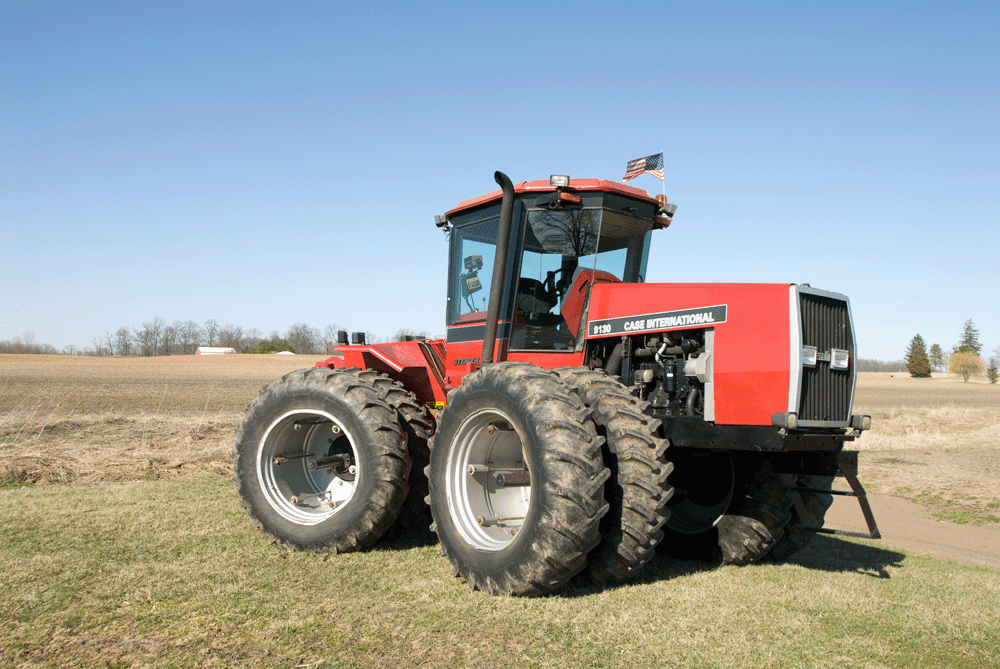

Steiger 9130 photos
FAQ
Common questions
How powerful is the Steiger 9130?
The Steiger 9130 has an engine power output of 220 hp. It is powered by a 6-cylinder engine displacing 505 ci.
What type of transmission does the Steiger 9130 have?
The Steiger 9130 uses a Full power shift transmission offering 12 forward gears.
What type of hydraulic system does the Steiger 9130 use?
Hydraulics on the Steiger 9130 are Closed center.
What hitch category is the Steiger 9130?
The Steiger 9130 uses a Category 3 hitch.
What is the working weight of the Steiger 9130?
The operating weight of the Steiger 9130 is approximately 17,600 lb.
What routine service does the Steiger 9130 need?
Regular maintenance for the Steiger 9130 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
