Steiger Panther III PTA-325
The Steiger Panther III PTA-325 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated chassis, which means it can turn easily in tight spaces. The tractor is powered by a Caterpillar 3406 diesel engine with 6 cylinders. This engine is very strong, producing 325 horsepower, which is more powerful than most other tractors. It also has a very large engine size of 893 cubic inches, making it one of the biggest in its class. This tractor is big and heavy, weighing 29,605 pounds. It has a 10-speed transmission for moving forward and 2 speeds for going backward. The Panther III uses large 34-inch agricultural tires on both the front and back. It has a Category III hitch on the rear for attaching farm equipment. The tractor is quite large, measuring 264.5 inches long, 52 inches wide, and 155.7 inches tall. It has an open center hydraulic system and uses an electric starter to get the engine going.
ManufacturerSteigerPower325 hpEngine6-cylTransPower Shift with Torque Converter
Quick specs
- Category
- Utility
- Engine Power Output
- 325hp
- Operating Weight
- 29,605 lb
- Transmission
- Power Shift with Torque Converter
At a glance
How the Panther III PTA-325 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
325 hp · 97th
This model
9
Median 55 hp
177
325
This modelUtility tractorsMediann = 5,383
The Panther III PTA-325 ranks at the 97th percentile for engine power among recorded utility tractors.
Overview
About the Steiger Panther III PTA-325
The Steiger Panther III PTA-325 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated chassis, which means it can turn easily in tight spaces. The tractor is powered by a Caterpillar 3406 diesel engine with 6 cylinders. This engine is very strong, producing 325 horsepower, which is more powerful than most other tractors. It also has a very large engine size of 893 cubic inches, making it one of the biggest in its class. This tractor is big and heavy, weighing 29,605 pounds. It has a 10-speed transmission for moving forward and 2 speeds for going backward. The Panther III uses large 34-inch agricultural tires on both the front and back. It has a Category III hitch on the rear for attaching farm equipment. The tractor is quite large, measuring 264.5 inches long, 52 inches wide, and 155.7 inches tall. It has an open center hydraulic system and uses an electric starter to get the engine going.
Full specifications
Every recorded spec
General
| Manufacturer | Steiger |
|---|---|
| Model | Panther III PTA-325 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 29,605lb |
Engine
| Make | Caterpillar |
|---|---|
| Model | 3406 |
| Power | 325hp |
| Cylinders | 6 |
| Displacement | 893ci |
| Bore | 5.4in |
| Stroke | 6.5in |
Transmission
| Type | Power Shift with Torque Converter |
|---|---|
| Forward gears | 10 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Articulated Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 264.5in |
|---|---|
| Width | 52in |
| Height | 155.7in |
| Operating weight | 29,605lb |
Capacities
| Cooling system | 13gal |
|---|
Head to head
Panther III PTA-325 vs. Utility median
How the Steiger Panther III PTA-325 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 325 hp | 55 hp | +491% | 97th |
| Engine Displacement | 893 ci | 183 ci | +388% | 98th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 10 | 12 | -17% | 39th |
| Operating Weight | 29,605 lb | 5,303 lb | +458% | 97th |
| Length | 265 in | 137 in | +94% | 97th |
| Width | 52 in | 66 in | -21% | 20th |
| Height | 156 in | 94.1 in | +65% | 99th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Steiger tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Steiger CU-325 | 325 hp | — | — | Compare → |
| Steiger Panther III ST-325 | 325 hp | 26,900 lb | — | Compare → |
| Steiger Panther IV CM-325 | 325 hp | 26,903 lb | — | Compare → |
| Steiger Panther IV CS-325 | 325 hp | — | — | Compare → |
| Steiger Panther IV KM-325 | 325 hp | 26,653 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Big Bud HN320 | 320 hp | 36,000 lb | — | Compare → |
| AGCO DT275B | 316.6 hp | 25,840 lb | 2009–2010 | Compare → |
| CaseIH 9170 | 335 hp | — | — | Compare → |
| CaseIH 9270 | 335 hp | 34,045 lb | — | Compare → |
| CaseIH 9350 | 310 hp | 28,720 lb | — | Compare → |
Explore
Steiger siblings
Explore
Similar-spec models
Gallery

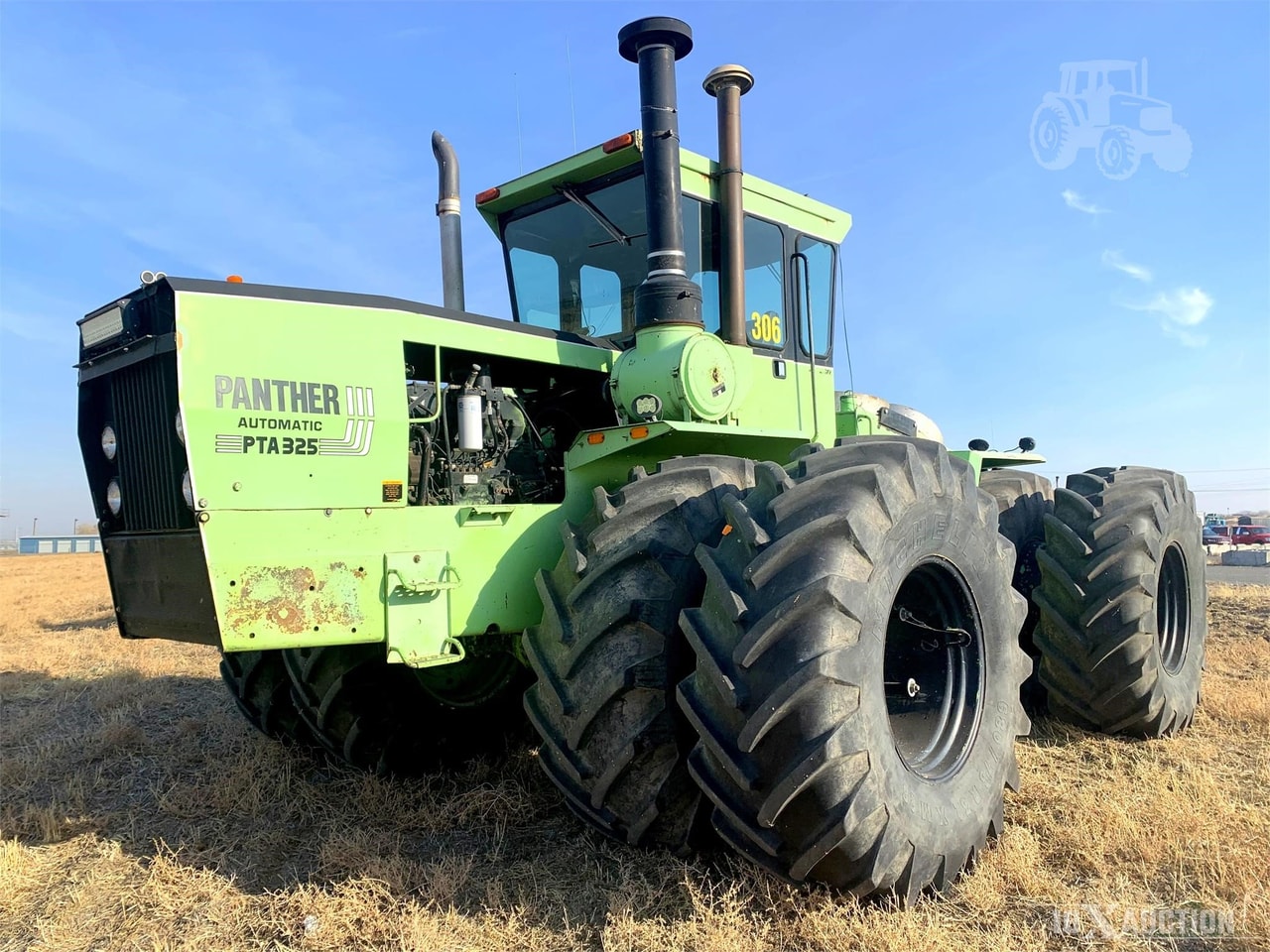

Steiger Panther III PTA-325 photos
FAQ
Common questions
What is the engine power output of the Steiger Panther III PTA-325?
Rated engine output for the Steiger Panther III PTA-325 is 325 hp, delivered by a 6-cylinder engine. The engine displaces 893 ci.
Which transmission does the Steiger Panther III PTA-325 use?
The Steiger Panther III PTA-325 is equipped with a Power Shift with Torque Converter transmission with 10 forward gears.
What type of hydraulic system does the Steiger Panther III PTA-325 use?
Hydraulics on the Steiger Panther III PTA-325 are Open Center.
What hitch category is the Steiger Panther III PTA-325?
The Steiger Panther III PTA-325 uses a Category III hitch.
What is the operating weight of the Steiger Panther III PTA-325?
In working trim, the Steiger Panther III PTA-325 comes in at roughly 29,605 lb.
How do I maintain a Steiger Panther III PTA-325?
Routine service for the Steiger Panther III PTA-325 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
