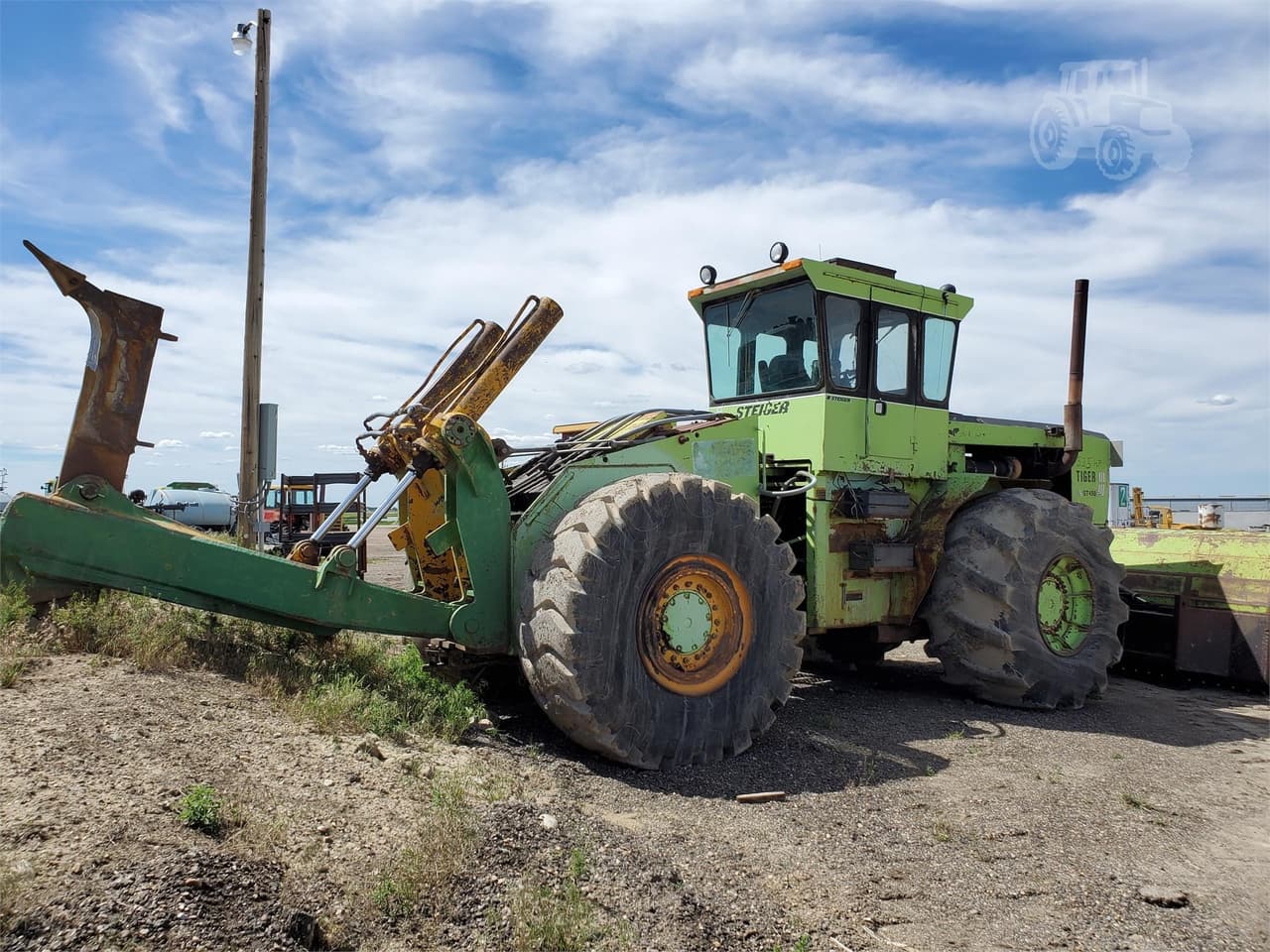

Steiger Tiger III ST-450

The Steiger Tiger III ST-450 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated chassis and four-wheel drive, making it great for working in rough fields. The tractor uses a Cummins KTA-1150 engine, which is very strong with 470 horsepower. This engine is much more powerful than most other tractors. The Tiger III is big and heavy, weighing 45,360 pounds. It has a full power shift transmission with 6 forward gears and 1 reverse gear. The tractor uses an open center hydraulic system and has a Category 3 hitch for attaching tools. It's cooled by liquid and uses diesel fuel. The engine has 6 cylinders in a line and is turbocharged for extra power. With its size and strength, this tractor can handle large farms and heavy work easily.

ManufacturerSteigerPower470 hp(350.5 kW)Class300+ HP tractors →Engine6-cylinderTransmissionfull power shift with torque converter
Steiger Tiger III ST-450

Key specifications

Category
Utility
Engine power
470hp
Operating weight
45,360 lb
Transmission
full power shift with torque converter
Compare this model

Category comparison

Tiger III ST-450 compared with its category

vs. Utility median

Distribution

Engine Power (hp)

All recorded Utility tractors

470 hp · 99th

This model

9
Median 55 hp
177
470
This modelUtility tractorsMediann = 5,383

The Tiger III ST-450 ranks at the 99th percentile for engine power among recorded utility tractors.

Overview

About the Steiger Tiger III ST-450

The Steiger Tiger III ST-450 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated chassis and four-wheel drive, making it great for working in rough fields. The tractor uses a Cummins KTA-1150 engine, which is very strong with 470 horsepower. This engine is much more powerful than most other tractors. The Tiger III is big and heavy, weighing 45,360 pounds. It has a full power shift transmission with 6 forward gears and 1 reverse gear. The tractor uses an open center hydraulic system and has a Category 3 hitch for attaching tools. It's cooled by liquid and uses diesel fuel. The engine has 6 cylinders in a line and is turbocharged for extra power. With its size and strength, this tractor can handle large farms and heavy work easily.

Full specifications

Recorded specifications

General

ManufacturerSteiger
ModelTiger III ST-450
CategoryUtility tractor
Type4x4 articulated 4WD
Operating weight45,360lb(20,570 kg)

Engine

MakeCummins
ModelKTA-1150
Power470hp(350.5 kW)
Cylinders6
Displacement1,150ci(18.85 L)
Bore6.25in(158.8 mm)
Stroke6.25in(158.8 mm)

Transmission

Typefull power shift with torque converter
Forward gears6
Reverse gears1

Chassis & drive

Chassis4x4 articulated 4WD
Drive4WD
Steeringarticulated power

Hydraulics

Typeopen center

Dimensions

Length289in(7,341 mm)
Width47in(1,194 mm)
Height161in(4,089 mm)
Operating weight45,360lb(20,570 kg)

Capacities

Cooling system28gal(106 L)

Closest alternatives

Tiger III ST-450 compared with the nearest models by horsepower

By engine horsepower, the nearest utility models to the Tiger III ST-450 are the Steiger Tiger III ST-470 and the New Holland T9.530. The Steiger Tiger III ST-470 matches it on rated power at almost the same operating weight. The New Holland T9.530 matches it on rated power and weighs 9,310 lb less, carrying 77 lb per horsepower against 97 lb. Of the 3 models, the Tiger III ST-450 has the highest weight per horsepower at 97 lb per hp.

Steiger Tiger III ST-450 compared with Steiger Tiger III ST-470 and New Holland T9.530
SpecSteiger Tiger III ST-450Steiger Tiger III ST-470New Holland T9.530
Engine power470 hp350.5 kW470 hp350.5 kW470 hp350.5 kW
Operating weight45,360 lb20,575 kg45,360 lb20,575 kg36,048 lb16,351 kg
Weight per hp97 lb/hp59 kg/kW97 lb/hp59 kg/kW77 lb/hp47 kg/kW
Displacement1,150 ci18.85 L1,150 ci18.85 L787 ci12.9 L
Cylinders666
Transmissionfull power shift with torque converterFull power shift with torque converterFull power shift
Drive4WD4WD4WD

Calculators

Calculators for the Tiger III ST-450

Parts and manuals

Parts and manuals for the Steiger Tiger III ST-450

Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.

Filters

Manuals

Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure

Category medians

Tiger III ST-450 vs. Utility median

Steiger Tiger III ST-450 compared with other Utility tractors

SpecThis modelUtility medianDifferencePercentile
Engine Power470 hp55 hp+755%99th
Engine Displacement1,150 ci183 ci+528%99th
Cylinders64+50%93rd
Forward Gears612-50%11th
Operating Weight45,360 lb5,303 lb+755%99th
Length289 in137 in+112%99th
Width47 in66 in-29%13th
Height161 in94.1 in+71%99th

Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).

Same manufacturer

Other Steiger models

All Steiger models →

Other manufacturers

Models with similar horsepower

FAQ

Frequently asked questions

What is the engine power output of the Steiger Tiger III ST-450?

Rated engine output for the Steiger Tiger III ST-450 is 470 hp, delivered by a 6-cylinder engine. The engine displaces 1,150 ci.

What hitch category is the Steiger Tiger III ST-450?

The Steiger Tiger III ST-450 uses a Category Category 3 hitch.

What is the operating weight of the Steiger Tiger III ST-450?

The Steiger Tiger III ST-450 has an operating weight of about 45,360 lb.

Which transmission does the Steiger Tiger III ST-450 use?

The Steiger Tiger III ST-450 is equipped with a full power shift with torque converter transmission with 6 forward gears.

What type of hydraulic system does the Steiger Tiger III ST-450 use?

Hydraulics on the Steiger Tiger III ST-450 are open center.

How do I maintain a Steiger Tiger III ST-450?

Routine service for the Steiger Tiger III ST-450 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
