Sub-Compact
Steyr 80
The Steyr 80 is a compact diesel tractor designed for farm work. It has a single-cylinder engine made by Steyr, called the WD 113. This engine is liquid-cooled and naturally aspirated, meaning it doesn't use a turbocharger. The engine has a displacement of 81.2 cubic inches, which is on the smaller side for tractors. It runs at 1500 RPM when working hard. This tractor uses a gear transmission with 4 forward gears and 1 reverse gear. It's not very big, measuring 113.4 inches long, 57.9 inches wide, and 66.1 inches tall. The Steyr 80 weighs 2646 pounds, making it a lightweight option for farmers. It has agricultural tires on both the front and back, with the front tires being 15 inches in diameter. The tractor has a wheelbase of 65 inches, which helps with stability. It starts up using an electric starter and runs on a 12-volt electrical system. The Steyr 80 is equipped with a category III hitch, allowing it to work with various farm implements.
ManufacturerSteyrEngine1-cylTransgear
Quick specs
- Category
- Sub-Compact
- Operating Weight
- 2,646 lb
- Transmission
- gear
Overview
About the Steyr 80
The Steyr 80 is a compact diesel tractor designed for farm work. It has a single-cylinder engine made by Steyr, called the WD 113. This engine is liquid-cooled and naturally aspirated, meaning it doesn't use a turbocharger. The engine has a displacement of 81.2 cubic inches, which is on the smaller side for tractors. It runs at 1500 RPM when working hard. This tractor uses a gear transmission with 4 forward gears and 1 reverse gear. It's not very big, measuring 113.4 inches long, 57.9 inches wide, and 66.1 inches tall. The Steyr 80 weighs 2646 pounds, making it a lightweight option for farmers. It has agricultural tires on both the front and back, with the front tires being 15 inches in diameter. The tractor has a wheelbase of 65 inches, which helps with stability. It starts up using an electric starter and runs on a 12-volt electrical system. The Steyr 80 is equipped with a category III hitch, allowing it to work with various farm implements.
Full specifications
Every recorded spec
General
| Manufacturer | Steyr |
|---|---|
| Model | 80 |
| Category | Sub-Compact tractor |
| Operating weight | 2,646lb |
Engine
| Make | Steyr |
|---|---|
| Model | WD 113 |
| Cylinders | 1 |
| Displacement | 81.2ci |
| Bore | 4.33in |
| Stroke | 5.51in |
Transmission
| Type | gear |
|---|---|
| Forward gears | 4 |
| Reverse gears | 1 |
Dimensions
| Length | 113.4in |
|---|---|
| Width | 57.9in |
| Height | 66.1in |
| Operating weight | 2,646lb |
Head to head
80 vs. Sub-Compact median
How the Steyr 80 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 81.2 ci | 91.4 ci | -11% | 42nd |
| Cylinders | 1 | 3 | -67% | 2nd |
| Forward Gears | 4 | 9 | -56% | 2nd |
| Operating Weight | 2,646 lb | 2,700 lb | -2% | 49th |
| Length | 113 in | 113 in | at median | 50th |
| Width | 57.9 in | 50.7 in | +14% | 68th |
| Height | 66.1 in | 78.4 in | -16% | 25th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–802 models).
Compare to tractors with similar specs
Commonly compared Steyr tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Steyr 180 | — | 3,968 lb | — | Compare → |
| Steyr 658 | 55 hp | 5,854 lb | — | Compare → |
| Steyr 8045 | 42 hp | 4,542 lb | — | Compare → |
| Steyr 8055 | 48 hp | 5,358 lb | — | Compare → |
| Steyr M 952 | 52 hp | 5,954 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
Steyr siblings
Explore
Similar-spec models

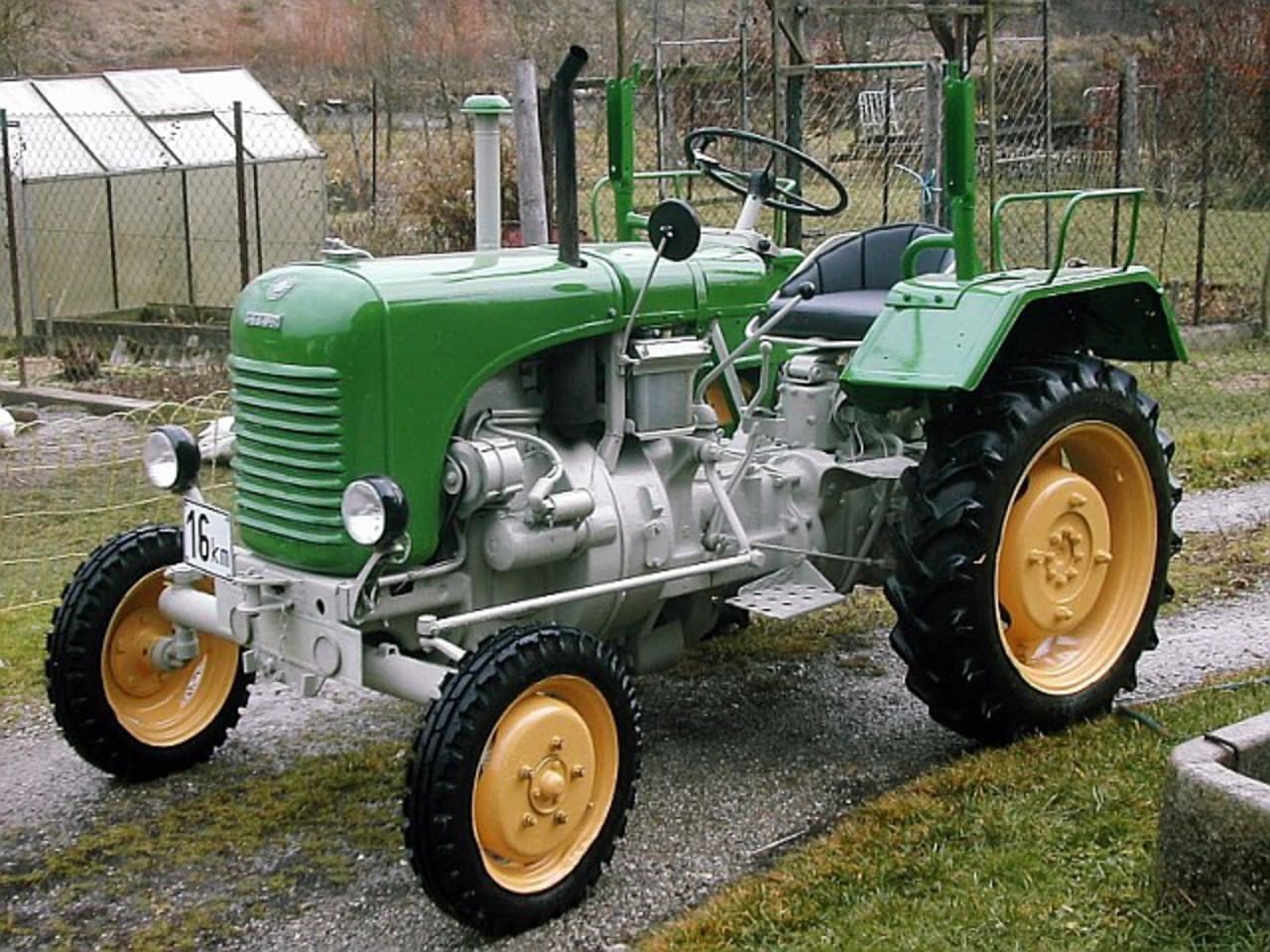

Gallery
Steyr 80 photos
FAQ
Common questions
What engine configuration does the Steyr 80 use?
The Steyr 80 is equipped with a 1-cylinder engine displacing 81.2 ci.
How much does the Steyr 80 weigh?
The Steyr 80 weighs about 2,646 lb in operating condition.
What transmission is in the Steyr 80?
Transmission on the Steyr 80 is gear, with 4 forward speeds.
What three-point hitch category does the Steyr 80 use?
The Steyr 80 has a Category III three-point hitch.
What maintenance does the Steyr 80 require?
Like any tractor, the Steyr 80 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
