Same brandUtility tractorsSpec sheet
Steyr 9085 MT
The Steyr 9085 MT is a powerful and versatile tractor designed for various farming tasks. It features a turbocharged, intercooled 4-cylinder engine with a displacement of 268.4 ci. This engine delivers a strong 85.5 hp at 2300 rpm, making it suitable for both light and medium-duty farm work. The tractor comes equipped with a STEYR Power-2 transmission, offering 16 forward and 8 reverse gears. This gives farmers plenty of options for different speeds and tasks. The 9085 MT has a compact size, measuring 166.8 inches long, 86.4 inches wide, and 108 inches tall. It rides on 14.9 R24 front tires and larger 18.4 R34 rear tires, providing good traction and stability in various field conditions. Additional features include a pump flow capacity of 13.3 gal/min and a tight turning radius of 15.8 ft, making it easy to maneuver in tight spaces.
ManufacturerSteyrPower85.5 hp(63.8 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionSTEYR Power-2
Key specifications
- Category
- Utility
- Engine power
- 86hp
- Transmission
- STEYR Power-2
Category comparison
9085 MT compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
85.5 hp · 75th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 9085 MT ranks at the 75th percentile for engine power among recorded utility tractors.
Overview
About the Steyr 9085 MT
The Steyr 9085 MT is a powerful and versatile tractor designed for various farming tasks. It features a turbocharged, intercooled 4-cylinder engine with a displacement of 268.4 ci. This engine delivers a strong 85.5 hp at 2300 rpm, making it suitable for both light and medium-duty farm work. The tractor comes equipped with a STEYR Power-2 transmission, offering 16 forward and 8 reverse gears. This gives farmers plenty of options for different speeds and tasks. The 9085 MT has a compact size, measuring 166.8 inches long, 86.4 inches wide, and 108 inches tall. It rides on 14.9 R24 front tires and larger 18.4 R34 rear tires, providing good traction and stability in various field conditions. Additional features include a pump flow capacity of 13.3 gal/min and a tight turning radius of 15.8 ft, making it easy to maneuver in tight spaces.
Full specifications
Recorded specifications
General
| Manufacturer | Steyr |
|---|---|
| Model | 9085 MT |
| Category | Utility tractor |
Engine
| Power | 85.5hp(63.76 kW) |
|---|---|
| Cylinders | 4 |
| Displacement | 268.4ci(4.4 L) |
Transmission
| Type | STEYR Power-2 |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Dimensions
| Length | 166.8in(4,237 mm) |
|---|---|
| Width | 86.4in(2,195 mm) |
| Height | 108in(2,743 mm) |
Tires
| Front | 14.9 R24ConvertShop size |
|---|---|
| Rear | 18.4 R34ConvertShop size |
Closest alternatives
9085 MT compared with the nearest models by horsepower
Among utility tractors, the Steyr 9085MT and the Kubota M5-091HDRC are closest to the Steyr 9085 MT in rated horsepower. The Steyr 9085MT matches it on rated power. The Kubota M5-091HDRC matches it on rated power.
| Spec | Steyr 9085 MT | Steyr 9085MT | Kubota M5-091HDRC |
|---|---|---|---|
| Engine power | 85.5 hp63.8 kW | 85.5 hp63.8 kW | 85.5 hp63.8 kW |
| Operating weight | - | 9,215 lb4,180 kg | 6,151 lb2,790 kg |
| Weight per hp | - | 108 lb/hp66 kg/kW | 72 lb/hp44 kg/kW |
| Displacement | 268.4 ci4.4 L | 268.3 ci4.4 L | 230 ci3.77 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | STEYR Power-2 | - | Fully synchronized |
Calculators
Calculators for the 9085 MT
PTO power
About 71 to 77 PTO hp
Estimated from the 85.5 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 85.5 hp tractor can run
Maximum size is about a 10 ft rotary cutter or a 8.5 ft tiller. The calculator also sizes discs, plows and balers.
Units
85.5 hp is 63.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 18.4 R34 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Parts and manuals
Parts and manuals for the Steyr 9085 MT
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Steyr 9085 MTAmazon
For the 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Steyr 9085 MTAmazon
For the 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Steyr 9085 MTAmazon
For the 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Steyr 9085 MTAmazon
For the 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Steyr 9085 MT service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Steyr 9085 MT operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Steyr 9085 MT service manualAmazon
Shop and repair manuals for this model.
Tires
- 14.9 R24 tiresAmazon
Listed front tire size for the Steyr 9085 MT.
- 18.4 R34 tiresAmazon
Listed rear tire size for the Steyr 9085 MT.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
9085 MT vs. Utility median
Steyr 9085 MT compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 85.5 hp | 55 hp | +55% | 75th |
| Engine Displacement | 268 ci | 183 ci | +47% | 76th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Length | 167 in | 137 in | +22% | 84th |
| Width | 86.4 in | 66 in | +31% | 90th |
| Height | 108 in | 94.1 in | +15% | 84th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Steyr models
Other manufacturers
Models with similar horsepower
Gallery

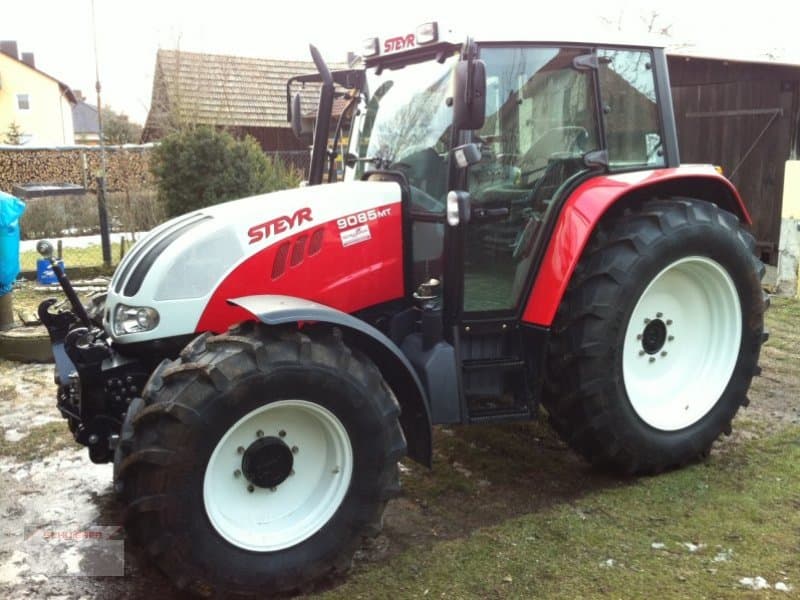

Steyr 9085 MT photos
FAQ
Frequently asked questions
How much horsepower does the Steyr 9085 MT have?
The Steyr 9085 MT produces 85.5 hp from its 4-cylinder engine. Engine displacement is 268.4 ci.
What transmission is in the Steyr 9085 MT?
Transmission on the Steyr 9085 MT is STEYR Power-2, with 16 forward speeds.
What are the factory tire sizes for the Steyr 9085 MT?
The Steyr 9085 MT comes with 14.9 R24 front tires and 18.4 R34 rear tires.
What maintenance does the Steyr 9085 MT require?
The Steyr 9085 MT needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
