Similar specSummit Tractors TX25H
The Summit Tractors TX25H is a compact utility tractor built for various farm tasks. It has a 4-wheel drive system and power steering, making it easy to handle in different conditions. The tractor uses a hydrostatic transmission, which allows for smooth speed changes without shifting gears. Under the hood, the TX25H has a Mitsubishi S3L2 diesel engine. This 3-cylinder engine is liquid-cooled and produces 24.7 horsepower. While its power output is below average compared to other tractors, it's suitable for light to medium-duty work. The engine meets Tier IV emissions standards, showing Summit Tractors' commitment to reducing environmental impact. The tractor's size is compact, measuring 113.6 inches long, 54 inches wide, and 92.1 inches tall. It weighs 3,406 pounds, which is on the lighter side for tractors, making it less likely to compact soil.

Key specifications
- Category
- Utility
- Engine power
- 25hp
- Operating weight
- 3,406 lb
- Transmission
- Hydrostatic
Category comparison
TX25H compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The TX25H ranks at the 15th percentile for engine power among recorded utility tractors.
Overview
About the Summit Tractors TX25H
The Summit Tractors TX25H is a compact utility tractor built for various farm tasks. It has a 4-wheel drive system and power steering, making it easy to handle in different conditions. The tractor uses a hydrostatic transmission, which allows for smooth speed changes without shifting gears. Under the hood, the TX25H has a Mitsubishi S3L2 diesel engine. This 3-cylinder engine is liquid-cooled and produces 24.7 horsepower. While its power output is below average compared to other tractors, it's suitable for light to medium-duty work. The engine meets Tier IV emissions standards, showing Summit Tractors' commitment to reducing environmental impact. The tractor's size is compact, measuring 113.6 inches long, 54 inches wide, and 92.1 inches tall. It weighs 3,406 pounds, which is on the lighter side for tractors, making it less likely to compact soil.
Full specifications
Recorded specifications
General
| Manufacturer | Summit Tractors |
|---|---|
| Model | TX25H |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,406lb(1,545 kg) |
Engine
| Make | Mitsubishi |
|---|---|
| Model | S3L2 |
| Power | 24.7hp(18.42 kW) |
| Cylinders | 3 |
| Displacement | 80.4ci(1.32 L) |
| Bore | 3.07in(77.98 mm) |
| Stroke | 3.62in(91.95 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 113.6in(2,885 mm) |
|---|---|
| Width | 54in(1,372 mm) |
| Height | 92.1in(2,339 mm) |
| Operating weight | 3,406lb(1,545 kg) |
Closest alternatives
TX25H compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the TX25H are the Kubota FT25 and the Kubota KT255. The Kubota FT25 matches it on rated power and weighs 1,390 lb less, carrying 82 lb per horsepower against 138 lb. The Kubota KT255 matches it on rated power and weighs 1,060 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the TX25H has the highest weight per horsepower at 138 lb per hp.
| Spec | Summit Tractors TX25H | Kubota FT25 | Kubota KT255 |
|---|---|---|---|
| Engine power | 24.7 hp18.4 kW | 24.7 hp18.4 kW | 24.7 hp18.4 kW |
| Operating weight | 3,406 lb1,545 kg | 2,017 lb915 kg | 2,348 lb1,065 kg |
| Weight per hp | 138 lb/hp84 kg/kW | 82 lb/hp50 kg/kW | 95 lb/hp58 kg/kW |
| Displacement | 80.4 ci1.32 L | 91.5 ci1.5 L | 91.5 ci1.5 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Hydrostatic | Power shift | Power shift |
| Drive | 4WD | 4WD | 4WD |
| Years built | - | 2012-2015 | 2009-2011 |
Calculators
Calculators for the TX25H
PTO power
About 21 to 22 PTO hp
Estimated from the 24.7 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 24.7 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
160 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
24.7 hp is 18.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Summit Tractors TX25H
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Mitsubishi S3L2Amazon
Fits the Mitsubishi S3L2 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Mitsubishi S3L2Amazon
Fits the Mitsubishi S3L2 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Mitsubishi S3L2Amazon
Fits the Mitsubishi S3L2 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Mitsubishi S3L2Amazon
Fits the Mitsubishi S3L2 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Summit Tractors TX25H service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Summit Tractors TX25H operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Summit Tractors TX25H service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
TX25H vs. Utility median
Summit Tractors TX25H compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 24.7 hp | 55 hp | -55% | 15th |
| Engine Displacement | 80.4 ci | 183 ci | -56% | 12th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Operating Weight | 3,406 lb | 5,303 lb | -36% | 28th |
| Length | 114 in | 137 in | -17% | 19th |
| Width | 54 in | 66 in | -18% | 25th |
| Height | 92.1 in | 94.1 in | -2% | 46th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Other manufacturers
Models with similar horsepower
Gallery

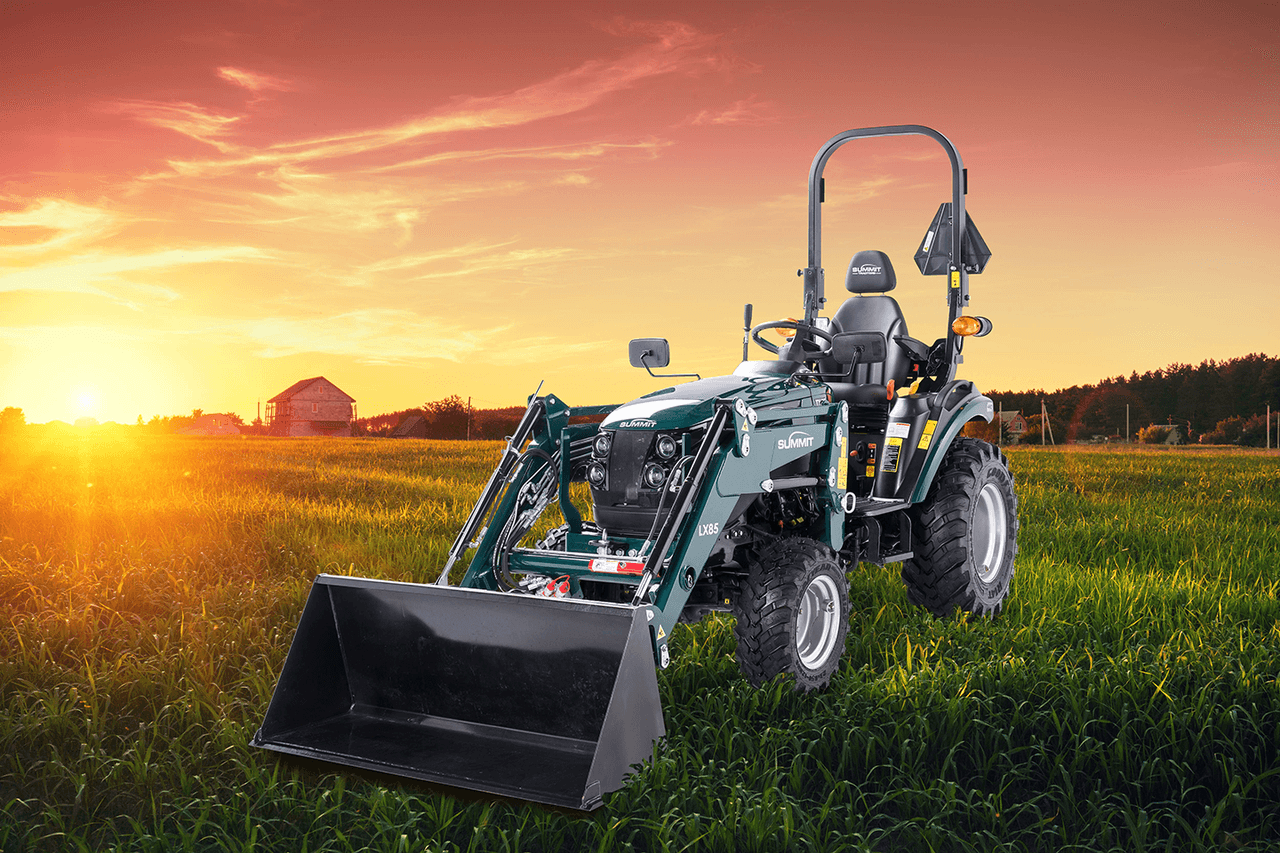

Summit Tractors TX25H photos





FAQ
Frequently asked questions
How powerful is the Summit Tractors TX25H?
The Summit Tractors TX25H has an engine power output of 24.7 hp. It is powered by a 3-cylinder engine displacing 80.4 ci.
What is the working weight of the Summit Tractors TX25H?
The operating weight of the Summit Tractors TX25H is approximately 3,406 lb.
What type of transmission does the Summit Tractors TX25H have?
The Summit Tractors TX25H uses a Hydrostatic transmission.
What hydraulics does the Summit Tractors TX25H have?
The Summit Tractors TX25H uses an Open Center hydraulic system.
What three-point hitch category does the Summit Tractors TX25H use?
The Summit Tractors TX25H has a Category I three-point hitch.
What routine service does the Summit Tractors TX25H need?
Regular maintenance for the Summit Tractors TX25H includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
